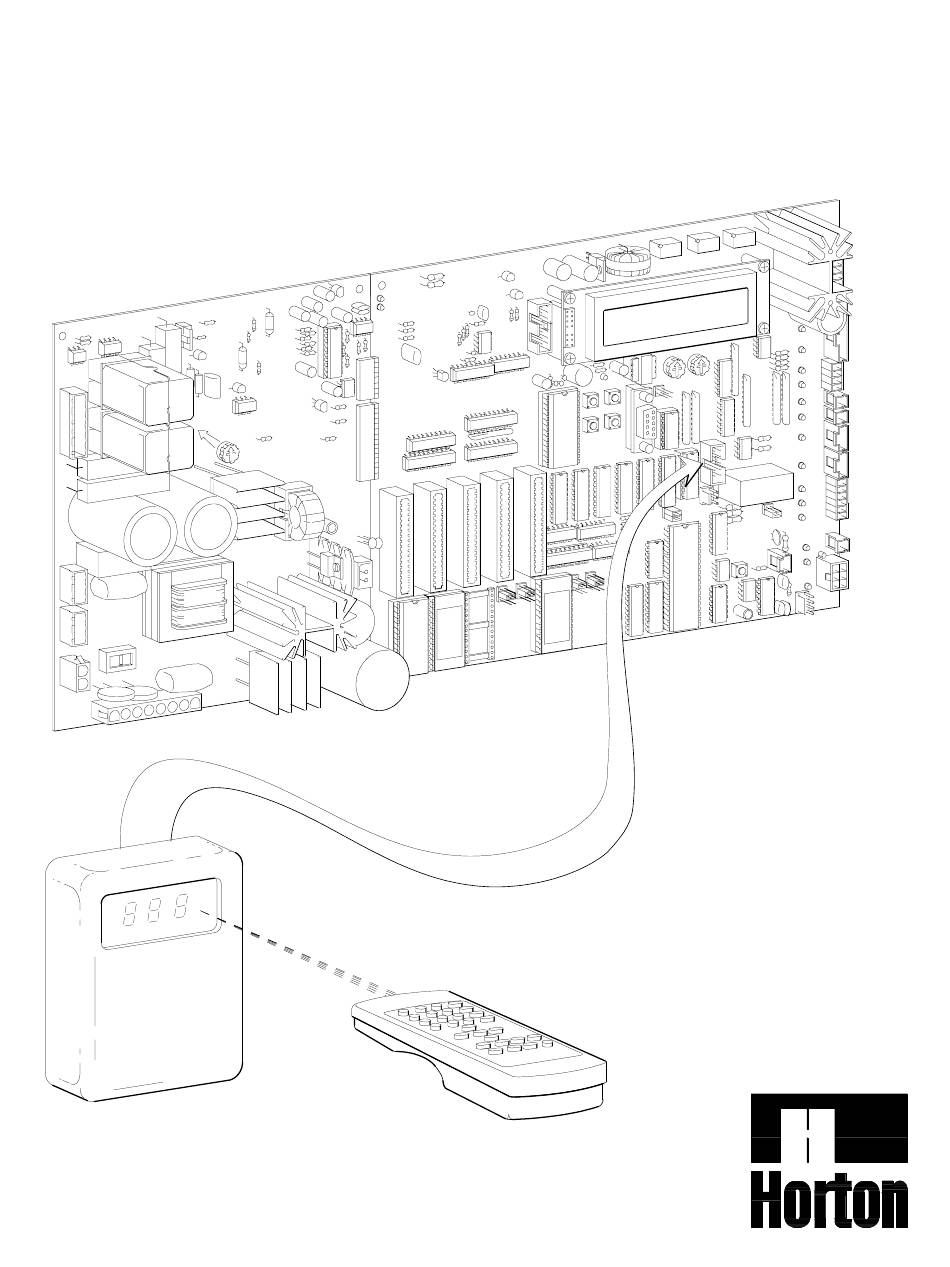

  • Page 1 C9150-1 Setup Instructions for 1-way Airport Security Revolving Doors 9.0070d1 H917, NOVEMBER, 2006 A U T O M A T I C S...
  • Page 2 INSTRUCTIONS TO INSTALLER -This door is to be installed by an experiencd installer, trained by Horton Automatics. -To ensure safe and proper operation, the door must be installed and adjusted to conform to Horton Automatics recommendations and all code requirements.

  • Page 3: Table Of Contents

    2. Basic setup (wiring reference switches)…………………………………………………………...H917.4 3. Basic setup (wiring slip ring assembly to the control)…………..……………………………….. H917.5 3A. Connecting sensors and mag locks to the C9150-1 control……………………………………..H917.5.1 3B. Connecting sensors and mag locks to E6042-1 board …………………………………………..H917.5.2 3C. C9800 auxiliary power supply and sensor connections………………………………………….H917.6 4.

  • Page 4: C9150 Control And Power Supply

    A. C9150 CONTROL AND POWER SUPPLY Alpha numeric display Connection for remote alpha JB5 must be numeric display in position: "B" For security doors Turn fully counter- clockwise POWER SUPPLY "A" For automatic doors Record JB 5 Motor & brake Down Control connections...

  • Page 5: Control Connections

    B. CONTROL CONNECTIONS Aux relay K4 (Parameter 40) (Sec 29) For mapping Aux relay K3 (Parameter 39) details Aux relay K2 (Parameter 38) Red (1) Speaker (Sec 8) Blk (2) Yel (1) Orn (2) Trailing nosing Blu (3) Brn (4) (Sec 10) Red (5) Grn (6)

  • Page 6: Basic Setup (Wiring Motor, Brake And Encoder)

    To the 1. BASIC SETUP(wiring motor,brake and encoder Wht (3) Brake, motor and encoder connections are control Channel B factory installed. Illustrations are for reference only Red (1) NOTE: Blk (4) +5VDC If the door runs backwards, when tested in section 6: Comm 4 3 2 1 -Check that the gear drive is not upside down.
  • Page 7 2. BASIC SETUP (wiring reference switch) C9150 CONTROL C9992 switch and harness TURN BREAKER OFF BEFORE CONNECTING WIRING Breaker Brn 1 +24 VDC Blk 2 Reference INDICATOR SETUP FOR 3-WING input switch Blu 3 1st Step comm Mount C9981-1 switch 120°...

  • Page 8: Basic Setup (Wiring Slip Ring Assembly To The Control)

    3. BASIC SETUP (wiring the slip ring assembly to the control) C9150 CONTROL Route all wiring through the strain relief SEE SECTION 3B For Aux power supply C8941-1 connections Slip ring assembly To C9800 Female aux power socket end Male pin end Breaker Blk (3 &...

  • Page 9: Connecting Sensors And Mag Locks To The C9150-1 Control

    Wing out of position switches on door panels Heel guard Note: TO SLOW:red sensor wires to green signal wire from Horton. TO STOP:red sensor wires are connected to black signal wire from Horton. From sensor BEA Wiring Grn = +24 VDC...
  • Page 10 C9115-1 Foot Sensor VISTA Sensor Sensor Note: C9118 TO SLOW:red sensor wires to green signal wire from Horton. Mag lock TO STOP:red sensor wires are connected to Foot E6222-2 black signal wire from Wiring typical for Horton. all wing panels...

  • Page 11: C9800 Auxiliary Power Supply And Sensor Connections

    3C. C9800 auxiliary power supply and sensor connections To CN 3 on the C9965 board C1069 C9150 control Jumper block if mag breakouts & C9800 are not used C7664 E6201-2 C1093-6 Orn (5) Blu (2) CN 3 +90V -90V COM 4 NC 4 NO 4 CORE...

  • Page 12: Basic Setup (Wiring Emergency Stop Switch, Fire Alarm, Lcp And Key Switch)

    4. BASIC SETUP (wiring emergency stop switch, fire alarm, LCP and key switch) To fire alarm system Fire alarm TURN BREAKER OFF system BEFORE CONNECTING WIRING (by others) Route all wiring To remote through the strain mode select relief To help switch (if used) (if used) Emergency stop switch shall be installed...
  • Page 13 5. INITIAL SETUP (introduction to diagnostics) Before proceeding 1 diagnostic should be performed. The following is an outline of performing that diagnostic. This diagnostic may be performed using the IR control and the LCP (Local Control Panel) or the MCP (Main Control Panel). The MCP will provide more information and can be used for reference even when using the remote / LCP.
  • Page 14 6. INITIAL SETUP (setup run) Before installing any additional devices, a setup run should be performed. The setup run sets factory default settings to all parameters, zeros all counters and sets safety sensitivity settings. Accessing the diagnostics from the infrared control. Accessing the diagnostics from the main control panel.
  • Page 15 7. INITIAL SETUP (setup run) Accessing the diagnostics from the infrared control. Accessing the diagnostics from the main control panel. COMPLETE SETUP (CON'T) MCP display LCP display Seeking + ref ..1 thu 4 REVERSE SPEED CURRENT -The door rotates through 3 quarterpoints at Peak I = 0.52 reverse speed to determine the maximum current STARTUP CURRENT...

  • Page 16: Basic Setup (Wiring Speakers)

    8. BASIC SETUP (wiring speakers) TURN BREAKER OFF BEFORE CONNECTING WIRING Improper adjustment of contrast can cause the display to look blank Adjust the volume to be able to hear the voices inside the Contrast Volume door. Adjust volume and contrast to 9:00 E6222 Speaker harness...

  • Page 17: Basic Setup

    9. BASIC SETUP (wiring motion detectors and lights) TURN BREAKER OFF TEST THE MOTECS Route all wiring BEFORE CONNECTING WIRING Turn on the power. through Have someone pass through each the strain relief of the the detction zones. C9150 control D12 will light for the entry and Red (1) Grn (2)
  • Page 18 5thStep 10. BASIC SETUP (nosing wiring) TEST THE NOSINGS -Turn the power on. -Push each leading nosing TURN BREAKER OFF LED D20 will come on. BEFORE CONNECTING WIRING -Push each trailing nosing E6238 Nosing harness LED D22 will come on is supplied with the control E6024 Nosing interface board accessories.
  • Page 19 11. Wiring, Airport user outputs (OPTIONAL) E6012 Output card E6008 Input card Terminal 1 NC (normally Closed) Terminal 1 Terminal 2 NC (normally Closed) C (Common) Terminal 2 Terminal 3 C (Common) NO (normally Open) Terminal 3 NO (normally Open) K2, K3 &...

  • Page 20: Basic Setup (Mat Installation)

    12. BASIC SETUP (mat installation) TURN BREAKER OFF BEFORE CONNECTING WIRING 7/8" Mounting studs NON SECURE CAUTION Do not drill into the 1 1/4" glass pocket 1st Step If the hole for the mat wire has not been pre-drilled - locate approx as shown.
  • Page 21 13. BASIC SETUP (LARCO mat installation) E6026 Mat interface board E6238 Mat harness TURN BREAKER OFF BEFORE CONNECTING WIRING is supplied with the control is supplied with the control accessories. accessories. Strip wires Wiring color code is shown for reference. Mount to gear drive support tube 1/4"...
  • Page 22 14. BASIC SETUP (testing) The following tests are designed to check all inputs and outputs without regard to mode. The tests are conducted in mode 1 (secure/motec) Plug in CN1 (motor and brake) and turn the breaker on. WALK TEST EXIT (mode 1) UN-AUTHORIZED ENTRY (mode 1) (If MCP does not read mode 1 ready...

  • Page 23: Diagnostics Chart 1 (Check Power Supply • Check Door Speed)

    15. DIAGNOSTICS CHART 1 ( See page H917.40 for quick ref. chart) SEE SECTION 5 FOR INTRODUCTION TO CONTROL SETUP Accessing the diagnostics from the infrared control. Accessing the diagnostics from the control itself. -The door must be inactive (in standby condition) -Point the IR remote at the LCP and press unlock -The red LED on the LCP display will flash - indicating -Press and hold the DOWN button while briefly...
  • Page 24 16. DIAGNOSTICS CHART 2 Accessing the diagnostics from the infrared control. Accessing the diagnostics from the control itself. CHECK MOTOR VOLTAGE AND CURRENT LCP display MCP display -Press 3 or "+" up "-" down *Diagnostics/Setup -Press UP Check motor(LCP=i)? -Press "?" -Press SET -Displays motor amperage UP DOWN...
  • Page 25 17. DIAGNOSTICS CHART 3 Accessing the diagnostics from the infrared control. Accessing the diagnostics from the control itself. ENCODER TEST LCP display MCP display -Press UP till -Press 6 or "+" up "-" down *Diagnostics/Setup diag. is reached DOWN Check encoder? -Press "?"...
  • Page 26 18. DIAGNOSTICS CHART 4 Accessing the diagnostics from the infrared control. Accessing the diagnostics from the control itself. LCP display MCP display VOICE -Press UP till *Diagnostics/Setup -Press 8 or "+" up "-" down diag. is reached Play/Setup Voices? DOWN RESET -Press "?"...
  • Page 27 19. DIAGNOSTICS CHART 5 CHECK STATISTICS LCP display MCP display -Press UP till *Diagnostics/Setup -Press 10 or "+" up "-" down diag. is reached Check Statistics? DOWN RESET -Press "?" -Press SET DOWN RESET -The code for the first statistic is displayed. -Each statistic is displayed along with its Entry card accepted corresponding value.
  • Page 28 20. DIAGNOSTICS CHART 6 14 Reserved Accessing the diagnostics from the infrared control. Accessing the diagnostics from the control itself. LEARN SAFETY LIMITS CAUTION: The door will move on its own when these routines (diagnostic 15 &16) are initiated! Use extreme caution to avoid entrapment. The C9150 control can measure the current draw of the door's motor and automatically set the "safety sensitivity"...
  • Page 29 21. DIAGNOSTICS CHART 7 Accessing the diagnostics from the infrared control. Accessing the diagnostics from the main control panel. COMPLETE SETUP CAUTION: The door will move on its own when this routine is initiated! use extreme coution to avoid entrapment. This diagnostics allows a complete control setup to be performed.

  • Page 30: Door Modes (Modes 0 Thru 3 For Park-N-Lock, Secure/Motec, Motec / Motec & Free Wheel)

    22. DOOR OPERATING MODES MODE CHART The door must be inactive (standby condition) to change the mode. The following chart shows the 4 modes that are always KEY SWITCH MODE SELECTION available. 3-Digit display LCP Local Control Panel MODE FUNCTION 3-Position momentary contact switch Park-N-Lock...

  • Page 31: Door Operating Modes (Using The Ir Remote)

    23. DOOR OPERATING MODES (using the ir remote) The door must be inactive (standby condition) to change the mode. 3-Digit display LCP Local Control Panel IR REMOTE CONTROL IR Sensor 0..9 numeric keys LED blinks when receiving signal from IR remote Scrolls up Lock The LCP and the remote control are...

  • Page 32: Parameters

    Parameters 1 thru 4 set the operating speed of the door during normal, reduced,Qpt and reverse run conditions . The selected value directly equals the motor voltage. Acceptable values are 25 and up - the door will not turn below 25 volts. Horton suggest a run speed of 4 RPM as per ANSI 156.27.
  • Page 33 25. PARAMETER CHART 2 Safety sens - forward / reduced / reverse / startup Parameters 6 thru 10 set the sensitivity to increased motor current caused by obstructions to the doors. The default values are set at 15 - this means that a safety stop will occur if the motor current exceeds 1.5amps During the control setup routine these values will be "tweaked"...
  • Page 34 26. PARAMETER CHART 3 Reduced speed delay Parameter13 (measured in seconds) Defines the time the door will run at reduced speed when the slow speed signal is received. Accessing parameters from the infrared control. Accessing parameters from the main control panel. MCP display LCP display Parameter 13...
  • Page 35 27. PARAMETER CHART 4 Reserved Thru Speed up warning Parameter 23 sets the number of warnings the door will issue when changing from reduced speed to to normal speed. Accessing parameters from the infrared control. Accessing parameters from the infrared control. Accessing parameters from the main control panel.
  • Page 36 28. PARAMETER CHART 5 Park - N - Lock warning Parameters 26 Defines the number of warning messages before the door will stop and lock when mode "0" is activated. Accessing parameters from the infrared control. Accessing parameters from the main control panel. MCP display LCP display Parameter 25...
  • Page 37 29. PARAMETER CHART 6 Relay (38)K2, (39)K3 & (40) K4 mapping Parameters 38, 39 and 40 set the function of relays K2, K3 and K4 on the motherboard. Accessing parameters from the infrared control. Accessing parameters from the main control panel. MCP display LCP display Parameter 38...

  • Page 38: Parameter Chart 7 (Remote Mode Select, Core Slow & Reduced Speed)

    30. PARAMETER CHART 7 44 thru Reserved Remote mode select When parameter 60 is turned on, the door is controlled by Aux A CN5 input -See parameter 42 & 43. Accessing parameters from the infrared control. Accessing parameters from the main control panel. MCP display LCP display Parameter 60...
  • Page 39 31. PARAMETER CHART 8 Diagnostic LCP Parameter 66 On - displays diagnostic information on LCP Accessing parameters from the main control panel. Accessing parameters from the infrared control. MCP display LCP display Parameter 66 -Press UP or -Press "+" up "-" down or the number keys DOWN to scroll to locate the desired parameter UP DOWN...
  • Page 40 32. PARAMETER CHART 9 Mat sensors only Parameter 88 defines the sensor inputs for security conditions. Accessing parameters from the main control panel. Accessing parameters from the infrared control. MCP display LCP display -Press UP or Parameter 88 -Press "+" up "-" down or the number keys DOWN to scroll DOWN to locate the desired parameter...
  • Page 41 33. PARAMETER CHART 10 Ignore reverse motion Parameter 91 tells the control to lockdown if the door is pushed in a direction opposite to the direction the motor is driving. Accessing parameters from the main control panel. Accessing parameters from the infrared control. MCP display LCP display -Press UP or...

  • Page 42: Trouble Shooting

    If trouble is found in the C9007-1 use this supplement to locate the specific part and replace only the defective part. HORTON AUTOMATICS WILL NO LONGER SERVICE THE 9007-1 AS A COMPLETE UNIT. The following test are conducted using publication H 917 (C9150-1 setup instructions) MOTOR TEST for VOLTAGE and CURRENT Note: See H915.7 to access the diagnostic setup.
  • Page 43 35. TROUBLE SHOOTING AND ADJUSTMENTS For Security revolver MOTOR, BRAKE AND ENCODER The following test are conducted using publication H 917 (C9150-1 setup instructions) MECHNICAL BRAKE ADJUSTMENTS ( THIS APPLIES TO THE DODGE BRAKE ONLY- THE WARNER IS NOT FIELD ADJUSTABLE Look through the cooling fins of the brake to see the gap between the disk and the magnent.

  • Page 44: Parameter Quick Reference Chart

    36. PARAMETER QUICK REFERENCE CHART (See sections 24 thru 33 for parameter setup) PARAMETER FUNCTION DEFAULT Comments SECTION Speed - Normal The selected value = the motor voltage (see diagnostics 2 for run speed) Speed - Reduced Speed - Qpt. Speed-Reverse Reserved Safety sens - Normal...

  • Page 45: Diagnostics Quick Reference Chart

    37. DIAGNOSTICS QUICK REFERENCE CHART (See sec. 15 thru 21 for diag. setup) DIAG FUNCTION Comments SECTION Check power supply Displays DCV output of the power supply to operate the motor & brake Check door speed LCP displays door revolutions MCP displays motor voltage & RPM Check motor voltage &...

  • Page 46: Display Codes

    39. C9150-1 LCP DISPLAY CODES LCP Display Description Action needed All clear Caution Core Slow Signal from center shaft causing Slow condition Core Stop Signal from center shaft causing Stop condition Drum Clear Emergency Stop Fire Alarm Reset Fire Alarm contacts...
