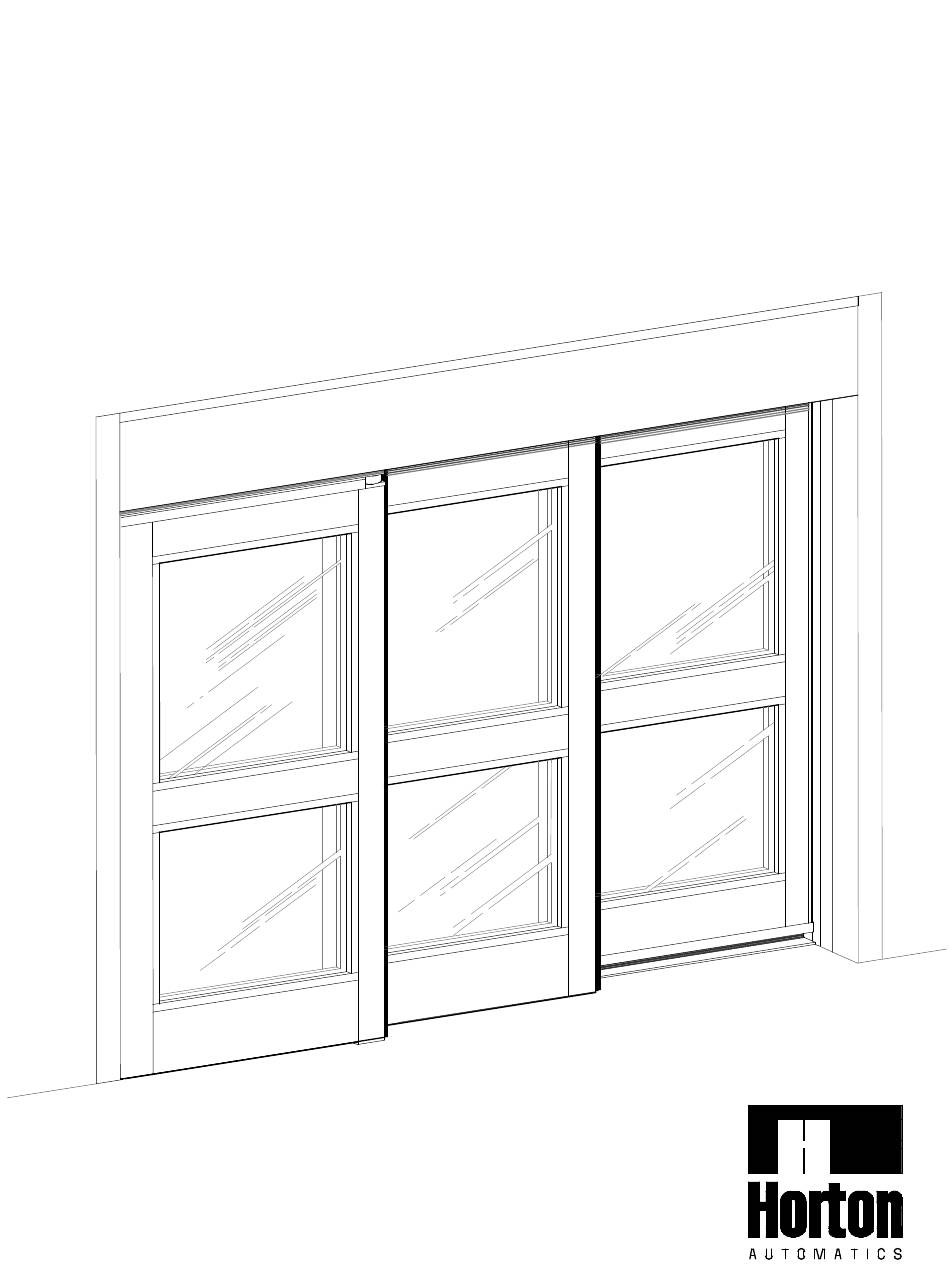

- Page 1 Series 2000T Linear Drive Telescoping Door Operator Installation Instructions 1.126d G202, FEB 2001...
-
Page 2: Table Of Contents
•This door is to be installed by a trained and experienced installer with knowledge of local codes and ANSI A156.10 standards for power operated doors. •To ensure safe and proper operation, the door must be installed and adjusted to conform to Horton Automatics recommendations, all code requirements and ANSI A156.10. -
Page 3: Installing Frame
G202.2 3. INSTALLING FRAME If a recessed threshold is required, this should be done prior to frame installation. Take care that the frame is not racked. Wood shingles will be needed to shim the unit. All the fasteners shown below are provided with each unit. -
Page 4: Installing Floor Guides
G202.3 4. INSTALLING FLOOR GUIDES Bottom guides will vary with the unit type. The 3 basic types are shown below. The C315 / C386-1 filler is used with threshold only. NOTE: Jambs are not recessed SO Pivot secure similar to surface mounted track. -
Page 5: Installing Sx Panels (Sx-Sx-So)
5. INSTALLING SX PANELS (SX-SX-SO) Note orientation of header and jambs 1st Step Remove face plates 6th Step Adjust if required. Loosen mounting bolts and adjust height screws. 4th Step Doors should move freely Secure the door panels with binding or draging. to the carriages with bolts provided. -
Page 6: Installing So Panel (Sx-Sx-So)
6. INSTALLING SO PANEL (SX-SX-SO) NOTE: When installing face plates Be sure to use the #6 screws provided. 1st Step Install the faceplate on the exterior side. CAUTION ! Closer arm is spring loaded. Take precautions to avoid injury. 4th Step Connect prewired safety beam harness to harness in header. -
Page 7: Installing Panels (Sx-X-O)
7. INSTALLING PANELS (SX-X-O) 10th Step Connect power arm 1st Step if it is not already 12th step NOTE: attached. Mount interior Adjust if required. When installing face plates face plate at Loosen mounting bolts be sure to use the #6 screws fixed panel only. -
Page 8: Installing Panels (X-X-O)
8. INSTALLING PANELS (X-X-O) 1st Step Replace exterior face plate at fixed panel only. 8th Step NOTE: Connect power arm. When installing face plates (This may already be sure to use the #6 screws be connected) provided. 3rd Step Place wheel carriages on the track 6th Step Mount panel to... -
Page 9: Typical Glazing And Squaring
G202.8 9. TYPICAL GLAZING AND SQUARING Door panels may be glazed laying down flat or installed in the frame. The latter method is referred to below. 2nd Step Use the leveling screw to bring the panels to The "SX" is spring loaded exact square. -
Page 10: Automatic Locking (Optional)
NOTE:Never decrease the sensitivity or pattern so it will not detect slow moving traffic. •The motion detector time delay should be set to a minimum of two seconds cumulative with C2150 control before the door begins to close. Three seconds or more is recommended by Horton Automatics. 13. MOTION SENSOR PREP... -
Page 11: Mechanical Parts - Series 2000T
14. MECHANICAL PARTS - SERIES 2000T C887 C404 C267R (2)C587 (2)C611-1 C2211 C617 (2)C2118 (2)C404 C2151 C2148 (2)C2154 C614 (2)C98 C2874 Slow chain & cable C2143-2 assembly asembly C2131-1 (2)C2148 C613 C587 fast chain & cable (2)C404 assembly C636-1 (2)C2118 C2248 (2)C2149 C543... -
Page 12: Safety Considerations
NOTE: After adjustments are completed be sure the faceplate is secured with screws into the support brackets. THRESHOLD PROTECTION • All sliding doors should be installed with a minimum of two presence detectors in the threshold area. Horton Automatics sliding doors are supplied with dual safety beams.
