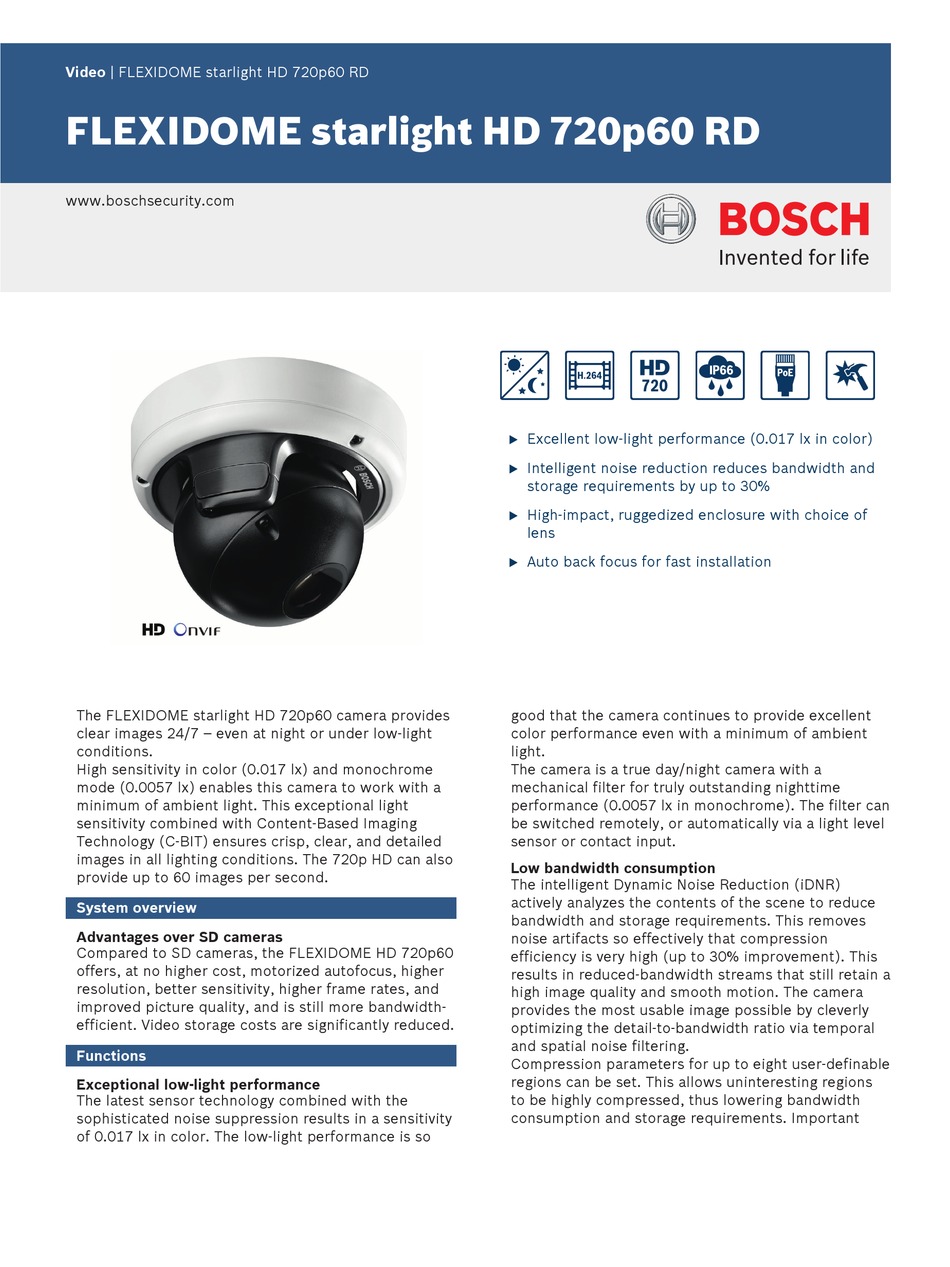

Bosch NDN-733-V03IP Manual

Video | FLEXIDOME starlight HD 720p60 RD
FLEXIDOME starlight HD 720p60 RD
www.boschsecurity.com
The FLEXIDOME starlight HD 720p60 camera provides
clear images 24/7 – even at night or under low-light
conditions.
High sensitivity in color (0.017 lx) and monochrome
mode (0.0057 lx) enables this camera to work with a
minimum of ambient light. This exceptional light
sensitivity combined with Content-Based Imaging
Technology (C-BIT) ensures crisp, clear, and detailed
images in all lighting conditions. The 720p HD can also
provide up to 60 images per second.
System overview
Advantages over SD cameras
Compared to SD cameras, the FLEXIDOME HD 720p60
offers, at no higher cost, motorized autofocus, higher
resolution, better sensitivity, higher frame rates, and
improved picture quality, and is still more bandwidth-
efficient. Video storage costs are significantly reduced.
Functions
Exceptional low-light performance
The latest sensor technology combined with the
sophisticated noise suppression results in a sensitivity
of 0.017 lx in color. The low-light performance is so
Excellent low-light performance (0.017 lx in color)
u
Intelligent noise reduction reduces bandwidth and
u
storage requirements by up to 30%
High-impact, ruggedized enclosure with choice of
u
lens
Auto back focus for fast installation
u
good that the camera continues to provide excellent
color performance even with a minimum of ambient
light.
The camera is a true day/night camera with a
mechanical filter for truly outstanding nighttime
performance (0.0057 lx in monochrome). The filter can
be switched remotely, or automatically via a light level
sensor or contact input.
Low bandwidth consumption
The intelligent Dynamic Noise Reduction (iDNR)
actively analyzes the contents of the scene to reduce
bandwidth and storage requirements. This removes
noise artifacts so effectively that compression
efficiency is very high (up to 30% improvement). This
results in reduced-bandwidth streams that still retain a
high image quality and smooth motion. The camera
provides the most usable image possible by cleverly
optimizing the detail-to-bandwidth ratio via temporal
and spatial noise filtering.
Compression parameters for up to eight user-definable
regions can be set. This allows uninteresting regions
to be highly compressed, thus lowering bandwidth
consumption and storage requirements. Important
