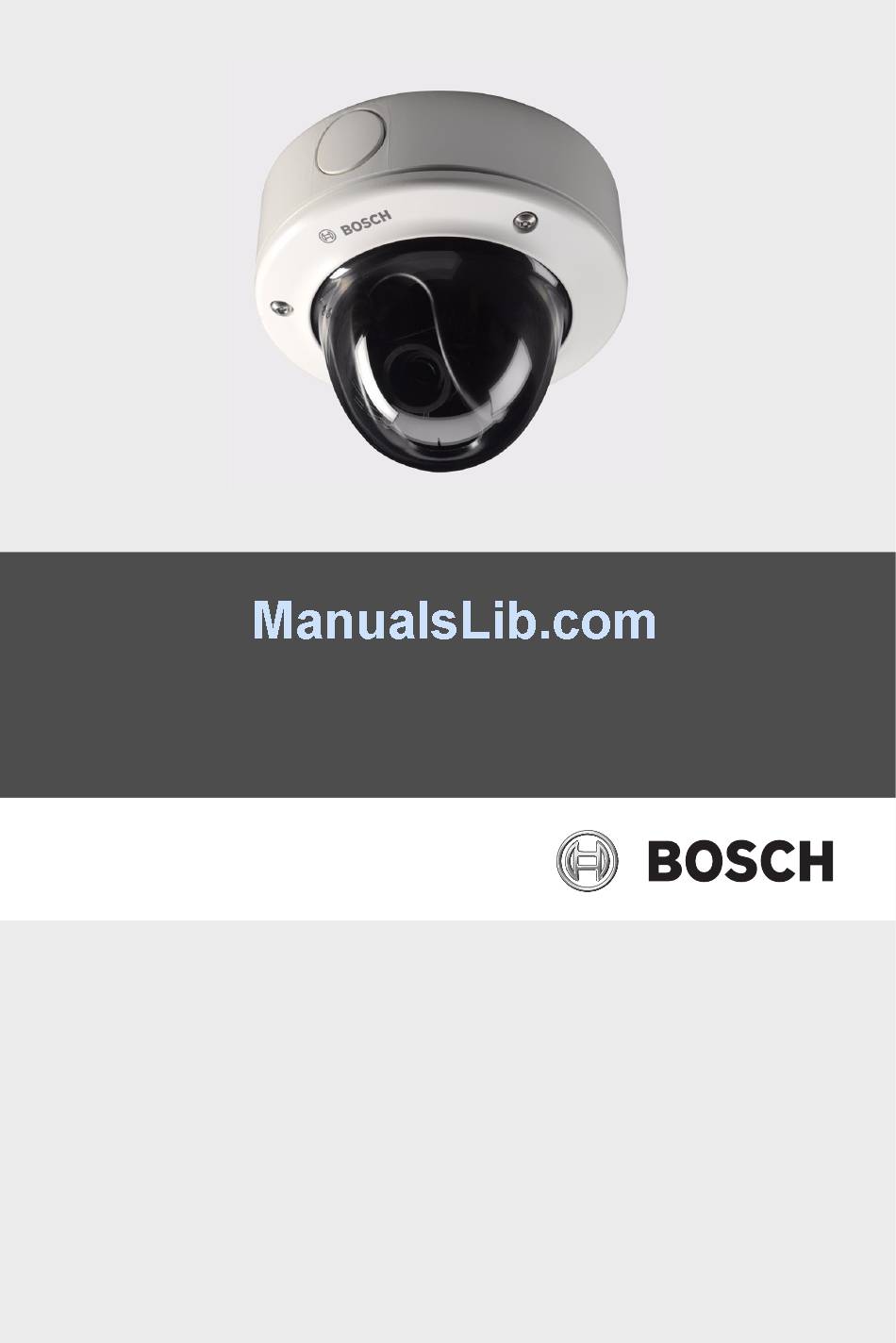

- Page 1 FlexiDomeHD 720p IP Camera NDN-921 Installation and Operation Manual...
-
Page 3: Table Of Contents
Tamper detection and motion detectors 3.1.8 Video encoding 3.1.9 Multicast 3.1.10 Power-over-Ethernet 3.1.11 Encryption 3.1.12 Receiver 3.1.13 Recording 3.1.14 Snapshots 3.1.15 Backup 3.1.16 Configuration Operation with external systems Bosch Security Systems Installation and Operation Manual AR18-10-B013 | v1.52 | 2011.06... - Page 4 Browser connection System requirements Establishing the connection 7.2.1 Password protection in camera Protected network Connection established 7.4.1 LIVEPAGE 7.4.2 RECORDINGS 7.4.3 SETTINGS Basic Mode Basic Mode menu tree AR18-10-B013 | v1.52 | 2011.06 Installation and Operation Manual Bosch Security Systems...
-
Page 5: Flexidomehd 720P Ip Camera Table Of Contents | En
Mode 9.4.2 9.4.3 Shutter/AGC 9.4.4 Day/night 9.4.5 Enhance 9.4.6 Color 9.4.7 Encoder Profile 9.4.8 Encoder Streams 9.4.9 Privacy Masks 9.4.10 Audio 9.4.11 Installer Menu Recording 9.5.1 Storage Management Bosch Security Systems Installation and Operation Manual AR18-10-B013 | v1.52 | 2011.06... - Page 6 10.1 Livepage 10.1.1 Processor load 10.1.2 Image selection 10.1.3 Digital I/O 10.1.4 System Log / Event Log 10.1.5 Saving snapshots 10.1.6 Recording video sequences 10.1.7 Running recording program AR18-10-B013 | v1.52 | 2011.06 Installation and Operation Manual Bosch Security Systems...
- Page 7 11.1 Function test 11.2 Resolving problems 11.3 Customer service Maintenance 12.1 Testing the network connection 12.2 Repairs 12.2.1 Transfer and disposal Technical Data 13.1 Specifications 13.1.1 Accessories Glossary Bosch Security Systems Installation and Operation Manual AR18-10-B013 | v1.52 | 2011.06...
-
Page 8: Safety
If not avoided, this could result in minor or moderate bodily injury. CAUTION! Low risk: Indicates a potentially hazardous situation. If not avoided, this could result in property damage or risk of damage to the unit. AR18-10-B013 | v1.52 | 2011.06 Installation and Operation Manual Bosch Security Systems... -
Page 9: Important Safety Instructions
Install in accordance with the manufacturer's instructions in accordance with applicable local codes. Use only attachments/accessories specified by the manufacturer. Equipment change or modification could void the user's guarantee or authorization agreement. Bosch Security Systems Installation and Operation Manual AR18-10-B013 | v1.52 | 2011.06... -
Page 10: Connection In Applications
The Low Voltage power supply unit must comply with EN/UL 60950. The power supply must be a SELV-LPS unit or a SELV - Class 2 unit (Safety Extra Low Voltage - Limited Power Source). AR18-10-B013 | v1.52 | 2011.06 Installation and Operation Manual Bosch Security Systems... -
Page 11: Fcc & Ices Compliance
Federal Communications Commission, helpful: How to Identify and Resolve Radio-TV Interference Problems. This booklet is available from the U.S. Government Printing Office, Washington, DC 20402, Stock No. 004-000-00345-4. Bosch Security Systems Installation and Operation Manual AR18-10-B013 | v1.52 | 2011.06... -
Page 12: Microsd Cards
CERTIFICATIONS WHATSOEVER REGARDING THE PERFORMANCE OR RELIABILITY OF ANY SECURITY OR SIGNALING RELATED FUNCTIONS OF THIS PRODUCT. Disposal - Your Bosch product was developed and manufactured with high-quality material and components that can be recycled and reused. This symbol means that... -
Page 13: Bosch Notices
CAUTION! Video loss is inherent to digital or network video recording; therefore, Bosch Security Systems cannot be held liable for any damage that results from missing video information on local storage microSD card within the camera or in a central storage system. -
Page 14: Copyrights
Digital Equipment Corporation not be used in advertising or publicity pertaining to distribution of the software without specific, written prior permission. This software is based in part on the work of the Independent JPEG Group. AR18-10-B013 | v1.52 | 2011.06 Installation and Operation Manual Bosch Security Systems... -
Page 15: Introduction
Six pre-programmed operation modes – Adaptive dynamic noise reduction – Impact-resistant dome (> IK10) – Tamper-resistant housing – Enhanced video motion detection – Video and data transmission over IP data networks Bosch Security Systems Installation and Operation Manual AR18-10-B013 | v1.52 | 2011.06... - Page 16 – Fast, convenient configuration using the integrated Web server and a browser – Firmware update through flash memory – Convenient upload and download of configuration data AR18-10-B013 | v1.52 | 2011.06 Installation and Operation Manual Bosch Security Systems...
-
Page 17: System Information
HD I-frame only stream) together with an M-JPEG stream. These four streams facilitate bandwidth-efficient viewing and recording options as well as integration with third-party video management systems. Bosch Security Systems Installation and Operation Manual AR18-10-B013 | v1.52 | 2011.06... -
Page 18: Onvif (Open Network Video Interface Forum)
Power for the camera can be supplied via a Power-over- Ethernet compliant network cable connection. With this configuration, only a single cable connection is required to view, power, and control the camera. AR18-10-B013 | v1.52 | 2011.06 Installation and Operation Manual Bosch Security Systems... -
Page 19: Encryption
SSL encryption protocol. With an additional license, the user data itself can be encrypted. 3.1.12 Receiver Computers with decoding software such as the Bosch Video Client or the Bosch Video Management System, or computers with the Microsoft Internet Explorer web browser installed, can be used as receivers. -
Page 20: Operation With External Systems
| System Information FlexiDomeHD 720p IP Camera Operation with external systems The camera can be used with a variety of Bosch software and hardware systems: – Bosch Video Management System – Bosch Video Client – Bosch Recording Station –... - Page 21 It can use alarm inputs to trigger actions and, when motion detection Motion+ is active, can record the relevant cells, making intelligent motion detection possible. Bosch Security Systems Installation and Operation Manual AR18-10-B013 | v1.52 | 2011.06...
-
Page 22: Planning
– DVD ROM (mini) – Manual – System requirements – Bosch Video Client – Quick install instructions – Safety instructions If equipment has been damaged during shipment, repack it in the original packaging and notify the shipping agent or supplier. -
Page 23: System Requirements
Microsoft Internet Explorer web browser version 7.0 or later – Computer with Windows XP/Vista operating system, network access and reception software, for example Bosch Video Client, Bosch Video Management System, or Bosch Recording Station The minimum PC requirements are: –... -
Page 24: Installation
The camera/housing unit consists of the following parts: Surface mount box (certain models only) Camera module and mounting base Inner liner (with sealing ring) Dome with trim ring AR18-10-B013 | v1.52 | 2011.06 Installation and Operation Manual Bosch Security Systems... - Page 25 Loosen the three Phillips screws. Remove the single screw holding the camera module in place (no keyhole). Rotate the camera module to remove it from the remaining two screws. Bosch Security Systems Installation and Operation Manual AR18-10-B013 | v1.52 | 2011.06...
-
Page 26: Mounting The Unit
Use the surface mount box as a template for surface installation; use the paper template for flush installation. AR18-10-B013 | v1.52 | 2011.06 Installation and Operation Manual Bosch Security Systems... -
Page 27: Surface Mount
Attach the conduit to the surface mount box. Attach the surface mount box to the surface. Suspend the camera base from the plastic hook inside the surface mount box until the connections are made. Bosch Security Systems Installation and Operation Manual AR18-10-B013 | v1.52 | 2011.06... -
Page 28: Flush Mount
| Installation FlexiDomeHD 720p IP Camera 5.2.2 Flush mount 57.6 (2.27) 57.6 (2.27) PCD: 133 (5.25) 111 (4.4) Figure 1 Flush mounting AR18-10-B013 | v1.52 | 2011.06 Installation and Operation Manual Bosch Security Systems... -
Page 29: Connections
Connect the power wires (red+ , brown-) to the power supply connector. Connect the earth wire (yellow/green) from the camera to the system earth of the installation to ensure correct EMC/RFI and safety protection. Bosch Security Systems Installation and Operation Manual AR18-10-B013 | v1.52 | 2011.06... - Page 30 2.4 V minimum. – Refer to the cable tree table to identify the wire colors for connecting the alarm input. – Configurable as active low or active high. AR18-10-B013 | v1.52 | 2011.06 Installation and Operation Manual Bosch Security Systems...
-
Page 31: Mount The Camera
For surface mounted units, secure the camera module mounting base to the surface mounting box with the three supplied screws. For flush mounted units, secure the camera module mounting base to the ceiling or wall. Bosch Security Systems Installation and Operation Manual AR18-10-B013 | v1.52 | 2011.06... -
Page 32: Microsd Card Slot
This is useful to restore the default IP address or to restore a previous version of the firmware if uploading a new version fails. AR18-10-B013 | v1.52 | 2011.06 Installation and Operation Manual Bosch Security Systems... -
Page 33: Camera Positioning
BOTTOM on the housing. The camera module position can be adjusted along three axes. When adjusting the camera position ensure that the picture Bosch Security Systems Installation and Operation Manual AR18-10-B013 | v1.52 | 2011.06... -
Page 34: Focal Length And Focus
Readjust the focal length if necessary. Repeat these two adjustments until the desired view is in focus. Tighten both screws. Close the Len Wizard. Remove the adjustment cap from the lens. AR18-10-B013 | v1.52 | 2011.06 Installation and Operation Manual Bosch Security Systems... -
Page 35: Closing The Unit
Align the tamper-resistant screws in the trim ring with the threaded ends in the mounting base. Use the supplied special screwdriver bit to tighten the three tamper-resistant screws. Bosch Security Systems Installation and Operation Manual AR18-10-B013 | v1.52 | 2011.06... -
Page 36: Camera Set-Up
Use this mode if the camera is viewing a scene lit by infrared light. Note: Although the same user settings may have been made, the camera may still behave differently in different modes. AR18-10-B013 | v1.52 | 2011.06 Installation and Operation Manual Bosch Security Systems... -
Page 37: Day/Night Switching
There are four different methods of controlling the IR filter: – via an alarm input, – automatically, based on the observed light levels, or – as part of the programmable mode profile. Bosch Security Systems Installation and Operation Manual AR18-10-B013 | v1.52 | 2011.06... -
Page 38: Browser Connection
(or via the supplied Configuration Manager). The configuration options using the menu system of the camera itself are limited to setting up the lens and network. Note: The camera can also be configured using the Bosch Video Management System. System requirements –... -
Page 39: Establishing The Connection
If the connection is not established, the maximum number of possible connections may already have been reached. Depending on the device and network configuration, up to 25 web browsers, or 50 Bosch Video Client or Bosch Video Management System connections are supported. 7.2.1... -
Page 40: Connection Established
7.4.2 RECORDINGS Click RECORDINGS in the application title bar to open the playback page. Refer to Section 10 Operation via the browser, page 112 for more information. AR18-10-B013 | v1.52 | 2011.06 Installation and Operation Manual Bosch Security Systems... - Page 41 Section 9 Advanced Mode, page 47 for more information on advanced settings. Note: It is recommended that only expert users or system administrators use the Advanced Mode. Bosch Security Systems Installation and Operation Manual AR18-10-B013 | v1.52 | 2011.06...
-
Page 42: Basic Mode
Device time settings are lost after 1 hour without power. Note: When entering names do not use any special characters, for example &. Special characters are not supported by the internal recording management system. AR18-10-B013 | v1.52 | 2011.06 Installation and Operation Manual Bosch Security Systems... -
Page 43: Device Access
Define and change a separate password for each level while logged in as service or if the device is not protected by a password. Enter the password (19 characters maximum) for the selected level. Bosch Security Systems Installation and Operation Manual AR18-10-B013 | v1.52 | 2011.06... -
Page 44: Date/Time
RFC 868 protocol. Note: It is important to ensure that the date/time is correct for recording. An incorrect date/time setting could prevent correct recording. AR18-10-B013 | v1.52 | 2011.06 Installation and Operation Manual Bosch Security Systems... -
Page 45: Network
On to activate the automatic acceptance of DHCP-assigned IP addresses. Note: Certain applications (for example, Bosch Video Management System) use the IP address for the unique assignment of the device. If using these applications, the DHCP server must... -
Page 46: Encoder
This page provides general information on the hardware and firmware system, including version numbers. No items can be changed on this page but they can be copied for information purposes when troubleshooting. AR18-10-B013 | v1.52 | 2011.06 Installation and Operation Manual Bosch Security Systems... -
Page 47: Advanced Mode
Clicking Set saves only the settings in the current window. Changes in any other windows are ignored. Click SETTINGS in the applications title bar to close the window without saving the changes made. Bosch Security Systems Installation and Operation Manual AR18-10-B013 | v1.52 | 2011.06... -
Page 48: General
– user is the middle authorization level. This user can operate the device, play back recordings, and also control a camera but cannot change the configuration. AR18-10-B013 | v1.52 | 2011.06 Installation and Operation Manual Bosch Security Systems... - Page 49 The new password is only saved after clicking Set. Therefore, click Set immediately after entering and confirming the password, even if assigning a password at another level. Bosch Security Systems Installation and Operation Manual AR18-10-B013 | v1.52 | 2011.06...
-
Page 50: Date/Time
Click Generate to fill the table with the preset values from the camera. Select the region or the city which is closest to the system's location from the list box below the table. AR18-10-B013 | v1.52 | 2011.06 Installation and Operation Manual Bosch Security Systems... -
Page 51: Display Stamping
Top, at the Bottom, or at a position of choice using the Custom option, or it can be set to Off for no overlay information. Bosch Security Systems Installation and Operation Manual AR18-10-B013 | v1.52 | 2011.06... - Page 52 Select On for the transmitted video images to be watermarked. After activation, all images are marked with an icon. The icon indicates if the sequence (live or saved) has been manipulated. AR18-10-B013 | v1.52 | 2011.06 Installation and Operation Manual Bosch Security Systems...
-
Page 53: Web Interface
Enter the path for a suitable image for the device logo in this field. The image can be stored on a local computer, a local network, or at an Internet address. Bosch Security Systems Installation and Operation Manual AR18-10-B013 | v1.52 | 2011.06... -
Page 54: Livepage Functions
For example, in Motion+ mode, the sensor areas for motion detection are marked. Uncheck the box to hide the metadata on the Livepage video. AR18-10-B013 | v1.52 | 2011.06 Installation and Operation Manual Bosch Security Systems... -
Page 55: Logging
Select this option to save system messages in a text file on the local computer. This file can be viewed, edited, and printed with any text editor or standard office software. Bosch Security Systems Installation and Operation Manual AR18-10-B013 | v1.52 | 2011.06... - Page 56 | Advanced Mode FlexiDomeHD 720p IP Camera File for system log Enter the path for saving the system log here. If necessary, click Browse to find a suitable folder. AR18-10-B013 | v1.52 | 2011.06 Installation and Operation Manual Bosch Security Systems...
-
Page 57: Camera
Traffic Capture high-speed objects using default shutter in variable lighting conditions. Low light Provide extra enhancement, such as AGC and SensUp to make usable pictures in low-light conditions. Bosch Security Systems Installation and Operation Manual AR18-10-B013 | v1.52 | 2011.06... - Page 58 Select a mode to copy the current mode to. Restore Mode Defaults Click to restore the factory defaults. A confirmation screen appears. Allow 5 seconds for the camera to optimize the picture after a mode reset. AR18-10-B013 | v1.52 | 2011.06 Installation and Operation Manual Bosch Security Systems...
-
Page 59: Alc
In AES mode, the camera tries to maintain the selected shutter speed as long as the light level of the scene is high enough. In Fixed mode, select the shutter speed. Bosch Security Systems Installation and Operation Manual AR18-10-B013 | v1.52 | 2011.06... - Page 60 Selects the gain setting for Fixed gain operation (0 is no gain). Actual gain Displays the actual AGC value from the camera to help compare gain level with lighting levels and picture performance. AR18-10-B013 | v1.52 | 2011.06 Installation and Operation Manual Bosch Security Systems...
-
Page 61: Day/Night
– Motion: the camera gives sharp images without motion blur as long as the light level permits (it switches to monochrome earlier than it would with Color priority). Bosch Security Systems Installation and Operation Manual AR18-10-B013 | v1.52 | 2011.06... - Page 62 IR illumination levels. Select this mode for IR (730 to 940 nm) light sources and for scenes with grass and green foliage. – Normal: the camera optimizes contrast in mono applications with visible light illumination. AR18-10-B013 | v1.52 | 2011.06 Installation and Operation Manual Bosch Security Systems...
-
Page 63: Enhance
This may cause some motion blur on exceptionally fast moving objects immediately in front of the camera. This can be corrected by widening the field of view or selecting Off. Bosch Security Systems Installation and Operation Manual AR18-10-B013 | v1.52 | 2011.06... -
Page 64: Color
Manual (-50 to +50): adjusts the Green gain. It is only necessary to change the white point offset for special scene conditions. Saturation Adjusts the color saturation; -15 gives a monochrome image. AR18-10-B013 | v1.52 | 2011.06 Installation and Operation Manual Bosch Security Systems... -
Page 65: Encoder Profile
CIF resolution for connections at 1500 kbps maximum – CIF resolution for connections at 500 kbps maximum – ISDN (2B) CIF resolution for connections at 100 kbps maximum Bosch Security Systems Installation and Operation Manual AR18-10-B013 | v1.52 | 2011.06... - Page 66 Encoding interval The Encoding interval slider determines the interval at which images are encoded and transmitted. This can be particularly AR18-10-B013 | v1.52 | 2011.06 Installation and Operation Manual Bosch Security Systems...
- Page 67 This setting sets the image quality of the I-frames. Select Auto to ensure that the maximum bit rate is not exceeded. Auto automatically changes the I-frame quality to the settings for the P-frame image quality. Bosch Security Systems Installation and Operation Manual AR18-10-B013 | v1.52 | 2011.06...
- Page 68 51. The encoder delivers the best possible quality within this control range while maintaining the maximum bit rate. Default Click Default to return the profile to the factory default values. AR18-10-B013 | v1.52 | 2011.06 Installation and Operation Manual Bosch Security Systems...
-
Page 69: Encoder Streams
Set the parmeters for the M-JPEG stream. – Select the Max. frame rate in images per second (IPS). – The Picture quality slider allows adjustment of the M-JPEG image quality from Low to High. Bosch Security Systems Installation and Operation Manual AR18-10-B013 | v1.52 | 2011.06... -
Page 70: Privacy Masks
80 kbps to 640 Kbps, depending on type of audio compression selected, for each connection. If you do not want any audio data to be transmitted, select Off. AR18-10-B013 | v1.52 | 2011.06 Installation and Operation Manual Bosch Security Systems... -
Page 71: Installer Menu
– The main window zooms in on this area. Adjust the lens. Click Reset to return the shaded area to its default size and position. Bosch Security Systems Installation and Operation Manual AR18-10-B013 | v1.52 | 2011.06... - Page 72 Click Restore all defaults to restore the factory defaults for the camera. A confirmation screen appears. Allow 5 seconds for the camera to optimize the picture after a mode reset. AR18-10-B013 | v1.52 | 2011.06 Installation and Operation Manual Bosch Security Systems...
-
Page 73: Recording
A Video Recording Manager (VRM) can control all recording when accessing an iSCSI system. The VRM is an external program for configuring recording tasks for video servers. For further information, contact your local customer service at Bosch Security Systems. 9.5.1 Storage Management Device manager... - Page 74 Local Media tab to display the applicable storage media in the overview. In the Storage overview section, double-click the required storage medium, an iSCSI LUN or one of the other AR18-10-B013 | v1.52 | 2011.06 Installation and Operation Manual Bosch Security Systems...
- Page 75 Click Edit below the list. A new window opens. Click Formatting to delete all recordings in the storage medium. Click OK to close the window. Bosch Security Systems Installation and Operation Manual AR18-10-B013 | v1.52 | 2011.06...
- Page 76 Click a storage medium in the Managed storage media list to select it. Click Remove below the list. The storage medium is deactivated and removed from the list. AR18-10-B013 | v1.52 | 2011.06 Installation and Operation Manual Bosch Security Systems...
-
Page 77: Recording Profiles
– Off: no automatic recording takes place. In the Stream list box, select Stream 1, Stream 2 or I-frames only for standard recordings. Bosch Security Systems Installation and Operation Manual AR18-10-B013 | v1.52 | 2011.06... -
Page 78: Retention Time
4CIF for complete frame rate and high image quality. Enter the required retention time in hours or days for each recording. Recording 1 corresponds to Stream 1; Recording 2 corresponds to Stream 2. AR18-10-B013 | v1.52 | 2011.06 Installation and Operation Manual Bosch Security Systems... -
Page 79: Recording Scheduler
Click the date to be deleted. Click OK. The selection is removed from the table and the window is closed. Repeat for any other dates to be deleted. Bosch Security Systems Installation and Operation Manual AR18-10-B013 | v1.52 | 2011.06... -
Page 80: Recording Status
The graphic indicates the recording activity. An animated graphic is seen when recording is taking place. 9.5.5 Recording Status Details of the recording status are displayed here for information. These settings cannot be changed. AR18-10-B013 | v1.52 | 2011.06 Installation and Operation Manual Bosch Security Systems... -
Page 81: Alarm
Only ten passwords can be defined here. Define a general password if more than ten connections are required, for example, when connections are initiated by a controlling Bosch Security Systems Installation and Operation Manual AR18-10-B013 | v1.52 | 2011.06... - Page 82 | Advanced Mode FlexiDomeHD 720p IP Camera system such as the Bosch Video Client or the Bosch Video Management System. The camera connects to all remote stations protected by the same general password. To define a general password: Select 10 in the Number of destination IP address list box.
- Page 83 Select On to automatically re-established a connection to one of the previously specified IP addresses after each reboot, connection breakdown, or network failure. Audio Select On to transmit the audio stream with an alarm connection. Bosch Security Systems Installation and Operation Manual AR18-10-B013 | v1.52 | 2011.06...
-
Page 84: Video Content Analyses (Vca)
Select a VCA configuration and make the required settings. If necessary, click the Default button to return all settings to their default values. AR18-10-B013 | v1.52 | 2011.06 Installation and Operation Manual Bosch Security Systems... -
Page 85: Vca Configuration- Profiles
No further alarm is triggered during the aggregation time. The post-alarm time set for alarm recordings only starts once the aggregation time has expired. Bosch Security Systems Installation and Operation Manual AR18-10-B013 | v1.52 | 2011.06... - Page 86 Note: Additional analysis algorithms with comprehensive functions, such as IVMD and IVA, are available from Bosch Security Systems. Motion detector Motion detection is available for the Motion+ analysis type. For the detector to function, the following conditions must be met: –...
- Page 87 Right-click any fields to deactivate. Click OK to save the configuration. Click the close button (X) in the window title bar to close the window without saving the changes. Bosch Security Systems Installation and Operation Manual AR18-10-B013 | v1.52 | 2011.06...
- Page 88 Global change Activate this function if the global change, as set with the Global change slide control, should trigger an alarm. AR18-10-B013 | v1.52 | 2011.06 Installation and Operation Manual Bosch Security Systems...
- Page 89 If this structure is concealed or moved, the reference check triggers an alarm. If the selected area is too homogenous, so that concealing and moving the structure Bosch Security Systems Installation and Operation Manual AR18-10-B013 | v1.52 | 2011.06...
- Page 90 Right-click any fields to deactivate. Click OK to save the configuration. Click the close button (X) in the window title bar to close the window without saving the changes. AR18-10-B013 | v1.52 | 2011.06 Installation and Operation Manual Bosch Security Systems...
-
Page 91: Vca Configuration - Scheduled
Assign the individual holidays to the VCA profiles, as described above. Deleting Holidays Delete defined holidays at any time: Click Delete. A new window opens. Click the date to delete. Bosch Security Systems Installation and Operation Manual AR18-10-B013 | v1.52 | 2011.06... - Page 92 | Advanced Mode FlexiDomeHD 720p IP Camera Click OK. The item is deleted from the table and the window closes. The process must be repeated for deleting additional days. AR18-10-B013 | v1.52 | 2011.06 Installation and Operation Manual Bosch Security Systems...
-
Page 93: Vca Configuration - Event Triggered
A delay period may be useful in avoiding false alarms or frequent triggering. During the delay period, the Silent MOTION+ configuration is always enabled. Bosch Security Systems Installation and Operation Manual AR18-10-B013 | v1.52 | 2011.06... -
Page 94: Audio Alarm
The name makes it easier to identify the alarm in extensive video monitoring systems, for example with the VIDOS and Bosch Video Management System programs. Enter a unique and clear name here. (Do not use any special characters, for example &.) Signal Ranges Exclude particular signal ranges in order to avoid false alarms. -
Page 95: Alarm E-Mail
Obtain information on operating your cellphone from your cellphone provider. Attach JPEG from camera Check the box to specify that JPEG images are sent from the camera. Bosch Security Systems Installation and Operation Manual AR18-10-B013 | v1.52 | 2011.06... - Page 96 This makes it easier to identify the origin of the e-mail. Test e-mail Click Send Now to test the e-mail function. An alarm e-mail is immediately created and sent. AR18-10-B013 | v1.52 | 2011.06 Installation and Operation Manual Bosch Security Systems...
-
Page 97: Alarm Task Editor
If the transfer was successful, the message Script successfully parsed. is displayed over the text field. If it was not successful, an error message is displayed with further information. Bosch Security Systems Installation and Operation Manual AR18-10-B013 | v1.52 | 2011.06... -
Page 98: Interfaces
Select Open for the relay to operate as an N.O. contact, or select Closed if the relay is to operate as an N.C. contact. Select Select External device or Motion+/IVA to trigger the relay. AR18-10-B013 | v1.52 | 2011.06 Installation and Operation Manual Bosch Security Systems... - Page 99 &.) Trigger relay Click the button to switch the relay manually (for example, for testing purposes or to operate a door opener). Bosch Security Systems Installation and Operation Manual AR18-10-B013 | v1.52 | 2011.06...
-
Page 100: Network
If a DHCP server is employed in the network for the dynamic assignment of IP addresses, activate acceptance of IP addresses automatically assigned to the device. Certain applications (VIDOS, Bosch Video Management System, Archive Player, Configuration Manager) use the IP address for the unique assignment of the device. If using these... - Page 101 Control Panel of the Windows Control Panel). To limit connections to SSL encryption, set the Off option in the HTTP browser port, the RCP+ port, and Telnet support. This Bosch Security Systems Installation and Operation Manual AR18-10-B013 | v1.52 | 2011.06...
- Page 102 Internet using a host name, without having to know the current IP address of the device. Enable this service here. To do this, obtain an account with DynDNS.org and register the required AR18-10-B013 | v1.52 | 2011.06 Installation and Operation Manual Bosch Security Systems...
- Page 103 To transfer the IP address of the device, click the Register button. Status The status of the DynDNS function is displayed here for information purposes; these settings cannot be changed. Bosch Security Systems Installation and Operation Manual AR18-10-B013 | v1.52 | 2011.06...
-
Page 104: Advanced
Enter the user name that the Radius server uses for the camera in the Identity field. Enter the Password that the Radius server expects from the camera. AR18-10-B013 | v1.52 | 2011.06 Installation and Operation Manual Bosch Security Systems... -
Page 105: Multicast
The prerequisite for multicast operation is a multicast-capable network that uses the UDP and IGMP protocols. Other group membership protocols are not supported. The TCP protocol does not support multicast connections. Bosch Security Systems Installation and Operation Manual AR18-10-B013 | v1.52 | 2011.06... - Page 106 A value can be entered to specify how long the multicast data packets are active on the network. If multicast is to be run via a router, the value must be greater than 1. AR18-10-B013 | v1.52 | 2011.06 Installation and Operation Manual Bosch Security Systems...
-
Page 107: Ftp Posting
Path on FTP server Enter an exact path to post the images on the FTP server. Max. bit rate Enter a limit for the data rate in kbps. Bosch Security Systems Installation and Operation Manual AR18-10-B013 | v1.52 | 2011.06... -
Page 108: Encryption
108 en | Advanced Mode FlexiDomeHD 720p IP Camera 9.8.5 Encryption If an encryption license is installed, this submenu gives access to the encryption parameters. AR18-10-B013 | v1.52 | 2011.06 Installation and Operation Manual Bosch Security Systems... -
Page 109: Service
The latest firmware can be obtained from your customer service center or from the Bosch Security Systems download area. To update the firmware: First, store the firmware file on your hard disk. - Page 110 Enter the full path of the file to upload or click Browse to locate the file. Click Upload to start the file transfer. AR18-10-B013 | v1.52 | 2011.06 Installation and Operation Manual Bosch Security Systems...
-
Page 111: Licenses
Keep this information at hand when seeking technical support. Select the text on this page with a mouse and copy it so that it can be pasted into an e-mail if required. Bosch Security Systems Installation and Operation Manual AR18-10-B013 | v1.52 | 2011.06... -
Page 112: Operation Via The Browser
When accessing the camera with a browser, the processor load and network information is available in the upper right of the window next to the Bosch logo. Move the mouse cursor over the icons to display numerical values. This information can help with problem solving or when fine tuning the device. -
Page 113: Image Selection
An automatic reconnection procedure is started in the background to recover from this error. No video recorded Watermarking not valid Watermarking flag set on media item Bosch Security Systems Installation and Operation Manual AR18-10-B013 | v1.52 | 2011.06... -
Page 114: Digital I/O
10.1.5 Saving snapshots Individual images from the video sequence that is currently being shown on the Livepage can be saved in JPEG format on the computer's hard drive. AR18-10-B013 | v1.52 | 2011.06 Installation and Operation Manual Bosch Security Systems... -
Page 115: Recording Video Sequences
Click the recording icon again to stop recording. Play back saved video sequences using the Player from Bosch Security Systems. 10.1.7 Running recording program The hard drive icon below the camera images on the Livepage changes during an automatic recording. -
Page 116: Recordings
– Change the time interval displayed by clicking the plus or minus icons. The display can span a range from two months to a few seconds. AR18-10-B013 | v1.52 | 2011.06 Installation and Operation Manual Bosch Security Systems... - Page 117 Jump to the following bookmark Bookmarks are only valid while in the Recordings page; they are not saved with the sequences. All bookmarks are deleted when leaving the page. Bosch Security Systems Installation and Operation Manual AR18-10-B013 | v1.52 | 2011.06...
-
Page 118: Troubleshooting
Does the camera transmit all the data required? – Does the camera respond as desired to alarm events? – Is it possible to control peripheral devices, if necessary? AR18-10-B013 | v1.52 | 2011.06 Installation and Operation Manual Bosch Security Systems... -
Page 119: Resolving Problems
Check the data within the LAN. transmission with ping. The maximum number of Wait until there is a free connections has been connection and call the reached. transmitter again. Bosch Security Systems Installation and Operation Manual AR18-10-B013 | v1.52 | 2011.06... - Page 120 The interface parameters Make sure that the do not match those of the settings of all units other unit connected. involved are compatible. AR18-10-B013 | v1.52 | 2011.06 Installation and Operation Manual Bosch Security Systems...
-
Page 121: Customer Service
11.3 Customer service If a fault cannot be resolved, please contact your supplier or system integrator, or go directly to Bosch Security Systems Customer Service. The version numbers of the internal processors can be viewed on a special page. Please note this information before contacting Customer Service. -
Page 122: Maintenance
Defective or superfluous devices and parts should be disposed of professionally or taken to your local collection point for hazardous materials. AR18-10-B013 | v1.52 | 2011.06 Installation and Operation Manual Bosch Security Systems... -
Page 123: Technical Data
Four independent areas, fully programmable Video Motion Analysis Motion+, or IVA option Test pattern Color bars 100%, Greyscale 11-step, Sawtooth 2H, generator Checker board, Cross hatch, UV plane Synchronization Internal, Line Lock Bosch Security Systems Installation and Operation Manual AR18-10-B013 | v1.52 | 2011.06... - Page 124 0.670 kg (1.48 lb) +SMB: 1.29 kg (2.84 lb) Operating -20 °C to +50 °C (-4 °F to +122 °F) cold start temperature (-50 °C [-58 °F] with heater enabled) AR18-10-B013 | v1.52 | 2011.06 Installation and Operation Manual Bosch Security Systems...
-
Page 125: Accessories
FlexiDomeHD 720p IP Camera Technical Data | en 125 13.1.1 Accessories Contact your Bosch representative for the latest available accessories. Bosch Security Systems Installation and Operation Manual AR18-10-B013 | v1.52 | 2011.06... -
Page 126: Glossary
IP address and other configuration parameters to computers on a network (Internet or LAN). Domain Name Service: A service that stores domain names and translates them into Internet Protocol (IP) addresses. AR18-10-B013 | v1.52 | 2011.06 Installation and Operation Manual Bosch Security Systems... - Page 127 Identification: a machine readable character string. Bosch Security Systems Installation and Operation Manual AR18-10-B013 | v1.52 | 2011.06...
- Page 128 It is controlled by a network operating system and uses a transfer protocol. Logical Unit Number: logical drive in iSCSI storage systems. AR18-10-B013 | v1.52 | 2011.06 Installation and Operation Manual Bosch Security Systems...
- Page 129 Optical Fiber: now used predominantly as the transmission medium for line-borne telecommunication processes (glass fiber cable). Parameters Values used for configuration. QCIF Quarter CIF: video format with 176 × 144/120 pixels (see CIF). Bosch Security Systems Installation and Operation Manual AR18-10-B013 | v1.52 | 2011.06...
- Page 130 Subnet maskSee Net mask. Transfer Control Protocol Telnet Login protocol with which users can access a remote computer (Host) on the Internet or local area network (LAN) connections. AR18-10-B013 | v1.52 | 2011.06 Installation and Operation Manual Bosch Security Systems...
- Page 131 Unshielded Twisted Pair: A variant of twisted pair cabling, UTP cable is not surrounded by any shielding. Wide Area Network: A long distance link used to extend or connect remotely located local area networks. Bosch Security Systems Installation and Operation Manual AR18-10-B013 | v1.52 | 2011.06...
- Page 132 132 en | Glossary FlexiDomeHD 720p IP Camera AR18-10-B013 | v1.52 | 2011.06 Installation and Operation Manual Bosch Security Systems...
- Page 134 Bosch Security Systems www.boschsecurity.com © Bosch Security Systems, 2011...
