Dataman -40Pro User Manual page 76

Diagnostic POD for ISP is available as optional accessory for
ISP-capable programmers. The order number: 70-0208

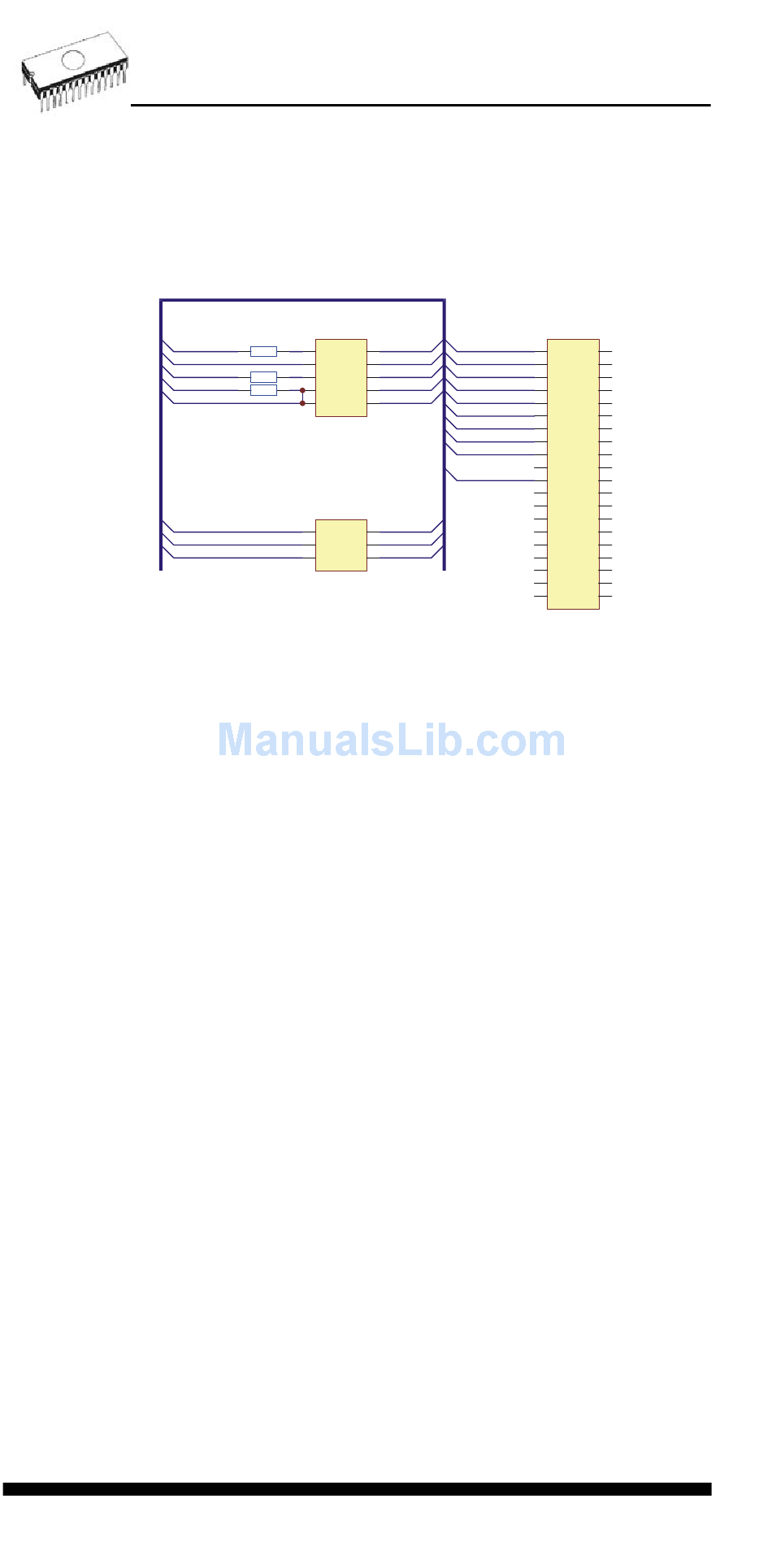

Schematic of Diagnostic POD for ISP connector (if you are in
hurry):
HR1A 47R
ZIF7
ZIF4
HR1B 47R
ZIF9
HR1C 47R
ZIF1
ZIF2
ZIF3
ZIF5
ZIF4
Sequence for testing 6 pins ISP connector:
1. Insert Diagnostic POD for ISP connectors into ZIF socket
of the programmer. Diagnostic POD must be inserted as
40 pins device.
2. Interconnect 6 pins connector of Diagnostic POD with an
ISP connector of the programmer with an ISP cable,
included in programmer delivery package. Be sure that
pins are interconnected properly (i.e. 1-1, 2-2, ..., 6-6).
3. Run selftest of ISP connector in PG4UW (Programmer /
Selftest ISP connector).
Sequence for testing 10 pins ISP connector:
1. Insert Diagnostic POD for ISP connectors into ZIF socket
of the programmer. Diagnostic POD must be inserted as
40 pins device.
2. Interconnect 10 pins connector of Diagnostic POD with
an ISP connector of the programmer with an ISP cable,
included in delivery programmer package. Be sure that
pins are interconnected properly (i.e. 1-1, 2-2, ..., 10-10).
3. Run selftest of ISP connector in PG4UW (Programmer /
Selftest ISP connector).
We recommend run this test every 6 months.
Programmer / Calibration test
Command executes test of programmer's calibration values.
Programmer / Create diagnostic report
Create Diagnostic report is used for writing more specific
diagnostic information to the Log window and consequently
1 2
1 2
3 4
3 4
5 6
6 5
7 8
9 10
J2
HARTING 09185106324
1 2
3 4
5 6
J3
HARTING 09185066324
76
J1
DIP40 to ZIF socket
ZIF3 ZIF1
ZIF5 ZIF2
ZIF6 ZIF3
ZIF8 ZIF4
ZIF11
ZIF5
ZIF6
ZIF7
ZIF8
ZIF9
ZIF11
ZIF6
ZIF8
ZIF2
1 40
2 39
3 38
4 37
5 36
6 35
7 34
8 33
9 32
10 31
11 30
12 29
13 28
14 27
15 26
16 25
17 24
18 23
19 22
20 21
