H/L/read driver
in programmer
PU/PD driver
in programmer

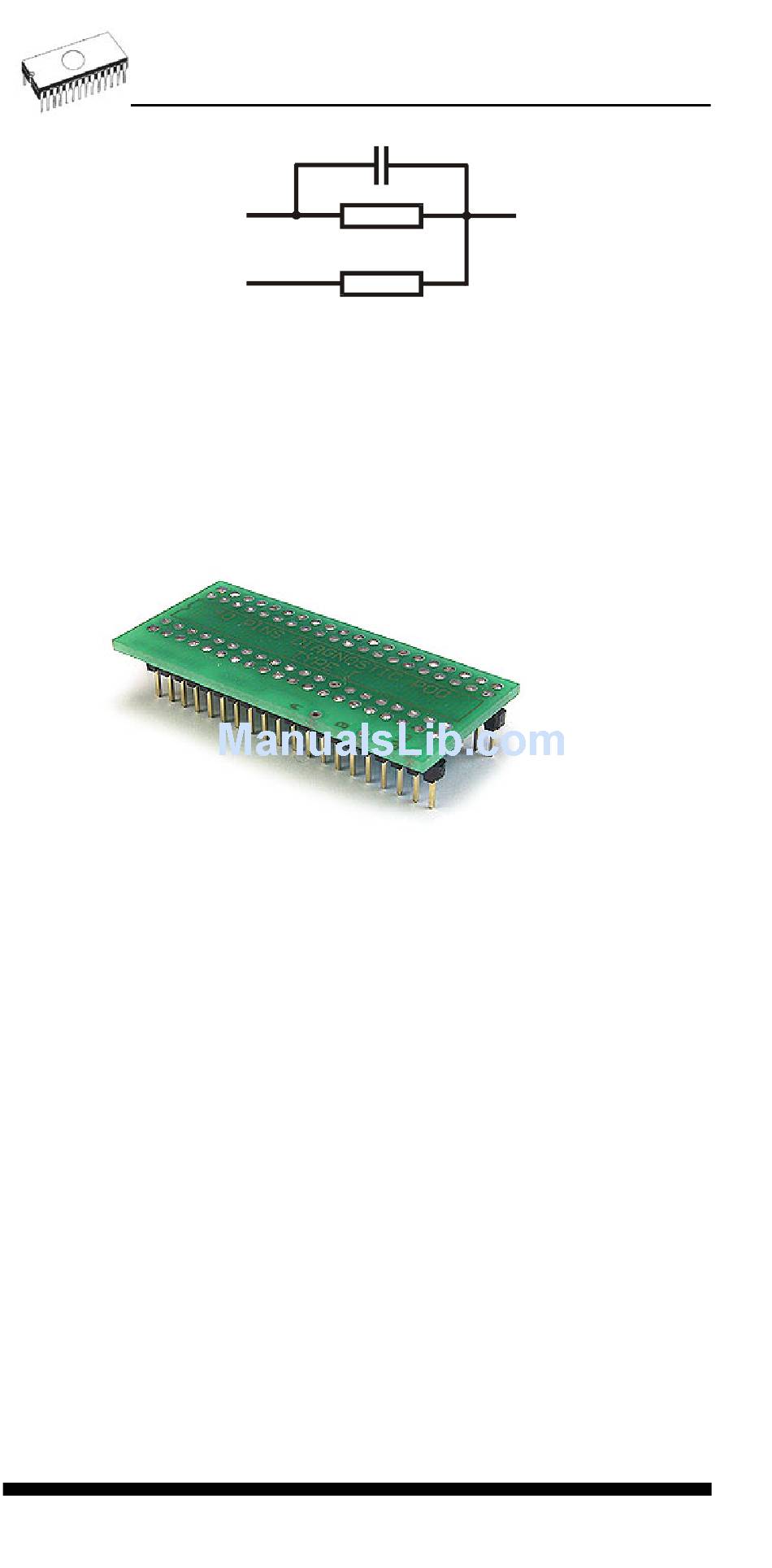

Selftest and calibration

If you feel that your programmer does not work properly,
please run the programmer selftest using the Diagnostic POD.
The Diagnostic POD is included with the standard package.
For optimal results, we recommend you run the programmer
selftest and calibration every 6 months. See instructions for
selftest in the Diagnostics menu of PG4UW.

Technical specification

HARDWARE
Programmer
• two D/A converters for VCCP and VPP, controllable rise and
fall time
• VCCP range 0..7V/350mA
• VPP range 0..25V/200mA
• USB 2.0/1.1 compatible interface
• autocalibration
• selftest capability
ZIF socket, pindriver
• 40-pin DIL ZIF (Zero Insertion Force) socket accepts both
300/600 mil devices up to 40-pins
• pindriver: 40 TTL pindrivers, universal GND/VCC/VPP
pindriver
C1
R1
R2
30
pin of ISP
connector
