Manipulation with the
programmed device
Select the device first, then insert it into the ZIF socket. Note
that the ZIF socket is open with the lever up and closed with
the lever down. The correct orientation of the device is shown
on the picture near the ZIF socket on the programmer's cover.
The programmed device can be removed from the socket
when the BUSY LED turns off.
Note: Programmer's protection electronics protect the target
device and the programmer itself against either short or long-
term power failures. However, it is not possible to guarantee
the integrity of the target device due to incorrect, user-selected
programming parameters. Do not remove the target device
from the ZIF socket when the BUSY LED is on.
In-system serial programming by
Dataman-48Pro
For general definition, recommendation and direction about
ISP see section Common notes / ISP please.
Description of Dataman-48Pro ISP connector
Depending on the device you want to program, the
specification of ISP connector pins may change. You can find it
in the control SW for the programmer (PG4UW), menu Device
/ Device Info (Ctrl+F1). Please be aware that the ISP
programming option of a given device must be selected. This is
indicated by a "ISP" suffix after the name of selected device.
For additional ISP information please refer to the device
manufacturer.

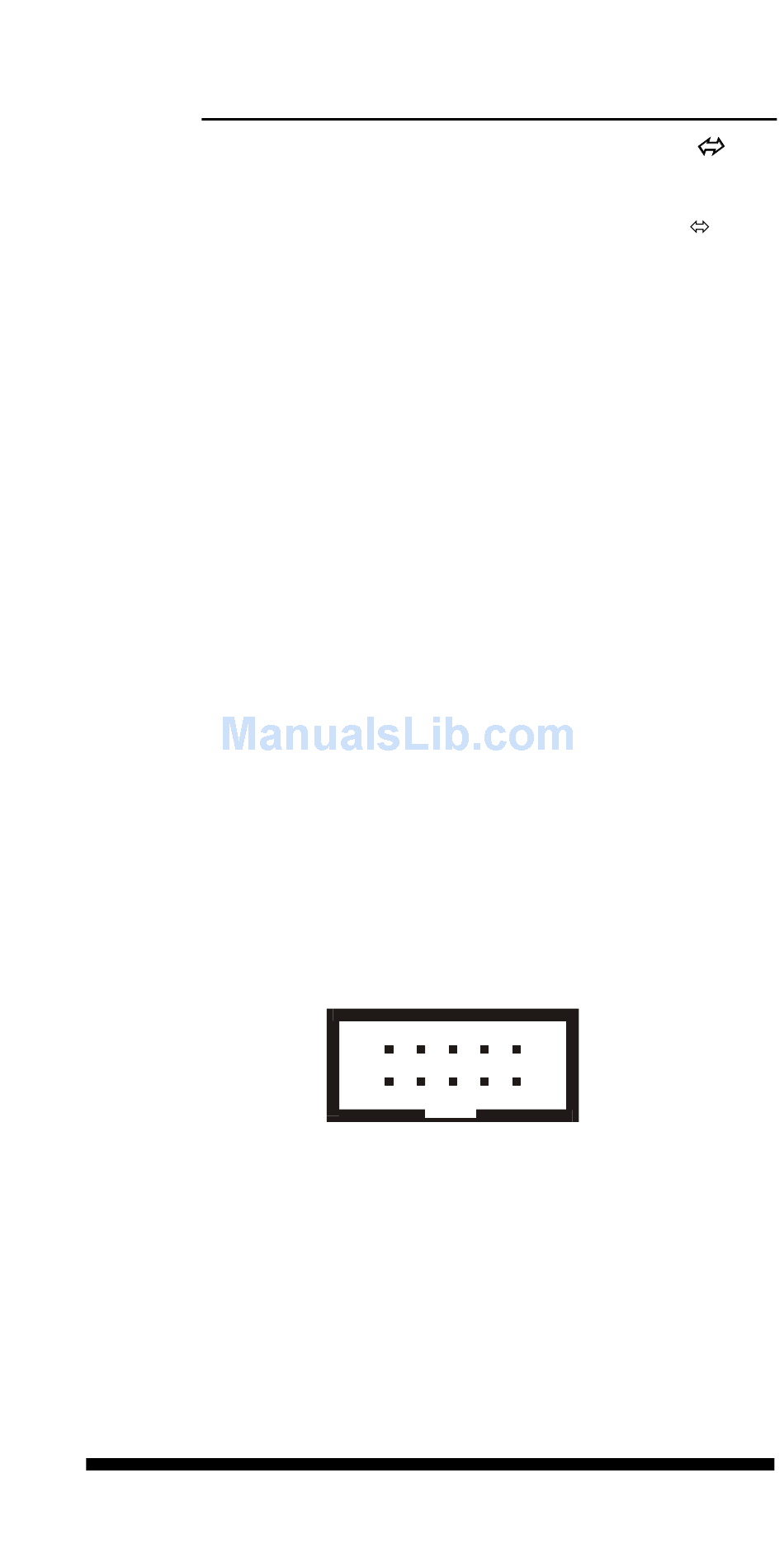

2 4 6
1 3 5
Front view of the ISP connector.
17
8 10
7
9
Dataman-48Pro
PC
