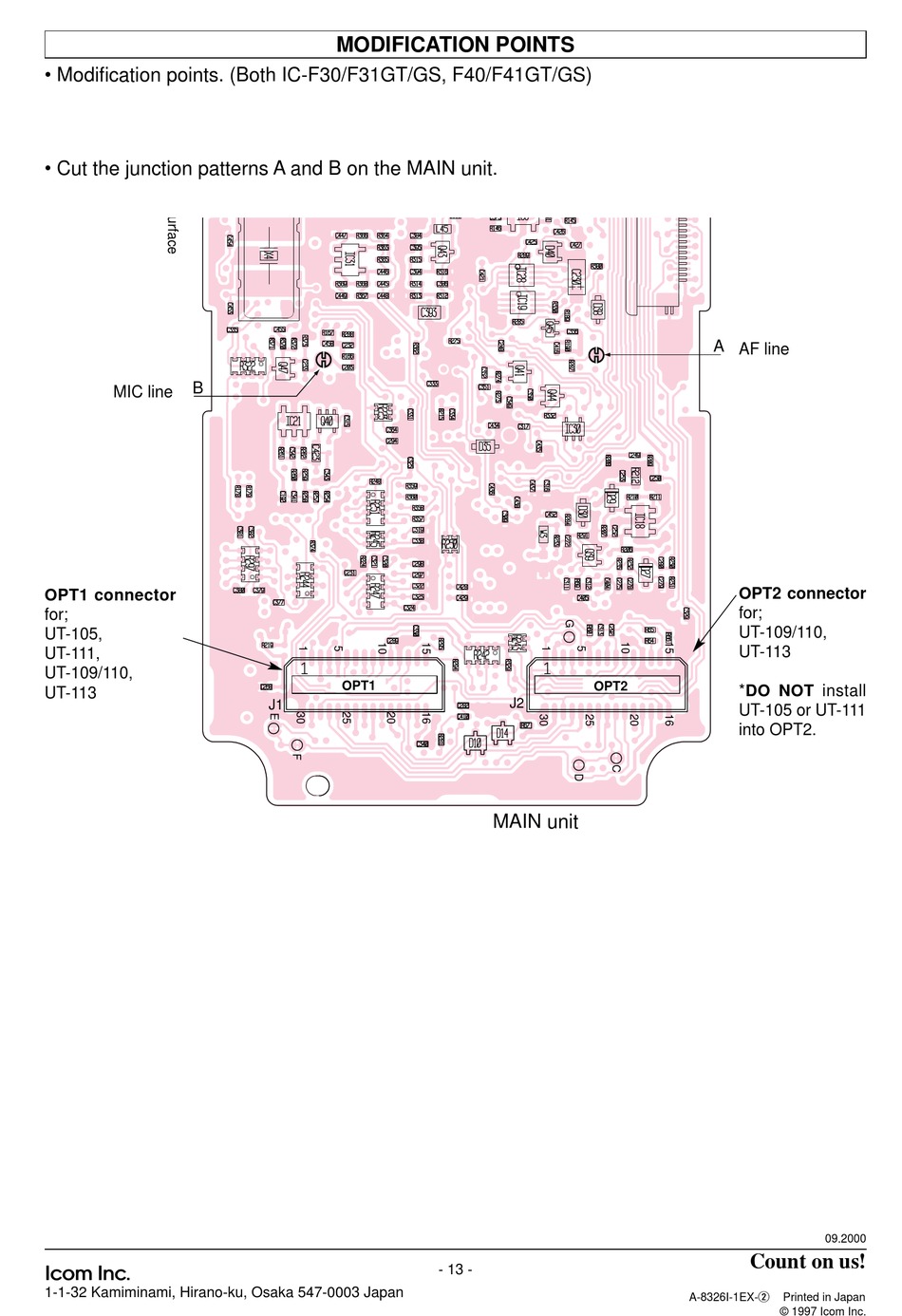

• Modification points. (Both IC-F30/F31GT/GS, F40/F41GT/GS)
• Cut the junction patterns A and B on the MAIN unit.
B
MIC line
OPT1 connector
for;
UT-105,
UT-111,
UT-109/110,
UT-113
1-1-32 Kamiminami, Hirano-ku, Osaka 547-0003 Japan
MODIFICATION POINTS
OPT1
J1
American Communication Systems
Discover the Power of Communications
http://www.ameradio.com
TO ORDER – VISIT
OPT2
J2
MAIN unit
- 13 -
AF line
OPT2 connector
for;
UT-109/110,
UT-113
*DO NOT install
UT-105 or UT-111
into OPT2.
09.2000
Count on us!
A-8326I-1EX-w
Printed in Japan
© 1997 Icom Inc.
