8. To facilitate wire entry utilize weather tight NEMA rated connectors (supplied), bushings and cable.
9. Connect structured cable from UL Listed ethernet switch or video server to RJ45 jack marked [IN] on
NetWay1DWP/NetWay1DWPH/NetWay1DWPM/NetWay1DWPMH (Fig. 1, pg. 2).
10. Connect structured cable from camera/device to RJ45 jack marked [OUT] on NetWay1DWP/NetWay1DWPH/
NetWay1DWPM/NetWay1DWPMH (Fig. 1, pg. 2).
11. Switch circuit breaker to the ON position.
Parameter
Number of Ports
Input power requirements
Environmental Conditions
Regulatory Compliance
Weights (approx.)
Fig. 2 - Bottom of enclosure
1.125"
28.575mm
1.25"
31.75mm
Fig. 3
CAT-5 or
Higher
100m
Camera/
Device
- 2 -

Technical Specifications:

Description
One (1) Hi-PoE (60W) or IEEE 802.3at (30W) and IEEE 802.3af (15W) compliant.
115VAC, 60Hz, 1.2A or 230VAC, 50/60Hz, 0.75A.
Operating Ambient Temperature: 30W = 70ºC (158ºF). 60W = 55ºC (131ºF).
Relative humidity: 20 to 85%, non-condensing.
Storage Temperature: -30ºC to 85ºC (-22ºF to 185ºF).
Operating Altitude: -1,000 to 6,561.679 ft. (-304.8 to 2,000m).
UL/CUL Listed for Information Technology Equipment (UL 60950-1)
Information Technology Equipment to be installed Outdoors (UL 60950-22). CE approved.
Product: 3.7 lbs. (1.68 kg), Shipping: 5 lbs. (2.27 kg)
Suggested area
for Inlets
0.875"
22.22mm
2.4375"
61.91mm

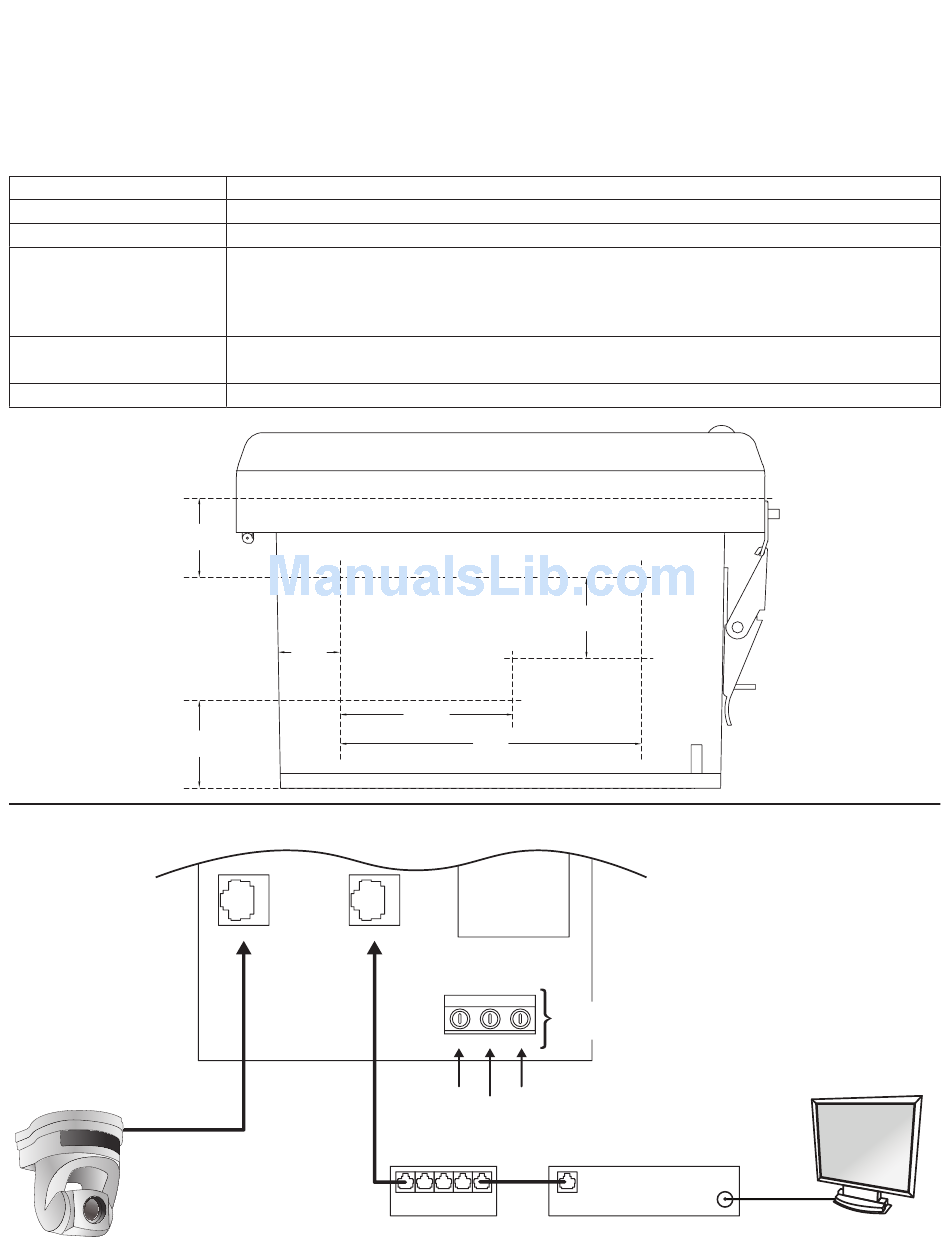

Typical Application:

OUT IN
CAT-5 or
Higher
100m
Ethernet Switch
1.125"
28.575mm
4.25"
107.95mm
115VAC/230VAC
Input
L G N
Line Neutral
Ground
NVR/Network Server
NetWay1DWP/NetWay1DWPH/NetWay1DWPM/NetWay1DWPMH
Video
Monitor
