Abatron BDI 2000 User Manual

Bdipro for cpu 16/32/32+
Hide thumbs Also See for BDI 2000:

Advertisement

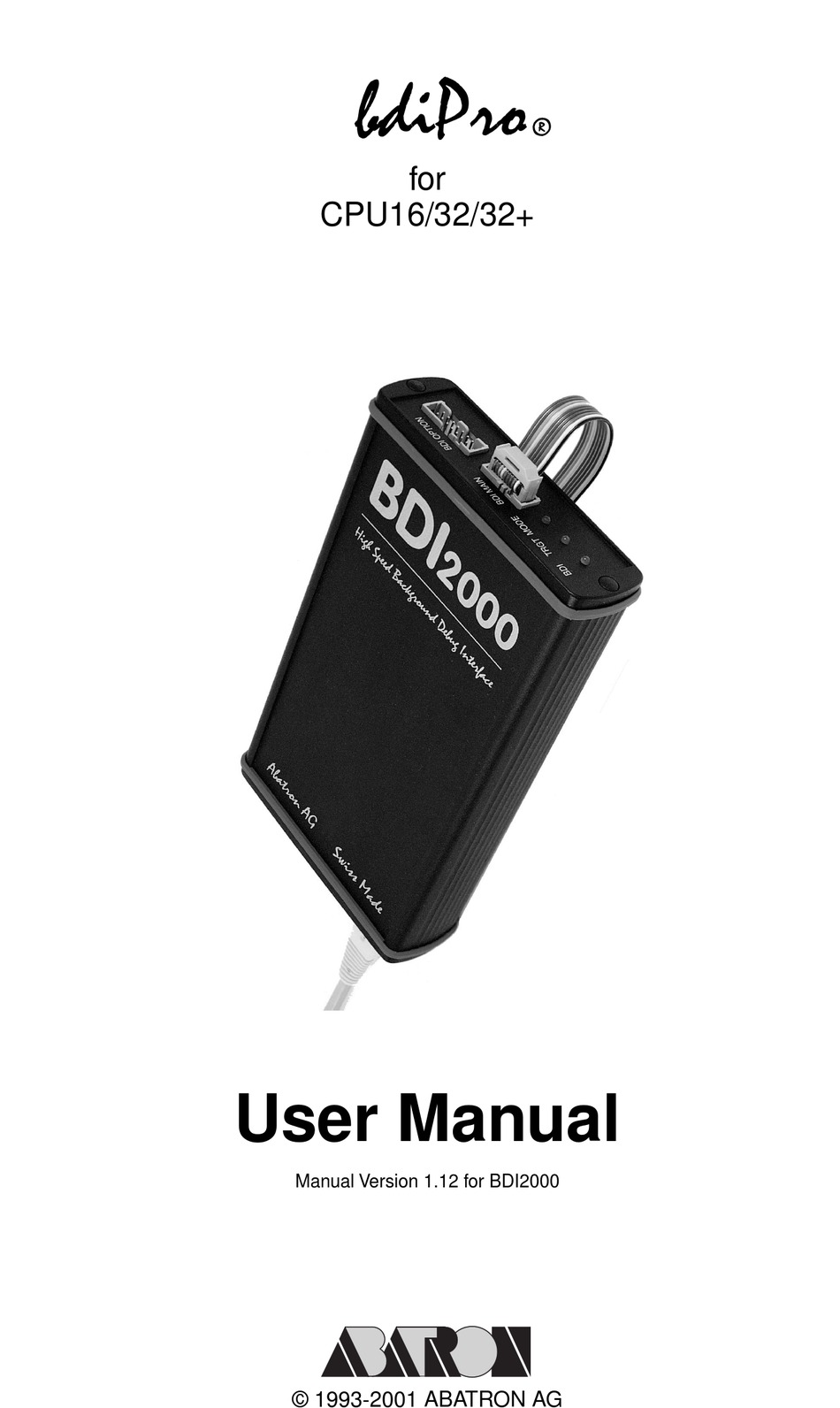

bdiPro
®
for
CPU16/32/32+
User Manual
Manual Version 1.12 for BDI2000
© 1993-2001 ABATRON AG

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BDI 2000 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Abatron BDI 2000

  • Page 1 ® CPU16/32/32+ User Manual Manual Version 1.12 for BDI2000 © 1993-2001 ABATRON AG...
  • Page 2: Table Of Contents

    3 Specifications ..........................16 4 Environmental notice ........................ 17 5 Declaration of Conformity (CE) ....................17 6 Warranty ............................. 18 Appendices A Troubleshooting ........................19 B Maintenance ..........................20 C Trademarks ..........................22 © Copyright 1993-2001 by ABATRON AG 1.12...
  • Page 3: Introduction

    Ethernet (10 BASE-T) bdiPro is a powerful software package, allowing on-board programming with the BDI2000 from Abatron. bdiPro eliminates the inefficient, individual chip programming, particularly for surface- mounted designs. The unprogrammed memories can be soldered to the printed circuit board and programmed simultaneously on a just-in-time basis.
  • Page 4: Functions

    • If required, you can write special routines that runs before or after the program/erase process (pre-programming, post-programming / pre-erase, post-erase). Help • Information about menus and dialog boxes by pressing the F1 function key © Copyright 1993-2001 by ABATRON AG 1.12...
  • Page 5: Installation

    S S S S w w w w i i i i s s s s s s s s M M M M a a a a d d d d e e e e The green LED «TRGT» marked light up when target is powered up For BDI MAIN / TARGET A connector signals see table on next page. © Copyright 1993-2001 by ABATRON AG 1.12...
  • Page 6 For normal modes, output signal from the MCU. Indicates instruction pipeline activity. DATA SERIAL OUT For background debug mode, serial data output from the MCU. All the pins except pin 1need to be connected to the target system for the programming operation. © Copyright 1993-2001 by ABATRON AG 1.12...
  • Page 7: Changing Target Processor Type

    (Version A) or via the POWER connector (Version B). For more information see chapter 2.2.1 «External Power Supply». To avoid data line conflicts, the BDI2000 must be disconnected from the target system while programming the logic for an other target CPU. © Copyright 1993-2001 by ABATRON AG 1.12...
  • Page 8: Connecting The Bdi2000 To Power Supply

    The BDI2000 needs to be supplied with 5 Volts (max. 1A) via the BDI OPTION connector (Rev. A) or via POWER connector (Rev. B/C). The available power supply from Abatron (option) or the enclosed power cable can be directly connected. In order to ensure reliable operation of the BDI2000, keep the power supply cable as short as possible.
  • Page 9: Power Supply From Target System

    4 - NOT USED RS232 POWER TX RX 10 BASE-T TRGT MODE TARGET A TARGET B The green LEDs «BDI» and «TRGT» marked light up when target is powered up and the jumper is inserted correctly © Copyright 1993-2001 by ABATRON AG 1.12...
  • Page 10: Status Led «Mode

    The BDI is ready for use, the firmware is already loaded. The power supply for the BDI2000 is < 4.75VDC. BLINK The BDI «loader mode» is active (an invalid firmware is loaded or loading firmware is active). © Copyright 1993-2001 by ABATRON AG 1.12...
  • Page 11: Connecting The Bdi2000 To Host

    S S S S w w w w i i i i s s s s s s s s M M M M a a a a d d d d e e e e RS232 © Copyright 1993-2001 by ABATRON AG 1.12...
  • Page 12: Ethernet Communication

    When this LED light BLINKS, data is being transmitted through the UTP port of the BDI2000 Receive When this LED light BLINKS, data is being received through the UTP port of the BDI2000 © Copyright 1993-2001 by ABATRON AG 1.12...
  • Page 13: Installation Of The Bdipro Software

    Any time you need information about specific menus and dialog boxes, you can display the integrated Help screens by pressing the F1 function key. The Edit and Target menus will only become active when you have specified a memory type (see Target Memory in the Setup Menu). © Copyright 1993-2001 by ABATRON AG 1.12...
  • Page 14: Bdi2000 Setup/Update

    Enter the IP address for the BDI2000. Use the following format: xxx.xxx.xxx.xxxe.g.151.120.25.101 Ask your network administrator for assigning an IP address to this BDI2000. Every BDI2000 in your network needs a different IP address. © Copyright 1993-2001 by ABATRON AG 1.12...
  • Page 15 • Switch ON the power supply for the BDI again and wait until the LED «MODE» blinks fast DEFAULT • Turn the power supply OFF again • Return the jumper to the «DEFAULT» position • Reassemble the unit as described in Appendix «Maintenance» © Copyright 1993-2001 by ABATRON AG 1.12...
  • Page 16: Specifications

    -20 °C ... +65 °C Relative Humidity (noncondensing) <90 %rF Size 190 x 110 x 35 mm Weight (without cables) 420 g Host Cable length (RS232) 2.5 m Specifications subject to change without notice © Copyright 1993-2001 by ABATRON AG 1.12...
  • Page 17: Environmental Notice

    BDI2000 (CPU16/32/32+) User Manual 4 Environmental notice Disposal of the equipment must be carried out at a designated disposal site. 5 Declaration of Conformity (CE) © Copyright 1993-2001 by ABATRON AG 1.12...
  • Page 18: Warranty

    In no event shall ABATRON be liable for any loss of profit or any other commercial damage, including but not limited to special, incidental, consequential, or other damages.
  • Page 19: Appendices

    Network processes do not function (loading the firmware was successful) Possible reasons • The BDI2000 is not connected or not correctly connected to the network (LAN cable or media converter) • An incorrect IP address was entered (BDI2000 configuration) © Copyright 1993-2001 by ABATRON AG 1.12...
  • Page 20: B Maintenance

    2.2 Remove the two screws that hold the front panel TRGT MODE BDI MAIN BDI OPTION 3.1 While holding the casing, remove the front panel and the red elastig sealing casing elastic sealing front panel © Copyright 1993-2001 by ABATRON AG 1.12...
  • Page 21 5.4 Mount the two plastic caps that cover the screws 5.5 Plug the cables Observe precautions for handling (Electrostatic sensitive device) Unplug the cables before opening the cover. Use exact fuse replacement (Microfuse MSF 1.6 AF). © Copyright 1993-2001 by ABATRON AG 1.12...
  • Page 22: C Trademarks

    BDI2000 (CPU16/32/32+) User Manual C Trademarks All trademarks are property of their respective holders. © Copyright 1993-2001 by ABATRON AG 1.12...
