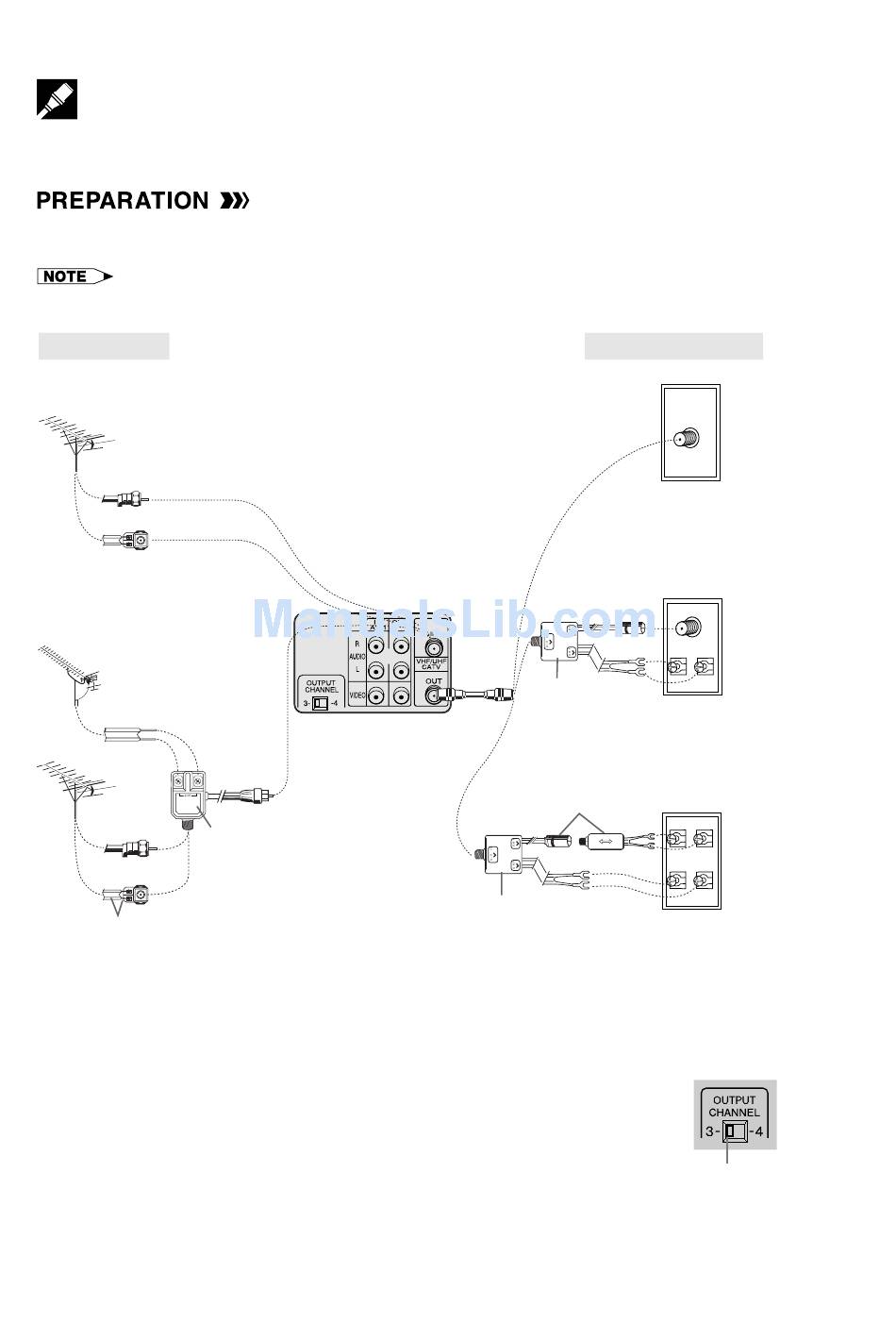

Connecting the VCR

Each type of antenna and TV system requires a different method of connection. If you have cable TV (CATV),
see page 43 for Cable TV connection.
To determine the correct type of connection, first check the type of antenna and TV terminal in use.
Make the connections as shown below.
• Consult your SHARP Dealer or Service Center for the type of adaptor, separator, transformer or combiner that might be
required.
Antenna type
Combined VHF/UHF
antenna cable
VHF/UHF antenna
cable or adaptor
or
Separate VHF/UHF
antenna cable
UHF flat twin-lead
antenna cable
VHF
VHF coaxial
antenna cable
(combiner, not
supplied)
or
Connect the flat twin-lead cable to a
transformer (300 Ohm to 75 Ohm,
not supplied)
After the Connection
Plug in the power cords of the VCR and TV. Then go to the following Setting Up section.
Setting the 3 ↔ 4 Output Channel Selector
The 3 ↔ 4 OUTPUT CHANNEL selector changes the VCR OUTPUT to standard
TV broadcasting signals. Both your TV and VCR must be set to the same
channel (i.e. TV on channel 3 and VCR OUTPUT CHANNEL selector on 3).
Your VCR is set to channel 3 at the factory, so your TV should be tuned to
channel 3 as well. If channel 3 is an active broadcast channel in your area, set
the VCR 3 ↔ 4 OUTPUT CHANNEL selector to 4 and tune your TV to channel 4.
Selecting the Video Channel on Your TV
To view the output of your VCR on your TV, you must select the video channel (3 or 4) on your TV that
corresponds with the output channel set above.
VCR Rear
Supplied
coaxial
cable
(separator, not
supplied)
Type of TV Terminal
ANT/CABLE
(separator, not
supplied)
Connect the round
coaxial cable to a
transformer
(75 Ohm to 300 Ohm, not
supplied)
VHF MATCHING BOX
75Ω 300Ω
3 ↔ 4 OUTPUT CHANNEL
VHF
UHF
VHF
UHF
Rear of Your VCR
selector
