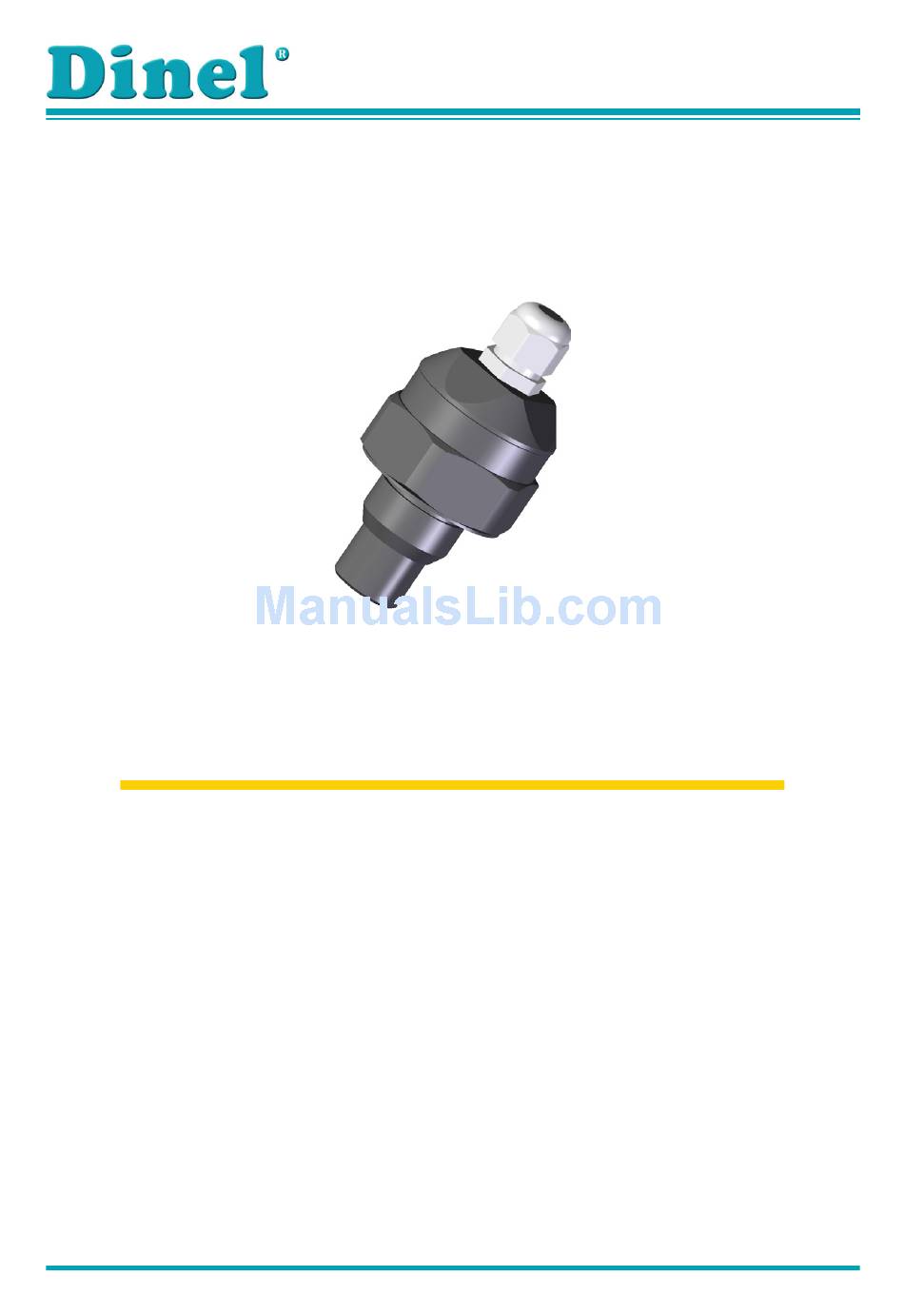

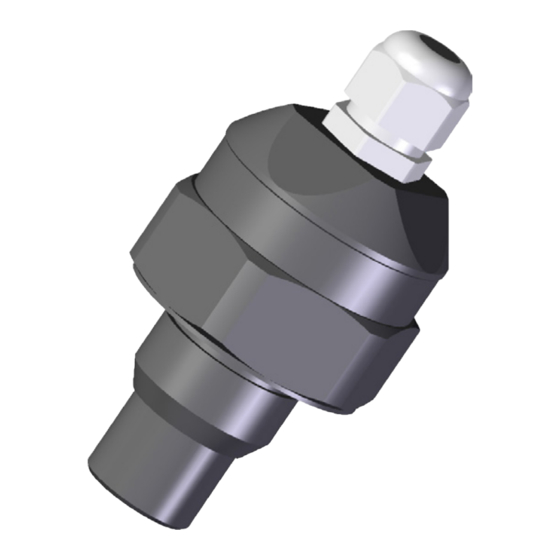

- Page 1 INSTRUCTION MANUAL průmyslová elektronika Ulm–53l ltrasonic level meters Read carefully the instructions published in this manual before the first use of the level meter. Keep the manual at a safe place. The manufacturer reserves the right to implement changes without prior notice.
-
Page 3: Table Of Contents
CONTENT 1 . Safety ............................4 2 . Packing, transportation and storage ..................4 3 . Measuring principle ........................5 4 . Range of application ........................5 5 . Features of variants ........................5 6 . Dimensional drawings ........................6 7 . Installation instructions .......................7 8 . Electrical connection ........................10 9 . Level meter setting ........................11 10 ... -
Page 4: Safety
If the device is transported further, then only wrapped in the original packaging and protected against shocks and weather. Store the device in its original packaging in a dry place, sheltered from the weather, with humidity up to 85% without the effects of chemically active substances. Storage temperature range is from -20°C to +60°C. Level meters variants ULM–53_–02, 06, 10 are fitted with protective caps at the ultrasonic transducer to prevent damage. Before commissioning, remove the caps! ULM–53L © Dinel, s.r.o. -
Page 5: Measuring Principle
PVDF (Polyvinylidene Fluoride) transmitter and plastic body, process connection with thread G 1”. ULM –53L–06 Measuring range from 0.25 m to 2 m (customer configurable), plastic PVDF (Polyvinylidene Fluoride) transmitter and plastic body, process connection with thread G 1½". ULM –53L–10 Measuring range from 0.5 m to 10 m (customer configurable), plastic PVDF transmitter and plastic body, process connection with PP (Polypropylene) flange. ULM–53L–20 Measuring range from 0.5 m to 20 m (customer configurable), plastic PVDF transmitter and plastic body, process connection with aluminium flange. © Dinel, s.r.o. ULM–53L... -
Page 6: Dimensional Drawings
6 . D IMENSIONAL DRAWINGS ULM–53L–02–_ ULM–53L–06–_ ULM–53L–10–_ Polypropylene DN65 ULM–53L–20–_ Ground terminal Al flange ULM–53L © Dinel, s.r.o. -
Page 7: Installation Instructions
> 100 mm b – Neck width m – Dead zone a < 1,5 b ULM–53L–10 b > 100 mm a < 1,5 b ULM–53L–20 b > 150 mm Fig. 4: Possible installation of the installation neck © Dinel, s.r.o. ULM–53L... - Page 8 – Measurement range of the level meter Fig. 6: Minimum distance of the level meter to nearby objects in the tank i) Do not install the level meter in or above the filling point (Fig. 7). Fig. 7: Level meter installation outside the influence of filling circulation j) In case the level of bulk-solid materials is measured, the measurement range is reduced. We recommend to consult the use with the manufacturer. ULM–53L © Dinel, s.r.o.
- Page 9 False surface reflections of the ultrasonic signal might result as a consequence of rotating mixer’s blades that ripple the surface level and thus cause unreliable level meter’s functioning (Fig. 12). p) The level meter should not be installed at places where ultrasonic signal false reflections caused by stirrer blades might occur (Fig. 13). Fig. 9: Reflection board Fig. 10: Moderately stirred Fig. 11: Intensely stirred Fig. 12: False reflection caused by surface surface mixer blade © Dinel, s.r.o. ULM–53L...
-
Page 10: Electrical Connection
Make the electric connection in voltage-free state! In case of strong electromagnetic interferences (EMI), parallel cable ducting with power lines, or when cable length exceeds 30 m we recommended to use shielded cable (for “I” and “U” variants only). ULM–53L © Dinel, s.r.o. -
Page 11: Level Meter Setting
10 – Max. range. 10 m M – RS–485 (Modbus RTU) 20 – Max. range. 20 m 12 . a ccessories Standard Optional (included in the level meter price) (for extra charge) • 1pc of seal (for ULM–53L–02; –06) • Fixing nut G1” and G1 ½” • 5 m of cable • Horn adapter ST–G1 and ST–G1,5 © Dinel, s.r.o. ULM–53L... -
Page 12: Safety, Protection And Compatibility
15 . g eneral conditions warranty Dinel, s.r.o. guarantees for the period of three (3) years that the product has the characteristic as in technical specification is mentioned. The guarantee can be invoked only when the product is completed by original invoice and guarantee list. This guarantee does not cover the damages resulting from misuse, improper installation or incorrect maintenance. This guarantee cease when user or the other person makes any changes on the product or the product is mechanically or chemically damaged, or the serial number is not readable. In the case of rightful complaint we replace the product or its defective part. ULM–53L © Dinel, s.r.o. -
Page 13: Specifications
ULM–53L–_ _–M PVC 2 x 2 x 0.25 mm (twisted pair, shielded) 2 Maximal current output load resistance (at U = 24 V DC) = 270 Ω Minimal voltage output load resistance R > 1 kΩ Delay between supply power rise time and first measurement Max. 5 s (by type) Delay between power supply rise time and full emission Max. 45 s (by type) ULM–53L–02–_ 0.55 kg ULM–53L–06–_ 0.65 kg Weight ULM–53L–10–_ 0.95 kg ULM–53L–20–_ 3.15 kg 1) In case the level of bulk-solid materials is measured, the measurement range is reduced. © Dinel, s.r.o. ULM–53L... - Page 14 ULM–53L © Dinel, s.r.o.
- Page 16 Dinel, s.r.o. U Tescomy 249 760 01 Zlín Czech Republic Tel.: +420 577 002 003 Fax: +420 577 002 007 E-mail: sale@dinel.cz www.dinel.cz The lastest version of this instruction manual can be found at www.dinel.cz Version: 12/2012...
