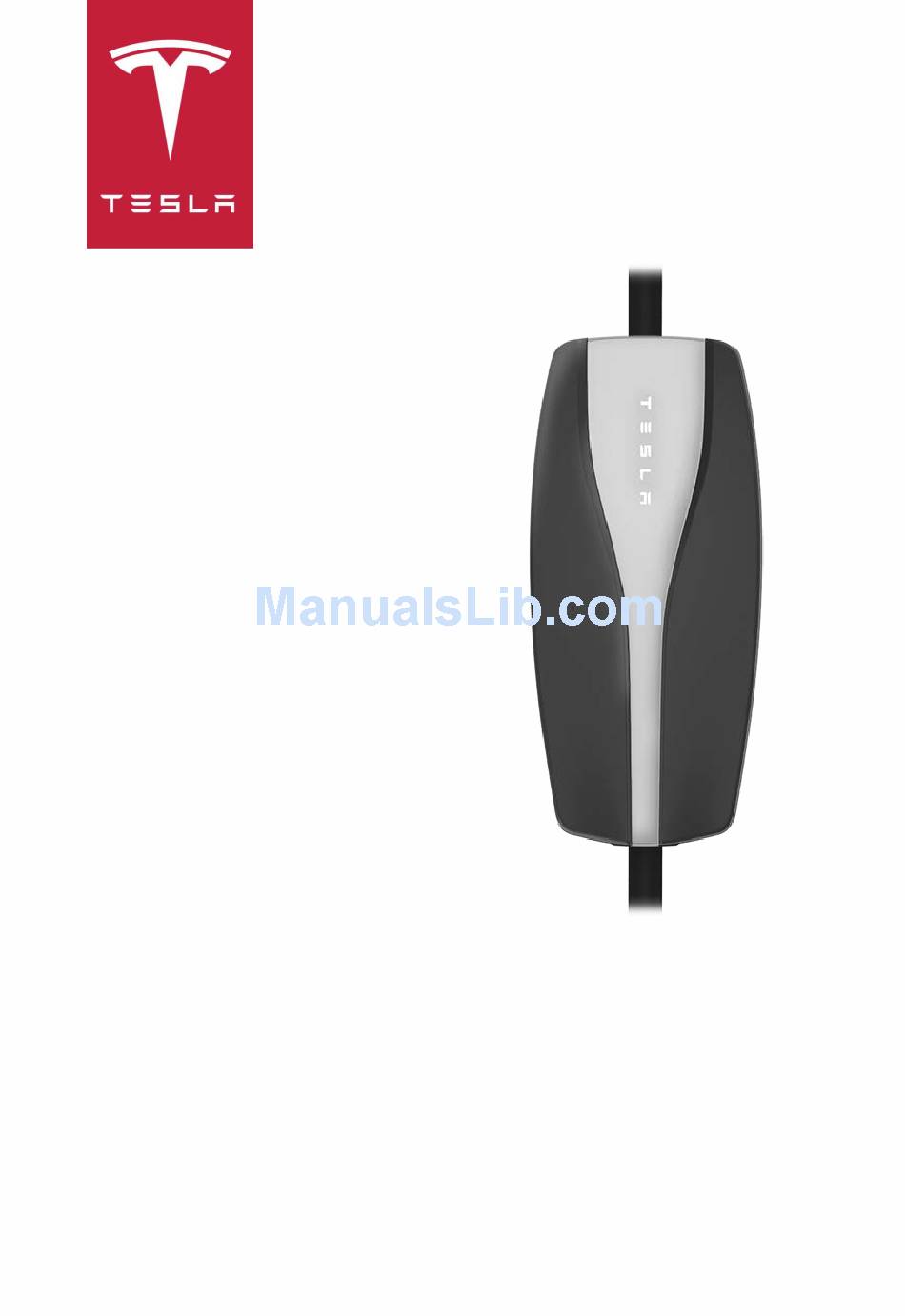

- Page 1 MOBILE CONNECTOR - GEN 2 OWNER'S MANUAL UNITED STATES...
-
Page 3: Table Of Contents
Contents Safety Information..... 2 Save These Important Safety Instructions..2 Warnings.................2 Cautions................3 General Information....4 Mobile Connector Component Overview..4 Specifications............... 4 Charging Time.............. 5 Adapters........6 Removing the Adapter..........6 Attaching the Adapter..........7 How to Charge......8 Plugging In..............8 Unplugging..............9 For More Information..........9 Troubleshooting....... -
Page 4: Safety Information
Warning: Use the Mobile Connector only within the specified operating parameters. Warning: The Mobile Connector is designed only for charging a Tesla vehicle (excluding Tesla Roadster). Do not use it for any other purpose or with any other vehicle or object. The Mobile Connector is intended only for vehicles that do not require ventilation during charging. -
Page 5: Cautions
Do not insert foreign objects into any part of the Mobile Connector. Warning: Do not charge a vehicle that is covered with a non-Tesla approved car cover. Warning: Ensure that the Mobile Connector’s charging cable does not obstruct pedestrians or other vehicles or objects. -
Page 6: General Information
General Information Mobile Connector Component Overview Adapter Handle Button on handle 4. Status lights Mobile Connector controller Cable Specifications Use only a 120 volt, 208 volt or 240 volt AC supply, 50/60 hertz wall outlet that has a dedicated and properly grounded circuit, and is rated for at least 15 amps. If possible, use a dedicated receptacle with a single socket. -
Page 7: Charging Time
While you are charging your vehicle, you can also touch the Charging icon to review the charging status information on the touchscreen; it displays the time remaining until fully charged at the currently selected charge level. For more information on how long it takes to charge your Tesla vehicle, go to www.tesla.com/ support. General Information... -
Page 8: Adapters
The Mobile Connector includes two outlet adapters: one for a standard 120 volt household outlet and a second adapter for a 240 volt outlet. For faster charging, use a 240 volt outlet. Consult an electrician to install a 240 volt outlet where you plan to park your Tesla vehicle. NEMA 5-15 Adapter NEMA 14-50 Adapter Additional adapters are available for purchase. -
Page 9: Attaching The Adapter
Adapters Attaching the Adapter To attach an adapter, line up the adapter with the controller of the Mobile Connector and push it into the socket until it snaps into place. Note: The Mobile Connector automatically detects the attached adapter and sets the appropriate current draw. -
Page 10: How To Charge
How to Charge Plugging In Note: Always inspect the Mobile Connector for damage prior to each use. Ensure that the Mobile Connector’s adapter matches the outlet you want to use. For instructions on how to change the adapter, see Changing the Adapter. Plug the Mobile Connector’s adapter into the power outlet. -
Page 11: Unplugging
Note: If your vehicle is not equipped with a motorized charge port door, you may need to push the door closed. Tesla recommends leaving the Mobile Connector plugged into the wall outlet to reduce wear and tear from day-to-day use. If you do not plan to use the Mobile Connector for a while (such as when you leave for vacation), unplug it, and store it in an appropriate location. -
Page 12: Troubleshooting
Troubleshooting Status Lights Under normal conditions when charging is in progress, the Tesla logo lights illuminate sequentially, and the red light is off. Identify problems by paying attention to these lights. Resolving Faults Green Lights Red Light What it means... - Page 13 Try a different outlet. If the error persists, contact Tesla.. 7 flashes Software error or mismatch. Update the vehicle's software, if available. If an update is not available, contact Tesla. Troubleshooting...
-
Page 14: Questions
All on 1 flash Thermal fault. Consider charging in a cooler area, such as indoors or in the shade. If the error persists, contact Tesla. All on 5 flashes Adapter fault. Charging Unplug the Mobile Connector current is limited to 8A. - Page 16 PUBLISHED DECEMBER 14, 2017...
