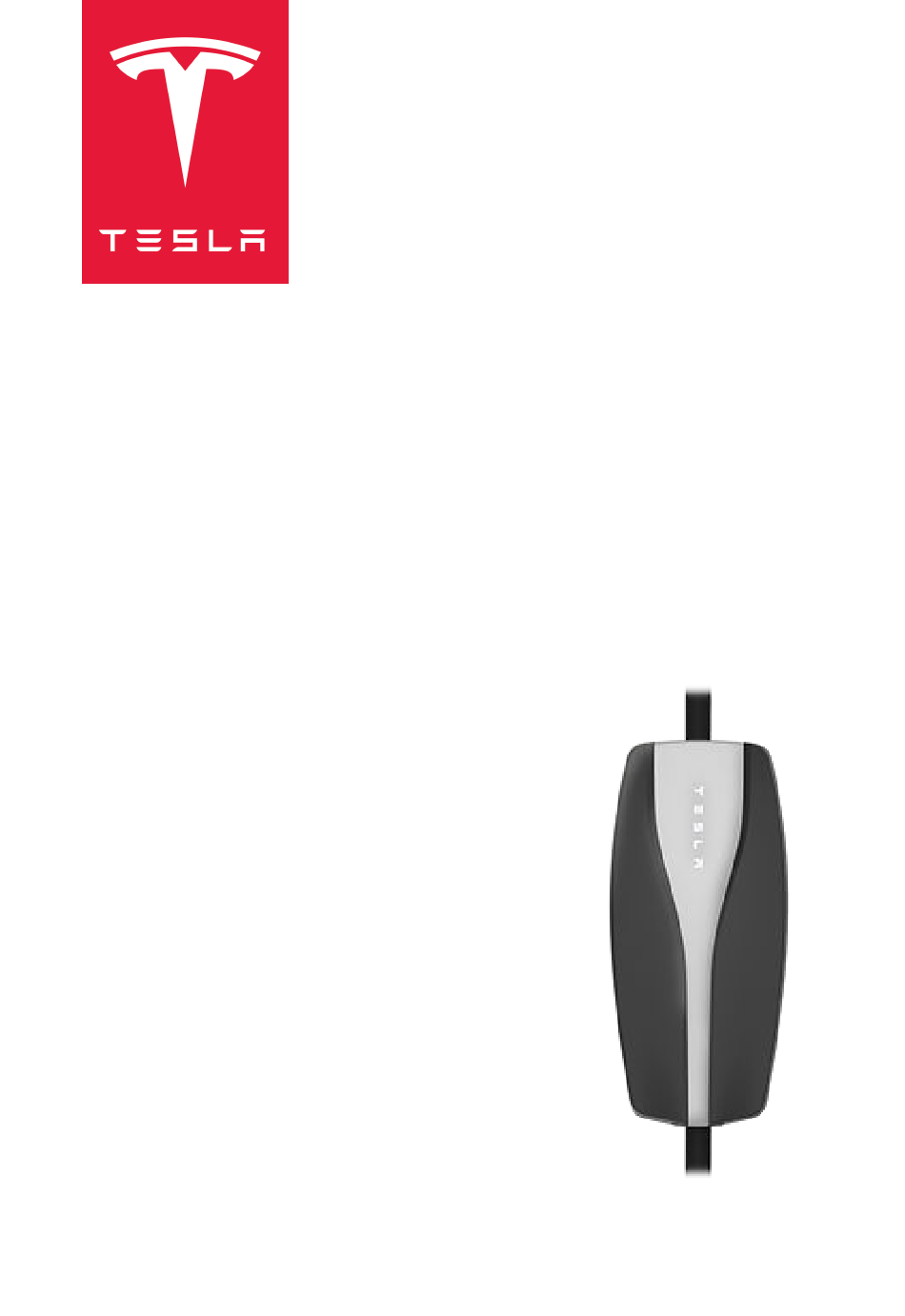

  • Page 1 GEN 2 MOBILE CONNECTOR OWNER'S MANUAL EUROPE...

  • Page 2: Table Of Contents

    Contents Safety Information..2 General Information..4 Adapters..7 How to Charge..9 Troubleshooting..11...

  • Page 3: Save These Important Safety Instructions

    WARNING: Do not attempt to open, disassemble, repair, tamper with, or modify the Mobile Connector. The Mobile Connector is not user-serviceable. Contact Tesla for any repairs. WARNING: Do not use an extension cord, a multi-outlet adapter, a multi-plug, a conversion plug, or a power strip to plug in the Mobile Connector.
  • Page 4 Safety Information WARNING: Do not charge a vehicle that is covered with a non-Tesla approved car cover. WARNING: Ensure that the Mobile Connector’s charging cable does not obstruct pedestrians or other vehicles or objects. WARNING: Use of the Mobile Connector may affect or impair the operation of medical or implantable electronic devices, such as an implantable cardiac pacemaker or an implantable cardioverter defibrillator.

  • Page 5: Specifications

    General Information Mobile Connector Component Overview 1. Handle 2. Button on handle 3. Cable 4. Schuko adapter 5. 3-pin IEC 60309 adapter (blue) 6. Mobile Connector controller 7. Status lights Specifications Use only a 200-240 volt single-phase AC supply and a 50-60 hertz wall outlet that has a dedicated and properly-grounded circuit.

  • Page 6: Charging Time

    (kWh) by power (kW). Note that different adapters provide different current and power outputs. If you are charging a Tesla, you can also touch the Charging icon to review the charging status information; it displays the time remaining until fully charged at the currently selected charge level.
  • Page 7 General Information Adapter Current Power at 230 Volts Italy 3 kW Swiss 2.3 kW 2.3 kW AU 10 1.8 kW AU 15 2.8 kW 16A Blue 3.7 kW 32A Blue 7.4 kW Owner's Manual...

  • Page 8: Adapters

    The specific adapters included with your Mobile Connector depend on your market region. For example, the following adapters are available: Schuko: 3-pin IEC 60309 (blue): To purchase adapters, go to www.tesla.com. Removing the Adapter To remove an adapter, firmly grasp the adapter and pull it from its socket. Owner's Manual...

  • Page 9: Attaching The Adapter

    Adapters Attaching the Adapter To attach an adapter, line up the adapter with the controller of the Mobile Connector and push it into the socket until it snaps into place. NOTE: The Mobile Connector automatically detects the attached adapter and sets the appropriate current draw.

  • Page 10: How To Charge

    3. Open the charge port door. If you are charging a Tesla vehicle, press the button on the top of the Mobile Connector handle with your vehicle unlocked and in Park to open the charge port door.
  • Page 11 How to Charge NOTE: If you are charging a Tesla vehicle, your vehicle is unlocked when the key is nearby and automatic unlocking is enabled. You can also open the charge port door using any of these methods: ◦ Display the charging screen on your vehicle's touchscreen and touch Open Charge Port.

  • Page 12: Troubleshooting

    Troubleshooting Gen 2 Mobile Connector Status Lights When charging is in progress and conditions are normal, the Tesla logo lights illuminate sequentially and the red light is off. Identify problems by paying attention to these lights. In some cases, you may need to reset the device by unplugging the Mobile Connector from the vehicle or from the power outlet.
  • Page 13 Troubleshooting Green What it means What to do Lights Light Streaming 4 flashes Charging current is Make sure the power outlet is suitable for reduced due to high charging and that the plug is seated correctly. temperature detected in Consider connecting to a different outlet. If the wall plug.
  • Page 14 Troubleshooting Questions? chargingsupportemea@tesla.com http://tesla.com/support Owner's Manual...
  • Page 15 Publication Date: 2024/08/28...
