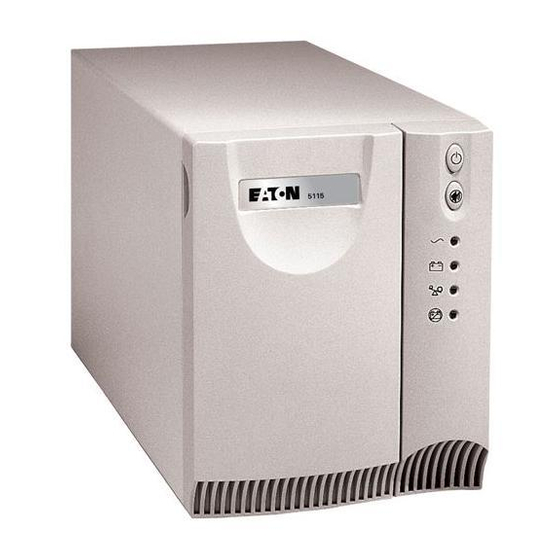

Powerware 5115 User Manual

500-1400 va
Hide thumbs Also See for 5115:
Table of Contents

Advertisement

Quick Links

See also: User Manual
02/15/01
®
Powerware
5115
User's Guide
500–1400 VA
www.powerware.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 5115 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Powerware 5115

Summary of Contents for Powerware 5115

  • Page 1 02/15/01 ® Powerware 5115 User’s Guide 500–1400 VA www.powerware.com...
  • Page 2 Powerware is a registered trademark and Advanced Battery Management (ABM) is a trademark of Powerware Corporation. C opyright 2000 Powerware Corporation, Raleigh, NC, USA. All rights reserved. No part of this document may be reproduced in any way without the express written approval of Powerware Corporation.
  • Page 3 ® Powerware 5115 User’s Guide 500–1400 VA www.powerware.com...

  • Page 4: Special Symbols

    Special Symbols The following are examples of symbols used on the UPS to alert you to important information: RISK OF ELECTRIC SHOCK associated warning should be observed. CAUTION: REFER TO OPERATOR’S MANUAL additional information, such as important operating and maintenance instructions.

  • Page 5: Table Of Contents

    ABLE OF 1 Powerware 5115 – One of the Best! 2 Installation ........... . .
  • Page 6 Table of Contents Powerware 5115 User’s Guide www.powerware.com ®...

  • Page 7: Powerware 5115 - One Of The Best

    — causing hours of lost productivity and expensive repairs. With the Powerware 5115, you can safely eliminate the effects of power disturbances and guard the integrity of your equipment. The Powerware 5115’s flexibility to handle an array of network devices makes it the perfect choice to protect your LANs, servers, workstations, and other electrical equipment.
  • Page 8 ONE OF THE BEST Because an integral part of power protection is power management software, the Powerware 5115 comes fully equipped with a communication port, serial cable, and a CD containing both LanSafe III for networked systems and FailSafe III for standalone systems.

  • Page 9: Installation

    Powerware 5115 User’s Guide www.powerware.com ® I M P O R T A N T S A F E T Y I N S T R U C T I O N S...

  • Page 10: Installing The Ups

    UPS (see “Specifications” on page 23). You can also use the power cord from the largest load if it is correctly rated. W A R N I N G C (104 F). Do not operate near water or excessive ° ° Powerware 5115 User’s Guide ® www.powerware.com...
  • Page 11 NOTE The batteries charge to 90% capacity in approximately 3 hours. However, it is recommended that the batteries charge for 6 to 24 hours after installation or long-term storage. Powerware 5115 User’s Guide www.powerware.com ® 1 1 1 1 Connect communication...

  • Page 12: Ups Rear Panels

    Installation UPS Rear Panels This section shows the rear panels of the Powerware 5115 models. Site Wiring Fault Indicator Communication Port 6-ft Power Cord with 5-15 Plug Site Wiring Fault Indicator Communication Port Four 5-15 Receptacles Input Overcurrent 6-ft Power Cord...
  • Page 13 Four 5-15 Receptacles Input Overcurrent 6-ft Power Cord with 5-15 Plug Site Wiring Fault Indicator Communication Port 6-ft Power Cord Powerware 5115 User’s Guide www.powerware.com ® DIP Switches Protector Figure 5. 1000 VA, 120V Rear Panel DIP Switches with 5-15 Plug Figure 6.
  • Page 14 Figure 7. 500 VA, 230V Rear Panel Protector Figure 8. 750 VA, 230V Rear Panel Powerware Network Transient Protector Four 10A, IEC-320 Receptacles Input Overcurrent Protector 10A, IEC-320 Input Connector Network Transient Protector Four 10A, IEC-320 Receptacles 5115 User’s Guide www.powerware.com ®...
  • Page 15 Two 10A, IEC-320 Receptacles Input Overcurrent 10A, IEC-320 Input Connector Communication Port DIP Switches Input Overcurrent Powerware 5115 User’s Guide www.powerware.com ® Protector Figure 9. 1000 VA, 230V Rear Panel Protector Figure 10. 1400 VA, 230V Rear Panel Installation Network Transient...
  • Page 16 Installation Powerware 5115 User’s Guide www.powerware.com ®...

  • Page 17: Operation

    To turn off the UPS, press the unplug the UPS from the power outlet. If you do not unplug the UPS, it remains in Standby mode. Powerware 5115 User’s Guide www.powerware.com ® button on the front panel (shown in µ...

  • Page 18: Standby Mode

    On/Off Button Test/Alarm Reset Button Power On Indicator (Green) On Battery Indicator (Yellow) Overload Indicator (Red) Service Indicator (Red) Figure 11. UPS Front Panel button for three seconds to initiate the self-test. If Powerware 5115 User’s Guide ® www.powerware.com...

  • Page 19: Additional Ups Features

    UPS. 2. Set the DIP switches according to the configurations in Table 1. 3. Plug the UPS into a power outlet and press the turn the UPS on. Powerware 5115 User’s Guide www.powerware.com ® EATURES button on the front panel UPS Rear Panel Figure 12.

  • Page 20: Communication Port

    Input Voltage Range DIP Switch 1 99V-116V 108V–127V* 230V Models Input Voltage Range DIP Switch 1 198V–233V 207V–243V* 216V–254V UPS Rear Panel Figure 13. Communication Port Powerware 5115 User’s Guide ® DIP Switch 2 OFF/ON OFF/ON DIP Switch 2 OFF/ON www.powerware.com...

  • Page 21: Network Transient Protector

    PBX (Private Branch Exchange) environments. Connect the input connector of the equipment you are protecting to the jack labeled IN. Connect the output connector to the jack labeled OUT. Powerware 5115 User’s Guide www.powerware.com ® Signal Name Function Low Batt Low Battery relay contact;...
  • Page 22 Additional UPS Features Powerware 5115 User’s Guide www.powerware.com ®...

  • Page 23: Ups Maintenance

    6 months by plugging the UPS into a power outlet. The batteries charge to 90% capacity in approximately 3 hours. However, it is recommended that the batteries charge for 6 to 24 hours after long-term storage. Powerware 5115 User’s Guide www.powerware.com ®...

  • Page 24: Replacing Batteries

    Pull the battery out onto a flat, stable surface. The battery is unsupported when you pull it out of the UPS. W A R N I N G C A U T I O N Powerware 5115 User’s Guide ® www.powerware.com...
  • Page 25 2. Slide up and remove the metal battery cover. 500 VA units. disconnect the black battery cable. Pull the battery out onto a flat, stable surface. Powerware 5115 User’s Guide www.powerware.com ® Disconnect the red battery cable and then UPS Maintenance...
  • Page 26 UPS Maintenance 750–1400 VA units. the battery out onto a flat, stable surface. Disconnect the black battery cable to the UPS as shown. 750/1000 VA 1400 VA Disconnect the red battery cable and then pull Powerware 5115 User’s Guide ® www.powerware.com...

  • Page 27: Testing New Batteries

    Do not discard the UPS or the UPS batteries in the trash. This product contains sealed, lead-acid batteries and must be disposed of properly. For more information, contact your local recycling or hazardous waste center. Powerware 5115 User’s Guide www.powerware.com ® button for three seconds to initiate a self-test.
  • Page 28 UPS Maintenance Powerware 5115 User’s Guide www.powerware.com ®...

  • Page 29: Specifications

    C H A P T E R 6 PECIFICATIONS This section provides the following specifications for the Powerware 5115 models: Weights and dimensions Electrical input and output Environmental and safety Battery Table 3. Model List and Mechanical UPS Models UPS Dimensions...
  • Page 30 500–750 VA: (4) 10A, IEC-320 1000–1400 VA: (6) 10A, IEC-320 230V Models UL 1778, UL 497A (data line only); CAN/CSA C22.2, No. 107.1; EN 50091-1-1 and IEC 60950 UL, cUL, CE, TUV, C-Tick EN 50091-2, FCC Part 15, ICES-003 5115 User’s Guide www.powerware.com ®...
  • Page 31 Battery times are approximate and may vary depending on the load configuration and battery charge. N N N N O O O O T T T T E E E E Powerware 5115 User’s Guide www.powerware.com ® UPS Models by VA Ratings...
  • Page 32 Specifications Powerware 5115 User’s Guide www.powerware.com ®...

  • Page 33: Troubleshooting

    The alarm does not silence if there is a UPS fault, low battery condition, or if the battery needs to be replaced. Powerware 5115 User’s Guide www.powerware.com ® button. If UPS...
  • Page 34 2 minutes or less of battery power remains (depending on load and battery charge). Prepare for a shutdown. Save your work and turn off your equipment. The alarm cannot be silenced. Powerware button, if the alarm beeps, 5115 User’s Guide www.powerware.com ®...
  • Page 35 UPS internal temperature is too high. Continuous beep. UPS fan fault (750–1400 VA models only). Powerware 5115 User’s Guide www.powerware.com ® Troubleshooting Action Correct the input voltage, if possible. The UPS continues to operate on battery until the condition is corrected or the battery is completely discharged.
  • Page 36 Shutdown is imminent. Save your work and turn off your equipment. Turn off the UPS. Contact your service representative. Save your work and turn off your equipment. Turn off the UPS. Contact your service representative. Powerware 5115 User’s Guide www.powerware.com ®...

  • Page 37: Service And Support

    A replacement or repair unit will be shipped, freight prepaid for all warrantied units. NOTE For critical applications, immediate replacement may be available. Call the Help Desk Powerware 5115 User’s Guide www.powerware.com ® or the at one of the following telephone numbers...
  • Page 38 Troubleshooting Powerware 5115 User’s Guide www.powerware.com ®...
