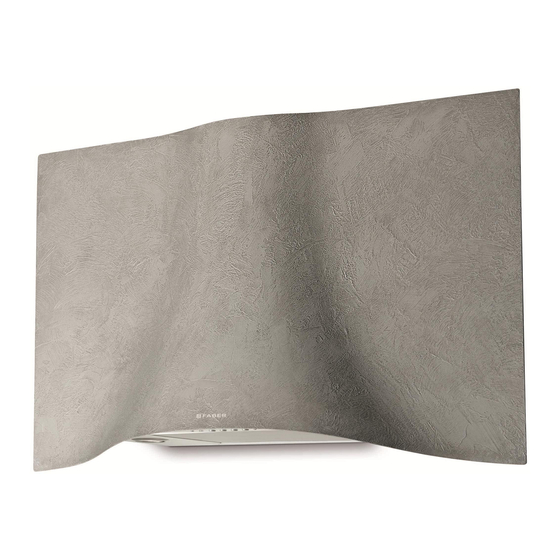

- Page 1 Priro nik za uporabo Libretto di Istruzioni Instructions Manual Príru ka na obsluhu Bedienungsanleitung Uputstva za Korištenje Manual de instrucciones Uživatelská Pøíruèka Instrukcja Obs ugi Käyttöohje Brugsvejledning Bruksanvisning...
-
Page 2: Recommendations And Suggestions
RECOMMENDATIONS AND SUGGESTIONS The Instructions for Use apply to several versions of this appliance. Accordingly, you may find descriptions of individual features that do not apply to your specific appliance. INSTALLATION • The manufacturer will not be held liable for any damages resulting from incorrect or improper installation. - Page 3 • If the instructions for installation for the gas hob specify a greater distance specified above, this has to be taken into account. Regulations concerning the discharge of air have to be fulfilled. • Use only screws and small parts in support of the hood. Warning: Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards.
-
Page 4: Maintenance
• “CAUTION: Accessible parts may become hot when used with cooking appliances.” MAINTENANCE • Switch off or unplug the appliance from the mains supply before carrying out any maintenance work. • Clean and/or replace the Filters after the specified time period (Fire hazard). •... - Page 5 CHARACTERISTICS Dimensions Components Ref. Q.ty Product Components Hood Canopy complete with: Controls, Light, Fan unit, Filters Telescopic chimney, made up of: Upper Chimney Lower Chimney Air outlet grid D.150 Damper D.150-120 Hood Canopy Air Outlet Extension made up of 2 half-elements Ref.
- Page 6 INSTALLATION Drilling the Wall and Fixing the Brackets 240 240 200 200 Draw the following on the Wall: • a Vertical line up to the ceiling or top surface, at the centre of the area in which the Hood is to be fitted;...
- Page 7 Fitting the Hood canopy • Remove the Metal grease filter using the handles provided. • Adjust the two screws Vr, in the brackets 11a, so that they are at the start of their travel. • Hook the hood body to the two brackets 11a. •...
-
Page 8: Electrical Connection
Fitting the Chimney Lift the 2 tabs formed on the Hood Canopy close to the air outlet opening. Upper chimney • Open the two side pieces out slightly, hook them up behind the brackets 7.2.1 and bring them back together again until they are in contact. •... - Page 9 Control panel BUTTON FUNCTIONS T1 Speed Turns the Motor on at Speed one. Turns the Motor off. T2 Speed Turns the Motor on at Speed two. T3 Speed Fixed When pressed briefly, turns the Motor on at Speed three. Flashing Pressed for 2 Seconds.
-
Page 10: Replacing The Activated Charcoal Filter
MAINTENANCE Grease filters CLEANING METAL SELF- SUPPORTING GREASE FILTERS • The filters must be cleaned every 2 months of operation, or more frequently for particularly heavy usage, and can be washed in a dishwasher. • Remove the filters one at a time by pushing them towards the back of the group and pulling down at the same time.
