READ THESE INSTRUCTIONS BEFORE YOU START INSTALLING THIS RANGEHOOD
WARNING: - TO REDUCE THE RISK OF A RANGE TOP GREASE FIRE: a) Never leave surface units unattended
at high settings. Boilovers cause smoking and greasy spillovers that may ignite. Heat oils slowly on low or
medium setting. b) Always turn hood ON when cooking at high heat or when flambeing food (i.e. Crepes Su-
zette, Cherries Jubilee, Peppercorn Beef Flambé). c) Clean ventilating fans frequently. Grease should not be
allowed to accumulate on fan or filter. d) Use proper pan size. Always use cookware appropriate for the size
of the surface element.
WARNING: - TO REDUCE THE RISK OF INJURY TO PERSONS IN THE EVENT OF A RANGE TOP GREASE FIRE,
OBSERVE THE FOLLOWING (
turn off the burner. BE CAREFUL TO PREVENT BURNS. If the flames do not go out immediately EVACUATE
AND CALL THE FIRE DEPARTMENT. b) NEVER PICK UP A FLAMING PAN - You may be burned. c) DO NOT
USE WATER, including wet dishcloths or towels - a violent steam explosion will result. d) Use an extinguisher
ONLY if: 1) You know you have a Class ABC extinguisher, and you already know how to operate it. 2) The fire
is small and contained in the area where it started. 3) The fire department is being called. 4) You can fight the
fire with your back to an exit. (*) Based on "Kitchen Firesafety Tips" published by NFPA.
ALL WALL AND FLOOR OPENINGS WHERE THE RANGEHOOD IS INSTALLED MUST BE SEALED.
This rangehood requires at least 24" of clearance between the bottom of the rangehood and the cooking surface or
countertop. This minimum clearance may be higher depending on local building code. For example, for gas ranges, a
minimum of 30" may be required. The maximum depth of overhead cabinets is 13". Overhead cabinets on both sides
of this unit must be a minimum of 18" above the cooking surface or countertop. Consult the cooktop or range installation
instructions given by the manufacturer before making any cutouts.
AVERTISSEMENT - POUR MINIMISER LE RISQUE D'UN FEU DE GRAISSE SUR LA TABLE DE CUISSON : a) Ne
jamais laisser un élément de la table de cuisson fonctionner sans surveillance à la puissance de chauffage maxi-
male; un renversement/débordement de matière graisseuse pourrait provoquer une inflammation et le génération
de fumée. Utiliser toujours une puissance de chauffage moyenne ou basse pour le chauffage d'huile. b) Veiller à
toujours faire fonctionner le ventilateur de la hotte lors d'une cuisson avec une puissance de chauffage élevée
ou lors de la cuisson d'un mets à flamber (i.e. Crepes Suzette, Cherries Jubilee, Peppercorn Beef Flambé). c)
Nettoyer fréquemment les ventilateurs d'extraction. Veiller à ne pas laisser de la graisse s'accumuler sur les
surfaces du ventilateur ou des filtres. d) Utiliser toujours un ustensile de taille appropriée. Utiliser toujours un
ustensile de taille adapté à la taille de l'élément chauffant.
AVERTISSEMENT: - POUR PRÉVENIR LES BLESSURES EN CAS DE FEU SUIVRE LES RECOMMANDATIONS
*)
SUIVANTES (
: a) ÉTOUFFEZ LE FEU avec un couvercle métallique et fermez le brûleur. Si le feu ne s'éteint
pas tout de suite, QUITTEZ LES LIEUX ET APPELEZ LES POMPIERS. b) NE TOUCHEZ JAMAIS UNE CASSEROLE
EN FLAMMES. c) N'UTILISEZ JAMAIS DE L'EAU ou un torchon mouillé pour éteindre le feu - ce qui pourrait
causer une explosion de vapeur. d) N'utilisez un extincteur que si: 1. Vous avez un modèle ABC et vous con-
naissez bien son mode d'emploi. 2. Le feu est petit et peu répandu. 3. Les pompiers sont déjà prévenus. 4.
Vous avez une sortie derrière vous. (*) Basé sur la "cuisine Firesafety incline" édité par NFPA.
TOUTE OUVERTURE DANS LE MUR OU LE PLANCHER À PROXIMITÉ DE LA HOTTE DOIT ÊTRE
Gardez 24 po. de hauteur entre le bas de la hotte et la surface de cuisson. Cette hauteur minimum peut être plus haute
suivant le code municipal. Par exemple, les cuisinières à gaz peuvent requérir 30 po. de hauteur. Les armoires au-
dessus ne dépasseront pas 13 po. de profondeur. Les armoires au-dessus de chaque côté devront être au moins à 18
po. au-dessus de la surface de cuisson. Consultez la fiche technique avant de découper les armoires.
*)
: a) SMOTHER FLAMES with a close-fitting lid, cookie sheet, or metal tray, then
LISEZ BIEN CETTE FICHE AVANT D'INSTALLER LA HOTTE

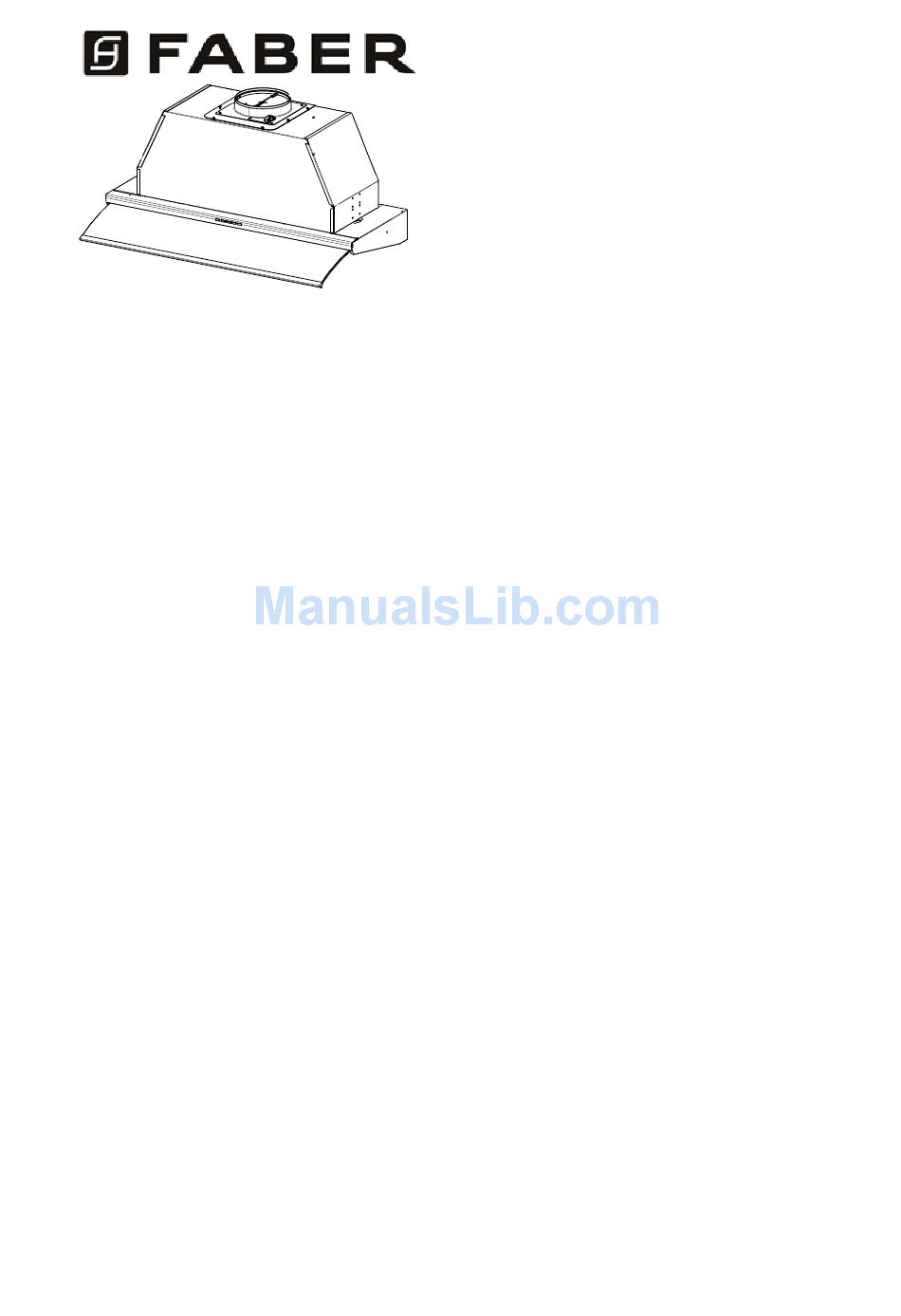

VELVET
Glass Slideout Rangehood

• Installation Instructions

• Use and Care Information

READ AND SAVE THESE INSTRUCTIONS
The Installer must leave these instructions with the homeowner.
The homeowner must keep these instructions for future reference
and for local electrical inspectors' use.
SCELLÉ
Version 07/11 - Page 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Velvet 630006509 and is the answer not in the manual?

Questions and answers

Summary of Contents for Faber Velvet 630006509

  • Page 1: Installation Instructions

    READ THESE INSTRUCTIONS BEFORE YOU START INSTALLING THIS RANGEHOOD WARNING: - TO REDUCE THE RISK OF A RANGE TOP GREASE FIRE: a) Never leave surface units unattended at high settings. Boilovers cause smoking and greasy spillovers that may ignite. Heat oils slowly on low or medium setting.
  • Page 2 VENTING REQUIREMENTS Determine which venting method is best for your application. Ductwork can extend either through the wall or the roof. The length of the ductwork and the number of elbows should be kept to a minimum to provide efficient performance. The size of the ductwork should be uniform.
  • Page 3 RÈGLEMENTS D'ÉVACUATION Confirmer la sortie d'évacuation - soit par le mur, soit par le toit. Utilisez une longueur de tuyauterie minimale avec les moindres de coudes pour la plus grande efficacité. Le diamètre de tuyauterie doit être uniforme. N'installez jamais 2 coudes ensemble.
  • Page 4 Pre-Planning Your Installation - Important: The recommended height to install this hood off the cooktop is a minimum of 24" and a maximum of 30” for maximum effectiveness. Also consult the cooktop manufacturer’s recommendation. CAUTION To reduce risk of fire and to properly exhaust air, be sure to duct the air outside –...
  • Page 5: Plan The Ductwork

    TOOLS NEEDED FOR INSTALLATION • Saber Saw or Jig Saw • Drill • 1 1/4" Wood Drill Bit • Pliers • Phillips Screwdriver • Wire Stripper or Utility Knife • Metal Snips • Measuring Tape or Ruler • Level • Pencil •...
  • Page 6: Prepare The Cabinet

    PREPARE THE CABINET Disconnect and move freestanding range from cabinet opening to provide easier access to upper cabinet and rear wall. Put a thick, protective covering over cooktops, set-in ranges or countertops to protect from damage or dirt. Determine and clearly mark with a pencil the center line of the cabinet on the wall and on the underside of the cabinet where the rangehood will be installed.
  • Page 7 INSTALL THE RANGEHOOD CONTINUED The field wiring box is located on the inside the rangehood, insert your power supply cable thru the knock holes located on the top or back of the rangehood body. Remove the cover from the field wiring compartment with a phillips screwdriver.
  • Page 8 WIRING DIAGRAM / DIAGRAMME DE FILAGE The Velvet uses (2) - 20 watt, 12 volt bi-pin halogen bulbs type G4. La hotte Velvet utilise (2) – ampoules halogènes de type G4, 20 watts, 12 volts. Version 07/11 - Page 8...
  • Page 9 To obtain warranty service, contact the dealer from whom you purchased the rangehood, or the local Faber distributor. If you cannot identify a local Faber distributor, contact us at (508) 358-5353 for the name of a distributor in your area.
  • Page 10 DIMENSIONS DE LA HOTTE CUT-OUT Planifiez votre installation - Important : La hauteur recommandée pour installer cette hotte au-dessus de la surface de cuisson est d’un minimum de 24” et d’un maximum de 30” pour un maximum d’efficacité. De plus, nous vous recommandons consulter le manuel de recomman- dations du fabricant de la surface de cuisson.
  • Page 11 OUTILS NÉCESSAIRES À L’INSTALLATION • Scie sauteuse ou à découper • Perceuse • Mèche à bois 1 1/4 po • Pinces • Tournevis Phillips • Dénude fil ou couteau tout usage • Pince coupante à fil métallique • Ruban à mesurer ou règle •...
  • Page 12: Préparation De L'armoire

    PRÉPARATION DE L'ARMOIRE Débrancher et enlever la cuisinière afin d’avoir un meil- leur accès aux armoires supérieures et au mur arrière. Placer un recouvrement épais sur la plaque de cuisson, la cuisinière encastrée ou le dessus du comptoir pour protéger des dommages et de la poussière.
  • Page 13 INSTALLATION DE LA HOTTE 8) Retirer le couvercle du compartiment de filage. Passer le câble d’alimentation dans la pastille enfonçable. Attacher le fil blanc du câble d’alimentation sur le fil blanc de la hotte avec une cosse. Attacher le fil noir du câble d’alimentation au fil noir de la hotte avec une cosse.
  • Page 14 Afin d’obtenir un service sous garantie, communiquer avec le marchand où la hotte a été achetée ou le distributeur Faber de la région. Si l’on ne peut trouver de distributeur Faber, communiquer avec nous au (508) 358-5353 afin d’obtenir le nom d’un distributeur dans la région.
