Savant HST-STUDIOBG-2CH Series Quick Reference Manual

Savant® IP Audio Studio with Integrated Host and Grille - Black Quick Reference Guide
HST-STUDIOxxBG-2CH-xx
Product Specific Contents
IP Audio Studio SoundBar 46 [HST-STUDIO46BG-2CH]
(1) Soundbar (093-3100-xx)
(1) Standard Grille (093-3225-xx)
IP Audio Studio SoundBar 55 [HST-STUDIO55BG-2CH]
(1) Soundbar (093-3102-xx)
(1) Standard Grille (093-3226-xx)
Universal Box Contents
(2) 6-Pin Control Connector (028-9352-xx)
(1) Power Cord (064-0480-xx)
(1) Install Kit (075-0256-xx)
(1) Pair of White Gloves (099-0348-xx)
(2) Wall Mounting Bracket (071-1130-xx)
(1) 3mm Allen Wrench (015-0222-xx)
(8) M5x10mm hex screw (039-0440-xx)
(4) 25mm Washer 5mm ID (039-0437-xx)
(2) 50x90 Bracket Extension (071-1112-xx)
(2) 70x90 Bracket Extension (071-1113-xx)
(2) 6-pin Control Connector (028-9352-xx)
(2) Plastic Feet (073-1030-xx)
(2) Rubber Pads for Feet (073-0014-xx)
(1) Product Regulatory Insert (009-1950-xx)
Optional Accessories (sold separately)
–
Soundbar TV Mount Hardware (MNT-STUDIO-TV-xx)
– Custom Grilles matched to Flat Panel TV

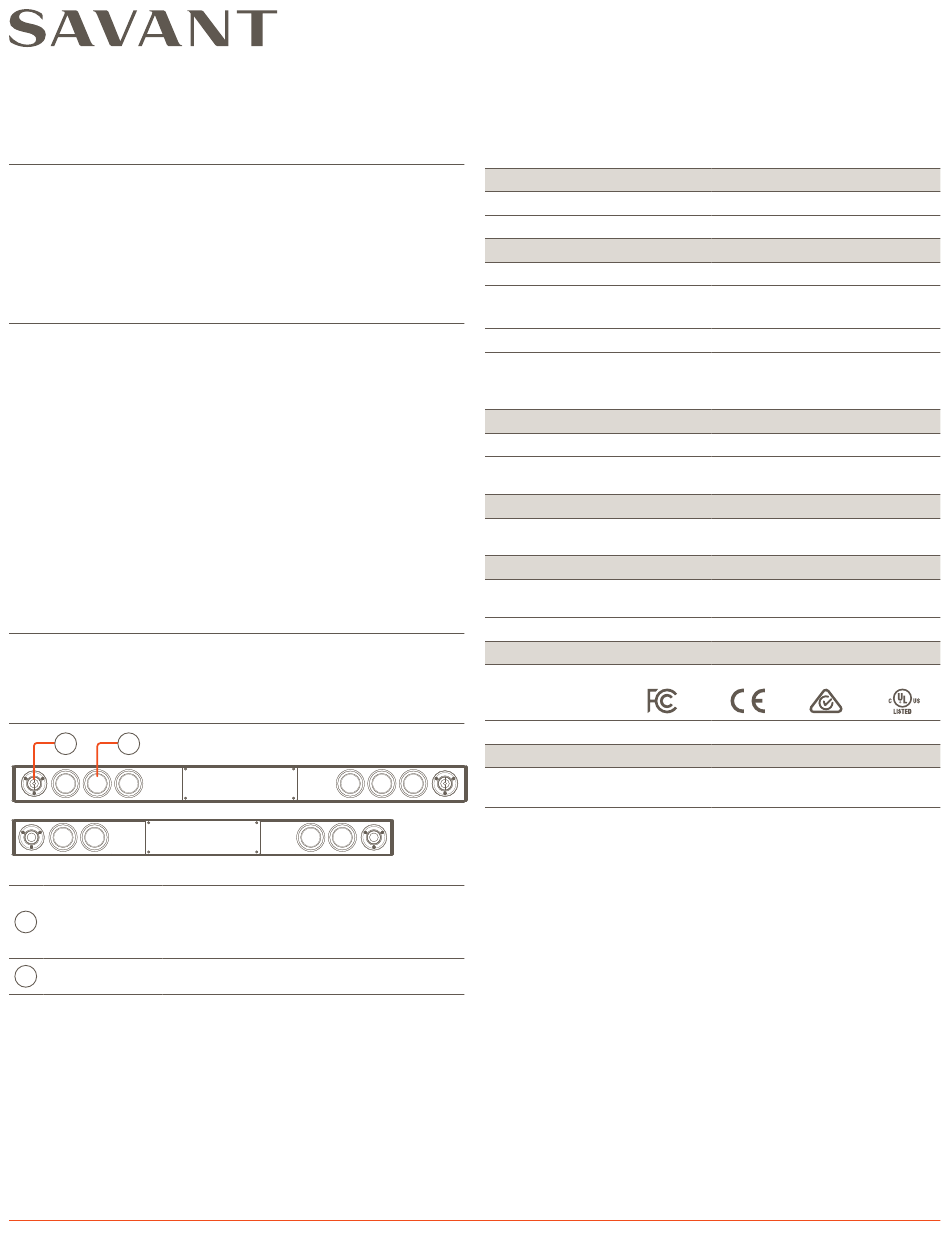

Front Panel
A B
HST-STUDIO55BG-2CH-xx
HST-STUDIO46BG-2CH-xx
STUDIO46:
(2) 25 mm Vifa DX Super Audio Tweeters
A
Front Tweeters
STUDIO55:
(2) 25 mm Vifa XT Super Audio Tweeters
Midrange/ (4 or 6) 89 mm Long Throw Carbon Fiber
B
Woofers Midrange/Woofers
IP Audio Studio with Integrated Host QRG | 009-1835-03
Copyright 2020 Savant Systems, Inc | 210830
Specifications
Environmental
Temperature
Humidity
Dimensions and Weight
Height
Width
Depth
Weight
Power
Input Power
Maximum Power
Draw
Networking
Supported
Standard
Operating Parameters
Frequency
Response
Sensitivity
Regulatory
Safety and
Emissions
RoHS
Minimum Support Requirements
Software
Release
1 of 2
32° to 104° F (0° to 40° C)
10% to 90% Relative Humidity (non-condensing)
4.67 in (11.87 cm) with grille
STUDIO46 with grille 45.4" (11.53cm)
STUDIO55 with grille 54.1" (137.41cm)
2.77 in (7.04 cm) with grille
Shipping:
STUDIO46 22.6 lb (10.3 kg)
STUDIO55 29.3 lb (13.3 kg)
100/240V AC (50/60 Hz)
250W
IEEE 802.1 AVB/TSN switches
80 Hz - 40 kHz +/- 3 dB
89 dB @ 2.83V/1 meter
FCC Part 15B CE Mark
Compliant
da Vinci 9.1
45 Perseverance Way, Hyannis, MA 02601
Savant.com
C-Tick UL
| 508.683.2500
