Savant® IP Audio 50 with Savant Music (PAV-SIPA50SM / PAV-SIPA50SMV2)
Quick Reference Guide
Box Contents
(1)
Savant IP Audio 50 (PAV-SIPA50SM-xx / PAV-SIPA50SMV2-xx)
(2)
Enclosure Bracket (071-1103-xx)
(1)
2U Rack Bracket (071-1102-xx)
(1)
Power Cord (064-0079-xx)
(4) #10x½ Screw (039-0405-xx)
(4) Push Rivet (039-0406-xx)
(6)
M4 Screw (039-0403-xx)
(4) 4-pin Speaker Connector (028-0702-xx)
(2)
4-pin IR Connector (028-0703-xx)
(4) Rubber Feet (074-0655-xx)
(4) M3 Feet Screw (039-0407-xx)
(1)
Product Regulatory Statement (009-1950-xx)
Specifications
Environmental
Temperature
32° to 104° F (0° to 40° C)
10% to 80% Relative Humidity
Humidity
(non-condensing)
Maximum BTU
750 BTU/HR
Dimensions
Height
Device
3.03 in
(7.69 cm)
Shipping
8.27 in
(21.0 cm)
Rack Space
2U
Power
Input Power
100/240V AC (50/60 Hz) 3.6A
Maximum Power
225W
Operating Parameters
50 WPC at 8 ohms (THD+N < 0.1%)
Rated Power
(Speaker Output)
70 WPC at 8 ohms (THD+N < 1.0%)
Frequency
20 Hz - 20 kHz +/- 0.5 dB, speaker output
Response
Signal-to-Noise
>95 dB, speaker output
Ratio (SNR)
Supported Digital
44.1 kHz / 48 kHz / 96 kHz at 16-bit / 20-bit /
Input Formats
24-bit resolution
Networking
Supported
IEEE 802.1 AVB/TSN switches
Standard
IEEE 802.3 Ethernet
Regulatory
FCC Part 15B
Safety and
Emissions
RoHS
Compliant
Supported Releases
PAV-SIPA50SM-xx
da Vinci 8.8 and higher
da Vinci 9.4.2 and higher
PAV-SIPA50SMV2-xx
Music Streaming
The Savant IP Audio 50 has a built-in single stream of Savant Music for easy
access to popular music streaming services. (Streaming service fees may
apply.)
PAV-SIPA50SM / PAV-SIPA50SMV2 Quick Reference Guide | 009-1658-03
Copyright 2021 Savant Systems Inc. | 210719
Width
Depth
Weight
12.00 in
14.17 in
10.6 lb
(30.5 cm)
(36.0 cm)
(4.81 kg)
15.55 in
19.41 in
15.1 lb
(39.5 cm)
(49.3 cm)
(6.83 kg)
CE Mark
C-Tick
UL
UKCA

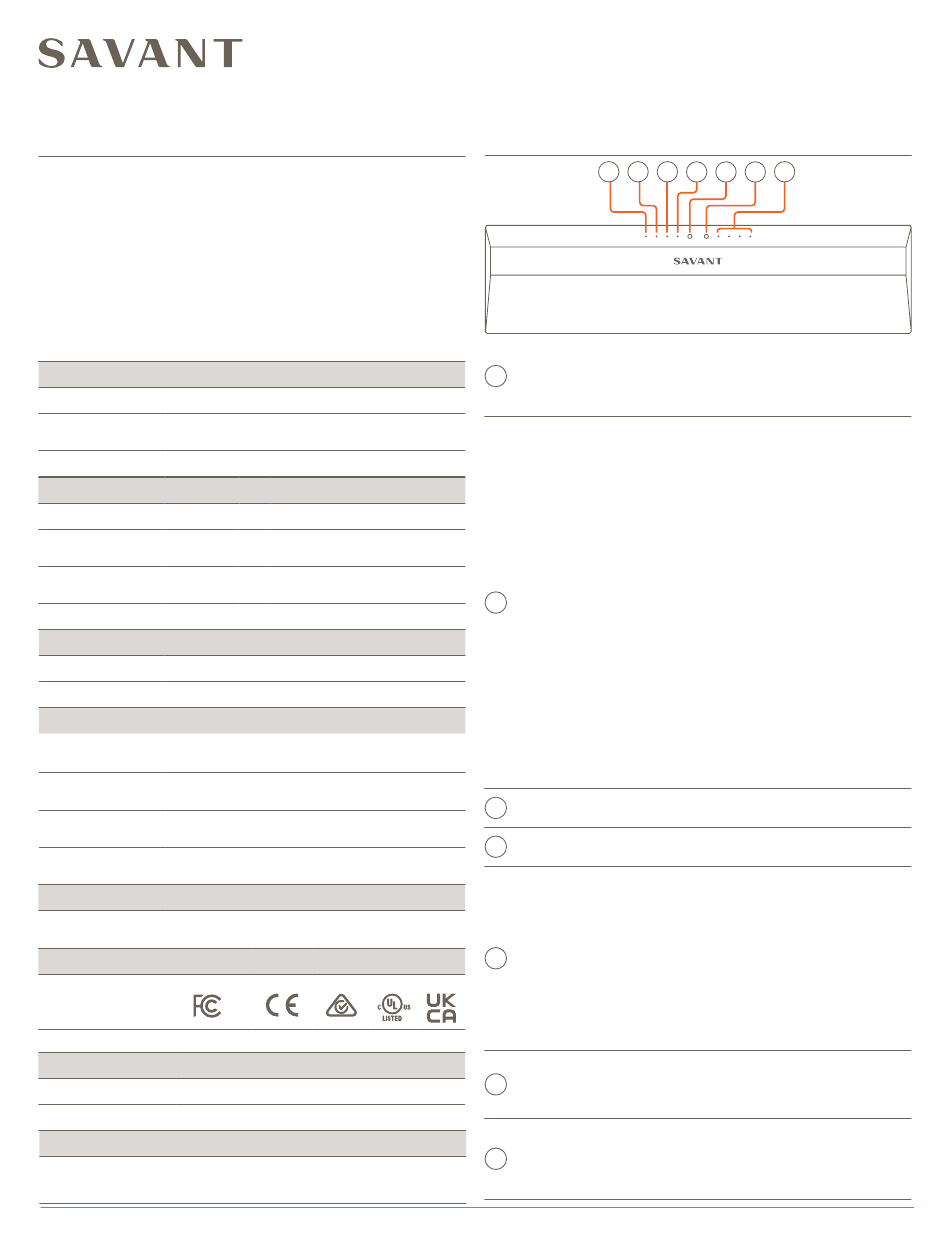

Front Panel
A
B
Green: System has power and is operating
normally.
A
Power LED
Red: System is in standby mode and most of the
controller circuitry is powered down.
Off: System is not receiving power.
Green Blinking: Embedded system is ready, but
no communication has been established with the
host.
Green: Host has established communications
with the embedded system.
Red Blinking: Embedded firmware is running, but
has not received a DHCP IP Address.
Red: Host has determined the firmware needs to
be updated, but a problem occurred during the
process that will initiate a reset.
Amber Blinking: Embedded system has a valid
link local IP Address and is connecting to the
B
Status LED
host.
Amber: Host is updating the embedded
firmware.
Off: Embedded processor is resetting, or is
powered up, and is booting the embedded
firmware.
Hardware Failure: If a hardware failure occurs,
the status LED indication will be interrupted
every three seconds with a solid red indication.
For example, if the LED is blinking green when a
hardware failure occurs, the LED will
alternate between blinking green and solid red at
three-second intervals.
Green: RS-232 serial port activity.
C
RS232 LED
Off: No RS-232 serial port activity.
Green: IR port signal activity.
D
IR LED
Off: No IR port activity.
On: Fully enables all internal power rails and
processor.
Off: Disables most internal power rails and
processor, but not internal AC/DC power supply.
Hold On/Off button for about 5 seconds to place
On/Off
into standby mode. The Power LED turns red.
E
Button
Hold On/Off button for about 1 second to take
system out of standby mode. The I/O power
switch on the back of unit must be On (I) to
enable this function. To turn the power off for the
entire system, press the I/O power switch on the
rear panel to Off [O].
Resets the network.
Hold Reset Button for 5 seconds while powered
F
Reset Button
Onto clear network settings. Status LED will
rapidly blink red when reset is complete.
Red: Protection mode has been enabled to
protect a zone/channel; typically indicates
Zone
G
thermal protection, clipping or over current.
Protection
Off: Zone is off and protection mode has not
been enabled.
1
of
3
C
D
E
F
G
45 Perseverance Way, Hyannis, MA 02601
Savant.com
| 508.683.2500
