emz smart Sol Operating Instructions Manual page 27

Hide thumbs Also See for smart Sol:
Table of Contents

Advertisement

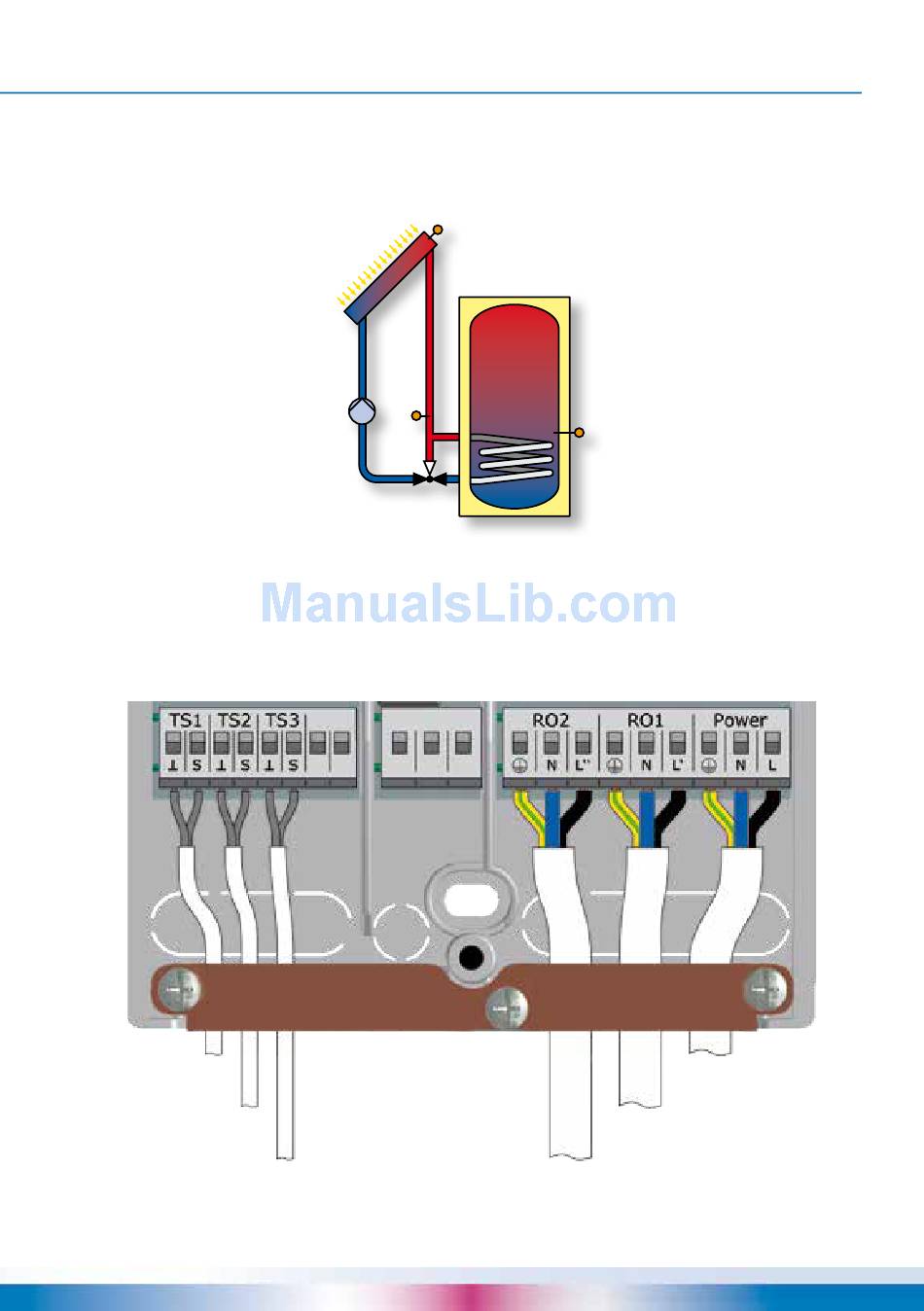

Collector sensor 1
Tank sensor 1, bottom
Bypass sensor
TS1
Collector
sensor 1
Bypass
sensor
TS3
RO1
Solar
circuit
pump 1
RO2
Bypass valve
HYDRAULIC SYSTEM 7
Tank 1
T1
TS2
Tank
sensor 1,
bottom
Solar circuit pump 1
Bypass valve
Page 27
Connection to
power supply
