G3 GEMINI
INTELLIFRESH
BREWER
®
®
TROUBLESHOOTING GUIDE
GEMTIF10A1000
GEMSIF10A1000

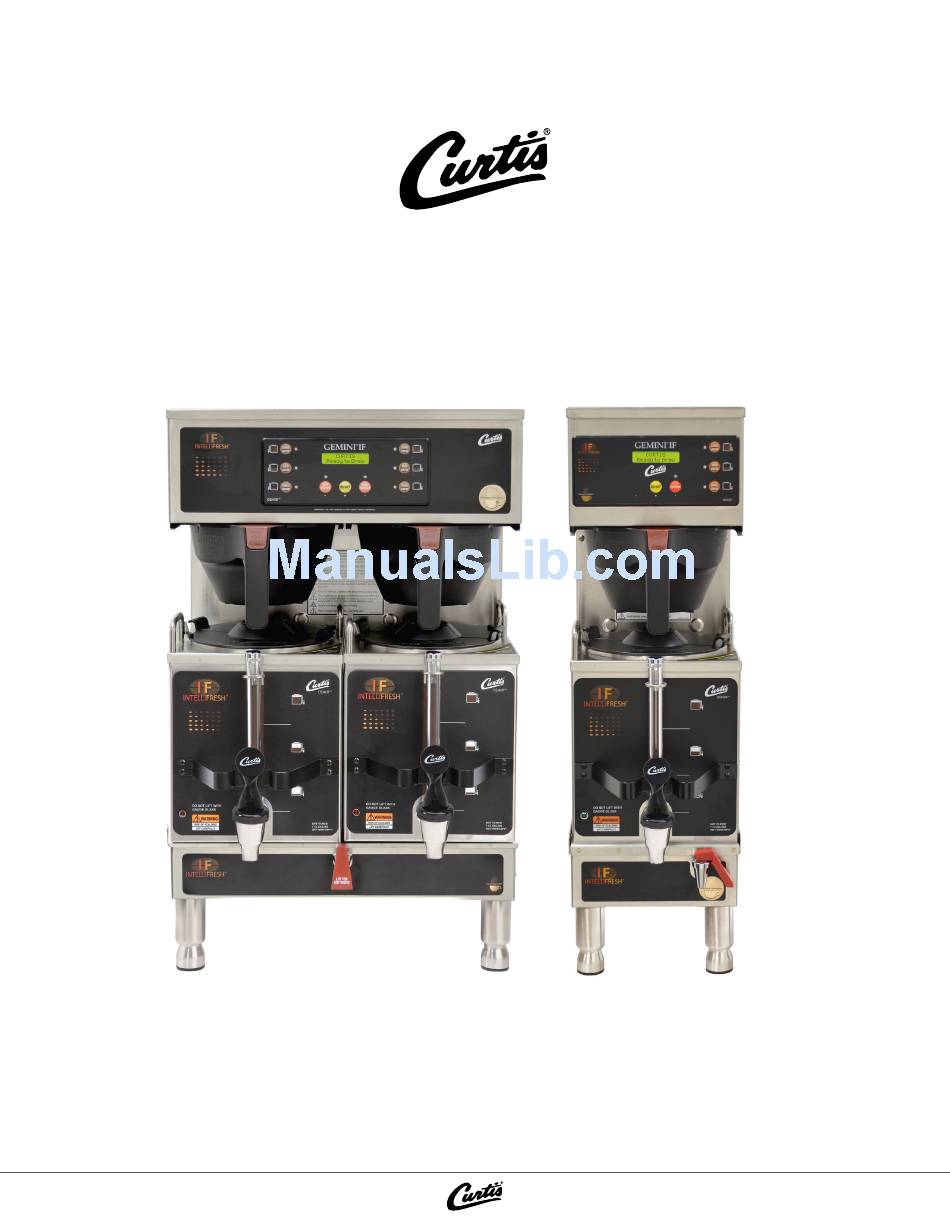

G3 Twin 1.5 Gallon Satellite Brewer
G3 Single 1.5 Gallon Satellite Brewer
with IntelliFresh
with IntelliFresh
®
®
Service & Sales
www.wilburcurtis.com
1-800-421-6150

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GEMTIF10A1000 and is the answer not in the manual?

Questions and answers

Summary of Contents for Curtis GEMTIF10A1000

  • Page 1 G3 GEMINI INTELLIFRESH BREWER ® ® TROUBLESHOOTING GUIDE GEMTIF10A1000 GEMSIF10A1000 G3 Twin 1.5 Gallon Satellite Brewer G3 Single 1.5 Gallon Satellite Brewer with IntelliFresh with IntelliFresh ® ® Service & Sales www.wilburcurtis.com 1-800-421-6150...
  • Page 3 BREWER PARTS IDENTIFICATION PART # DESCRIPTION PART # DESCRIPTION 1. WC-844-101 VALVE, ADJ BY-PASS 12. WC-522 THERMOSTAT, RESET 2. WC-37388 KIT, LABEL & UCM 13. WC-102 SWITCH, TOGGLE 125/250VAC RST 3. WC-29050 SPRAY HEAD ASSY, ADVANCED FLOW 14. WC-1438-101 SENSOR, HEATING TANK 4.
  • Page 4 PARTS IMAGES WC-844-101 WC-39388 WC-29050 WC-847 VALVE, ADJ BY-PASS KIT, LABEL & UCM SPRAY HEAD ASSY, ADVANCED FLOW VALVE, WATER INLET 2GPM 120V 10W WC-1501 WC-37121 WC-1809 WC-8559 FUSE HOLDER W/5A FUSE KIT, DUMP VALVE LEFT FAUCET, PS/HPS SERIES HOT WATER RELAY, SOLID STATE 40A W/HEAT SINK WC-5350 WC-5527K...
  • Page 5 TROUBLESHOOTING INSTRUCTIONS HEATING ISSUES Not heating: Overheating: LCD reads “Heating” LCD reads “Heating” Verify 220 volts between L1-L2 on the Verify that the resistance on the Temperature power block. If yes, proceed to #2. If no, Sensor is less than 10k ohms with a hot tank verify that the unit is plugged in correctly, (200+ degrees) If no, verify correct mounting and and the panel breaker is turned on.
  • Page 6 TROUBLESHOOTING INSTRUCTIONS - continued BREWING ISSUES LCD does not read “Brewing” Short Pots: If the LCD reads “Ready to Brew” and no Verify that the Dump Valve outlet fitting on the response when Brew Button is pressed, replace tank, the tubing between the tank outlet and the the UCM.
  • Page 7 NOTES __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ Service & Sales www.wilburcurtis.com 1-800-421-6150...
  • Page 8 Wilbur Curtis Co., Inc. 6913 Acco Street, Montebello CA 90640 Customer Service: 800.421.6150 | 323.837.2300 csrassistance@wilburcurtis.com Tech Support: 800.995.0417 www.wilburcurtis.com JAN/2016 M203_TS_WC_GEMIF_revNC...
