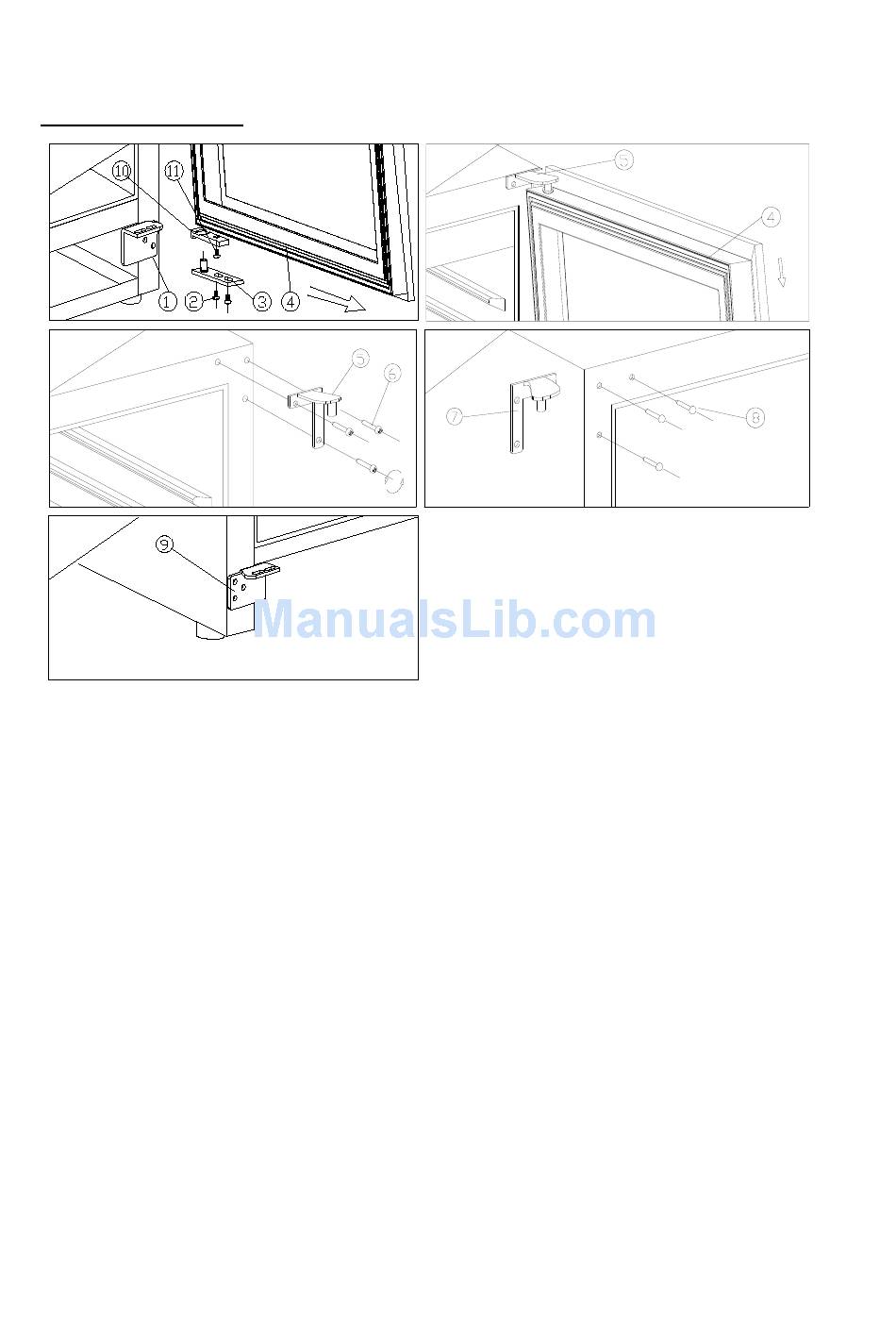

For ARC1300/ ARC1400
Fig.A
Fig.C
Fig.E
Lower hinge (Right)
Door
Top hinge (Left)
Stopping plate
1. Open the door to a 90 degree angle, unscrew the 2 screws
door
, Remove the axis plate
2. Unscrew the screw
install them to the left side for left hinged installation. (Fig. A & B)
3. Unscrew 3 screws
4. Remove decorative nail
cabinet with 3 screws. (Fig. D)
5. Repeat the same procedure (1-3) to re-install the upper and lower hinge and parts
6. Install and align the door.
Insert the plastic caps to cover the holes for top right hinge.
Screws
Top hinge (Right)
Decorative nail
Screw
from the door, (Fig. A).
located underneath the door frame and the Stopping plate
from the top hinge (right)
from left top of cabinet and install spare top hinge (Left)
Fig.B
Fig.D
from lower door axis
. (Fig. C)
9
Door axis
Hinge Screws
Lower hinge (Left)
, remove the
. Put them Re-
at left top of
. (Fig. E)
