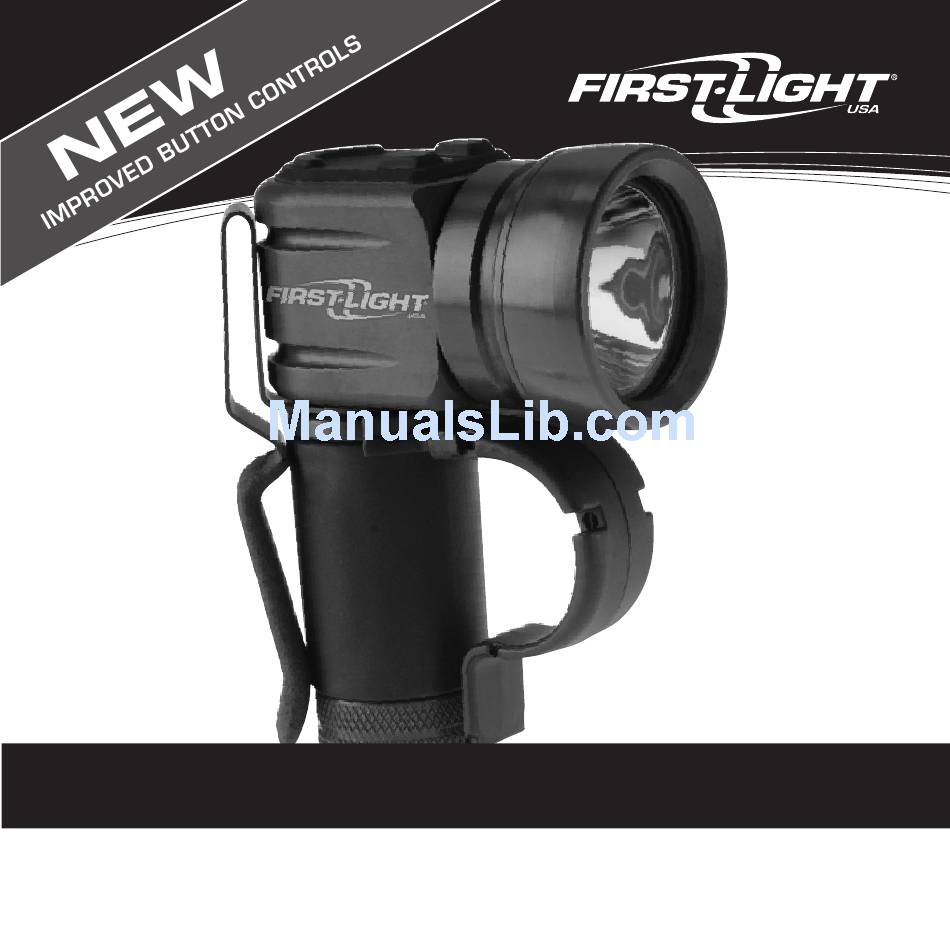

- Page 1 TOMAHAWK ® USER MANUAL...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Specifications ....................... 1 Components ......................... 3 Battery Installation ......................3 Basic Functions ......................4 Lockout/Ready Mode ....................4 Momentary Mode ....................5 Primary Control ....................... 5 Secondary Control ....................6 Low Battery Indication ....................6 Finger Loop ........................7 Steel Belt Clip ....................... -
Page 3: Specifications
SPECIFICATIONS FL1 STANDARD HIGH MEDIUM WHITE FL1 STANDARD 220m 12,150cd Batteries ● (2) CR123 3-Volt Lithium Batteries, ANSI: 5018LC, IEC: CR17345 Environmental Specifications Normal Operating Temperatures: (-20°F) to 120°F ● Waterproof ●... - Page 4 Thank you for purchasing the First-Light USA Tomahawk Tactical Light. ® Please carefully review this manual prior to use. IMPORTANT – PLEASE READ FIRST The intense white light emitted by the primary white LED may cause temporary blinding, regardless of the brightness level used. Use caution during operation. Do not point light directly into eyes at any distance.
-
Page 5: Components
COMPONENTS LAMP HOUSING CONTROL PANEL BEZEL STEEL BELT CLIP FINGER LOOP BATTERIES BATTERY HOUSING/SLEEVE BATTERY CAP BATTERY INSTALLATION STEP 1. Remove battery cap. Insert two batteries “+” terminals first (as shown above). STEP 2. Reinstall battery cap. Hand-tighten until snug. STEP 3. -
Page 6: Basic Functions
BASIC FUNCTIONS Control Panel Diagram LOCK / UNLOCK INDICATOR SECONDARY CONTROL PRIMARY CONTROL MOMENTARY CONTROL LOCKOUT/READY MODE The Tomahawk is factory-shipped in Lockout ® LOCK / UNLOCK Mode, a setting for preventing accidental INDICATOR illumination.To unlock the light and enter Ready Mode, press the buttons simultaneously PRIMARY... -
Page 7: Momentary Mode
MOMENTARY CONTROL BUTTON Pressing the button will turn on the white LED in maximum output. Releasing the button will turn off the white LED. MOMENTARY CONTROL PRIMARY CONTROL BUTTON PRIMARY CONTROL To turn on the primary (white) LED, press and release the button. -
Page 8: Secondary Control
SECONDARY CONTROL BUTTON (STROBE MODE) SECONDARY CONTROL Activate strobe by pressing the Secondary Control button. The strobe will activate as long as the Secondary Control button is pressed. The Strobe function can be activated ONLY as a MOMENTARY momentary function and cannot be locked on. CONTROL NOTE: Upon exiting Strobe Mode, the light will default to the last used function. -
Page 9: Finger Loop
FINGER LOOP Your Tomahawk comes equipped with a Finger Loop installed in a neutral/straight-forward position. In order to enhance the ergonomic control of the Tomahawk, it is recommended that the Finger Loop be slightly offset to better align the thumb with the control panel. The Finger Loop can be moved by pushing it to FINGER LOOP the desired position. -
Page 10: Steel Belt Clip
TOMAHAWK STEEL CLIP ® The Tomahawk Steel Clip can be adjusted to any desired position by loosening the connection between the battery housing and the lamp housing to the point where the Steel Clip can be moved. Move the Steel Clip to the desired position and re- tighten the connection. -
Page 11: Lifetime Limited Warranty
FIRST-LIGHT USA, LLC LIFETIME LIMITED WARRANTY The PERIOD OF WARRANTY shall be for the lifetime of the lighting device from date of purchase. First-Light USA will repair or replace, free of charge, at First-Light USA’s option, any part due to defects in materials or workmanship. Certain countries and jurisdictions restrict limited lifetime warranties. - Page 12 WHEN YOUR LIGHT DEPENDS ON IT. ® www.firstlight-usa.com REV_16-03...
