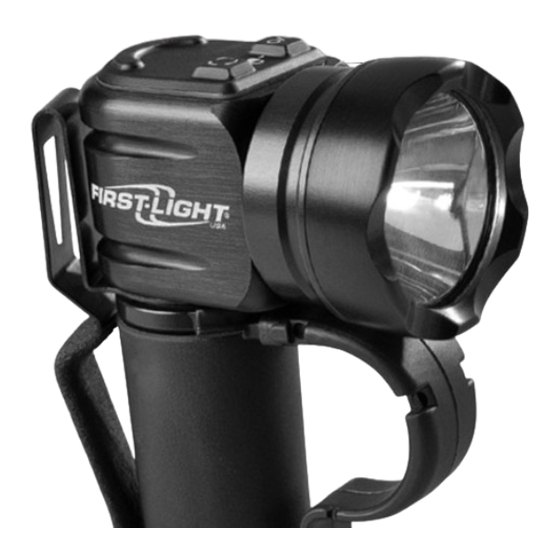

T-MAX
™
USER MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the T-MAX and is the answer not in the manual?

Questions and answers

Related Manuals for First Light T-MAX

Summary of Contents for First Light T-MAX

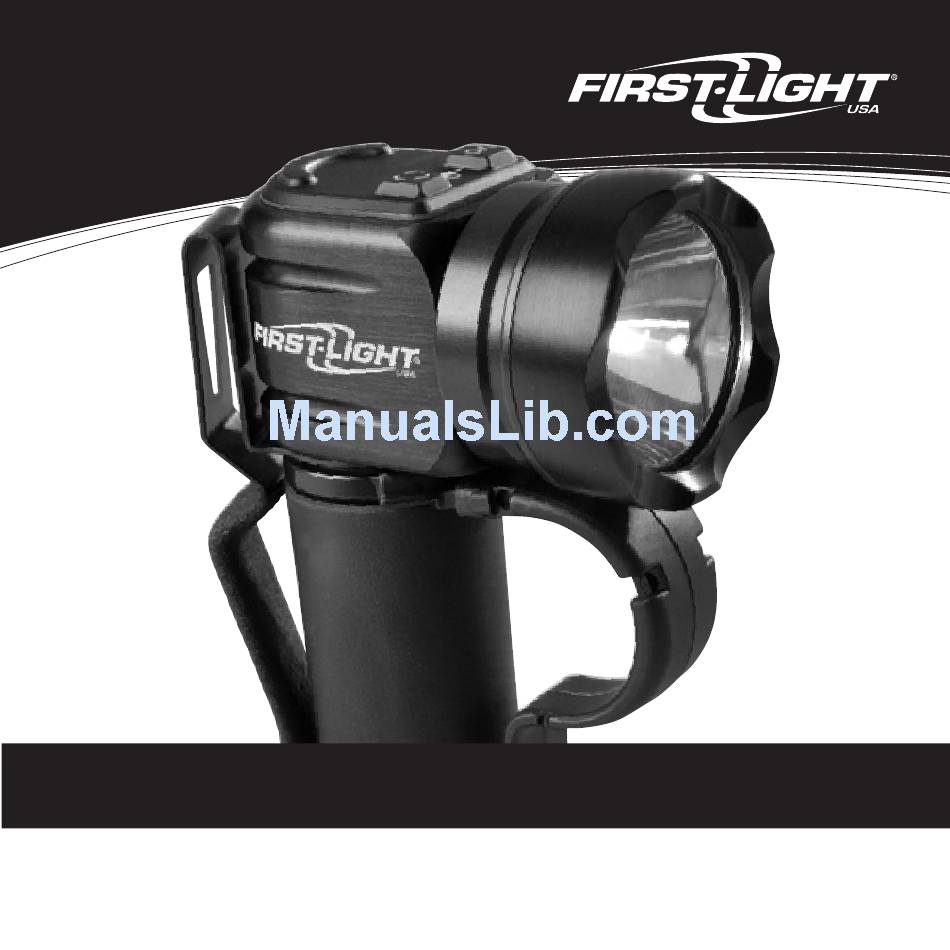

  • Page 1 T-MAX ™ USER MANUAL...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS Specifications ....................... 3 Battery Installation ......................4 Components ......................... 5 Basic Functions ......................6 Lockout/Ready Mode ....................6 Momentary Mode ....................7 Constant-On Mode ....................7 Cycle Control ......................8 Ready Strobe Mode ....................8 Low Battery Indication ....................9 Finger Loop ........................
  • Page 3 Thank you for purchasing the First-Light USA T-MAX Tactical Light. ™ Please carefully review this manual prior to use. IMPORTANT – PLEASE READ FIRST The intense white light emitted by the primary white LED may cause temporary blinding, regardless of the brightness level used. Use caution during operation.

  • Page 4: Specifications

    16 hours Low: 60 hours NOTE: High quality, rechargeable CR123 batteries may be used to power the T-MAX ™ Tactical Light. The user should identify the voltage capacity of any rechargeable batteries prior to installing them into the T-MAX Tactical Light.

  • Page 5: Battery Installation

    REPLACEMENT PARTS To order replacement parts, please call 877.454.4450 or visit www.firstlight-usa.com. BATTERY INSTALLATION STEP 1. Remove battery cap. Insert two batteries “+” terminals first (as shown above). STEP 2. Reinstall battery cap. Hand-tighten until snug. STEP 3. Ensure batteries are properly installed by pressing any button on the control panel.

  • Page 6: Components

    COMPONENTS LAMP HOUSING CONTROL PANEL CRENULATED BEZEL STEEL BELT CLIP FINGER LOOP BATTERY HOUSING/SLEEVE BATTERIES CRENULATED BATTERY CAP...

  • Page 7: Basic Functions

    BASIC FUNCTIONS Control Panel Diagram LOCK / UNLOCK INDICATOR CYCLE CONTROL CONSTANT-ON CONTROL MOMENTARY CONTROL LOCKOUT/READY MODE LOCK / UNLOCK Lockout Mode prevents accidental illumination. INDICATOR To unlock the light and enter Ready Mode,press the Constant-On and Cycle Control CONSTANT-ON CYCLE buttons simultaneously and release.

  • Page 8: Momentary Mode

    MOMENTARY MODE The Momentary Control button activates the primary white LED at maximum brightness when pressed. When released, the white LED turns off. NOTE: To momentarily activate the secondary colored LEDs from the off position, press and hold the Cycle Control button.

  • Page 9: Cycle Control

    CYCLE CONTROL CYCLE CONTROL The Cycle Control button is used to adjust the brightness level of the primary white LED while in Constant-On Mode. Press and release the Cycle Control button when the primary LED is illuminated to select one of three brightness levels. The light will default to the last used Constant-On brightness setting.

  • Page 10: Low Battery Indication

    When the battery nears the end of its useful life INDICATOR the red Lock/Unlock indicator will begin to flash. Once the useful life of the batteries has been reached the T-MAX will begin to limit its output ™ in order to extend run time.

  • Page 11: Finger Loop

    ™ installed in a neutral/straight-forward position. In order to enhance the ergonomic control of the T-MAX, it is recommended that the Finger Loop be slightly offset to better align the thumb with the control panel. The Finger Loop can be moved by pushing it to FINGER LOOP the desired position.

  • Page 12: Steel Belt Clip

    T-MAX STEEL CLIP ™ The T-MAX Steel Clip can be adjusted to any desired position by loosening the connection between the battery housing and the lamp housing to the point where the Steel Clip can be moved. Move the Steel Clip to the desired position and re- tighten the connection.

  • Page 13: Lifetime Limited Warranty

    FIRST-LIGHT USA, LLC LIFETIME LIMITED WARRANTY The PERIOD OF WARRANTY shall be for the lifetime of the lighting device from date of purchase. First-Light USA will repair or replace, free of charge, at First-Light USA’s option, any part due to defects in materials or workmanship. Certain countries and jurisdictions restrict limited lifetime warranties.
  • Page 14 WHEN YOUR LIGHT DEPENDS ON IT. ® www.firstlight-usa.com REV_15-03...
