Summary of Contents for First Light TORQ

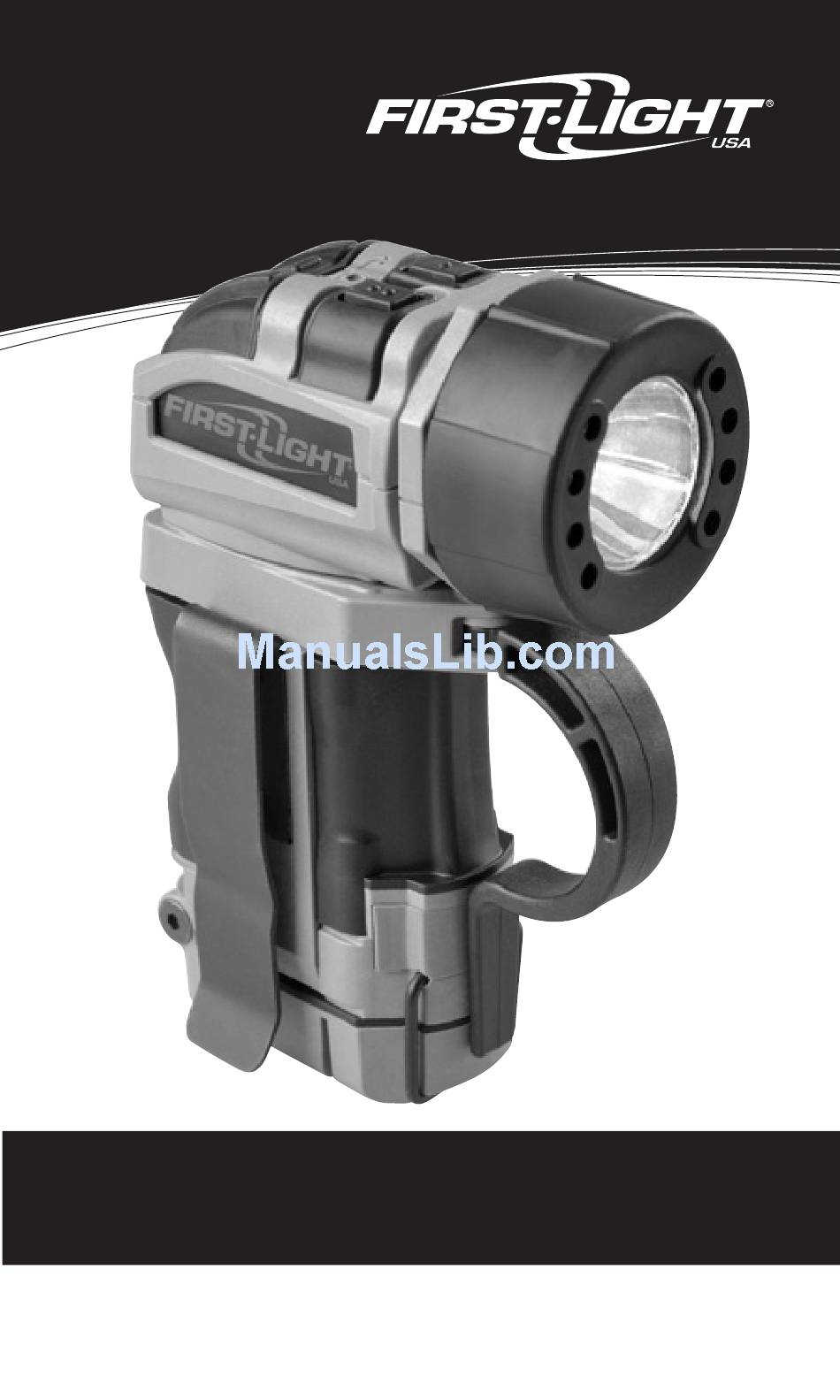

  • Page 1 TORQ ™ USER MANUAL...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS Specifications ............2 Components ............4 Battery Installation ..........5 Basic Functions ............6 Lockout/Ready Mode ........6 Momentary Mode ..........6 Primary Control ..........7 Secondary Control ..........7 Secondary Color ..........7 Safety Beacon Mode ........8 Double-Click For Color ........8 Low Battery Indication ..........8 Head Rotation............9 Finger Loop ............9 Removable Side Panels ........9...
  • Page 3 Thank you for purchasing the First-Light USA TORQ ™ Tactical Light. Please carefully review this manual prior to use. IMPORTANT – PLEASE READ FIRST The intense white light emitted by the primary white LED may cause temporary blinding, regardless of the brightness level used. Use caution during operation.

  • Page 4: Specifications

    SPECIFICATIONS FL1 STANDARD HIGH 10h 45m 116m 3,400cd * Runtime until output drops below 10% of maximum output at this setting.
  • Page 5 FL1 STANDARD MEDIUM 152h Environmental Specifications Normal Operating Temperatures: (-20°F) to 120°F ● Waterproof ● Batteries ● (2) AA Batteries...

  • Page 6: Components

    COMPONENTS CONTROL PANEL LAMP HOUSING BEZEL REMOVABLE SIDE PANEL FINGER LOOP LATCH BATTERY DOOR NOTE: Any user disassembly will void the warranty.

  • Page 7: Battery Installation

    BATTERY INSTALLATION STEP 1. Open battery door by releasing the latch (as shown below). STEP 2. Insert two AA batteries according to polarity as indicated on the inside of battery door. STEP 3. Close battery door insuring latch is secure.

  • Page 8: Basic Functions

    PRIMARY SECONDARY CONTROL CONTROL LOCK/UNLOCK INDICATOR MOMENTARY CONTROL LOCKOUT/READY MODE The TORQ is factory-shipped in ™ PRIMARY / SECONDARY CONTROLS Lockout Mode, a setting for preventing accidental illumination.To unlock the light and enter Ready Mode, press the buttons simultaneously and release.

  • Page 9: Primary Control

    PRIMARY CONTROL PRIMARY CONTROL BUTTON To turn on the primary (white) LED, press and release the button. To adjust the brightness of the primary LED, from the on position, press and hold the button. Release the button at the desired brightness. To turn off the primary LED, press and release the button.

  • Page 10: Safety Beacon Mode

    When the battery nears the end of its useful life the red Lock/Unlock indicator will begin to flash. Once the useful life of the batteries has been reached the TORQ will begin to limit its output in ™ order to extend run time.

  • Page 11: Head Rotation

    Once repositioned, close battery door to lock into place. This feature enables the belt clip to be positioned on either side of your TORQ to accommodate a right or left hand carry preference.

  • Page 12: Accessories

    Additional Side Panels are available for purchase. TORQ -compatible Tactical Retention System (TRS) ™ dovetail connection is included with First-Light USA TRS mounting accessories. A Magnetic Side Panel along with a Strap Cutter and Bottle Opener are also available. Visit www.firstlight-usa.com for the latest information.

  • Page 13: Lifetime Limited Warranty

    FIRST-LIGHT USA, LLC 2-YEAR LIMITED WARRANTY The PERIOD OF WARRANTY shall be for two years from date of purchase of the lighting device. First-Light USA will repair or replace, free of charge, at First-Light USA’s option, any part due to defects in materials or workmanship.
  • Page 14 NOTES ______________________________________ ______________________________________ ______________________________________ ______________________________________ ______________________________________ ______________________________________ ______________________________________ _____________________________________ ______________________________________ ______________________________________ ______________________________________ ______________________________________ ______________________________________ ______________________________________ ______________________________________ ______________________________________ ______________________________________ ______________________________________ ______________________________________...
  • Page 16 WHEN YOUR LIGHT DEPENDS ON IT. ® www.firstlight-usa.com Rev_14-05...
