Summary of Contents for Q CELLS Q.PRO

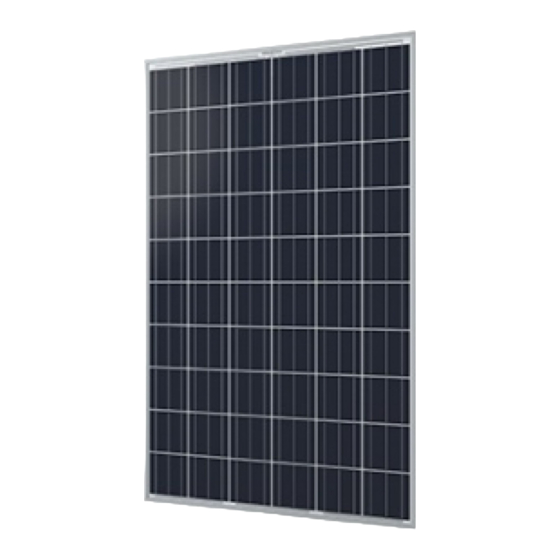

- Page 1 CRYSTALLINE SOLAR MODULES Q.PRO · Q.BASE · QC-C05 Installation and operation manual Valid for Australia...
-
Page 2: Table Of Contents
This document applies for Australia for the following products as of December 2010: Q.PRO, Q.BASE, QC-C05, and replaces all previous revisions of the installation and operation manual for these solar modules. Technical parameters and design are subject to change. The data sheets and client information valid at the point in time when the relevant module was manufactured apply for the carrying out of installation, mounting or maintenance work on the solar modules. -
Page 3: Introduction
1 INTRODUCTION Q-Cells solar modules allow you to directly transform the un- Information for operators limited energy provided by the sun into electrical energy in an Keep these instructions safe for the entire useful life of the environmentally friendly way. module. -
Page 4: Product Description
Wind / snow load [Pa] 5400 5400 Certificates All modules: CE-compliant; IEC 61215 (Ed.2); IEC 61730 (Ed.1), application class A FIGURE 1: Exterior dimensions (in mm) and components for Q.BASE and Q.PRO INSTALLATION AND OPERATION MANUAL CRYSTALLINE SOLAR MODULES Q-CELLS SE - AUSTRALIA... -
Page 5: Safety Instructions
SAFETY INSTRUCTIONS SAFETY INSTRUCTIONS DANGER! Danger due to electric shock! A solar module generates electricity and voltage even at low intensity of illumination. Physi- cally disconnecting contacts in a live electrical circuit can cause arching, resulting in grave or mortal injury. The severity increases when several modules are connected in series. •... -
Page 6: Applicable Australian Codes And Standards
3.2 APPLICABLE AUSTRALIAN CODES AND STANDARDS • AS 4777.1 “Grid connection of energy systems via inverters - Installations requirements” • AS/NZS 1170 “Structural design actions Set” • AS/NZS 1768 “Lighting protection” • AS/NZS 3000 “Electric installations” • AS/NZS 3100 “Approval and test specifications - General requirements for electrical equipment”... -
Page 7: Layout, Mounting And Installation
5 LAYOUT, ASSEMBLY AND INSTALLATION SAFETY INSTRUCTIONS WARNING! Damaged module components may cause risk of fire hazard! • Only install undamaged solar modules. • Ensure that the junction box, cable and connectors are undamaged prior to installation. • Do not open the junction box under any circumstances. •... -
Page 8: Mounting Variants
5.1 MOUNTING VARIANTS Figure 2: Mounting variants for crystalline Q-Cells modules. All measures in mm. The illustrated mounting variants apply for installations in portrait and landscape format. Module Clamping area Substructure Insertion profile INSTALLATION TYPE LATERAL SUPPORT LONGITUDINAL SUPPORT INSTALLATION WITH CLAMPS 4x fastening points 4x fastening points... -
Page 9: Mechanical Mounting
5.2 MECHANICAL ASSEMBLY MODULE POSITIONING CAUTION! Incorrect orientation of the module presents a fire hazard! • The modules may be installed in landscape or portrait format. • Install the module in such a way that the junction box is positioned in the upper area of the module and the wires hang downwards (Figure 2). -
Page 10: Electrical Layout
5.3 ELECTRICAL LAYOUT YOU CAN FIND THE DETAILED ELECTRICAL PARAMETERS IN THE PRODUCT DATA SHEET. MODULE SELECTION Only connect modules of the same type and the same power class. This is the only way to achieve optimal yields. SAFETY FACTOR It may occur during normal operation that the module provides a greater current and / or a higher voltage than that determined under standardised test conditions. -
Page 11: Grounding
5.4 GROUNDING FUNCTIONAL In case modules are installed within 500 m of the coastline, a functional grounding of the GROUNDING photovoltaic generator has to be installed. DANGER! Incorrect grounding causes risk of fire hazard! The direct grounding of the positive or negative conductor is only permitted if any hazards for persons can be excluded. -
Page 12: Cleaning And Maintenance
CONNECTION CABLES Observe the following when selecting and using connection lines and connectors: AND CONNECTORS • Only use solar cables as connection cables. Use connectors of the same type and manu- facturer within a solar system, and compatible connectors to connect the inverter. •... -
Page 13: Troubleshooting
Free the substructure and rear side of dirt (leaves, bird nests, etc.). In the case of ground- mounted installations, we recommend regularly trimming of the vegetation order to avoid par- tial shading. Be sure to pay attention to the cables and stones. MAINTENANCE The solar system should be inspected annually by a specialist installer for: •... -
Page 14: Contact
CONTACT Q-Cells Australia Pty. Ltd. 1800 72 35 57 Level 2, 56 Berry Street +61 (2)94 55 08 73 Sydney, NSW 2060 EMAIL service@q-cells.com.au Australia WEB www.q-cells.com...
