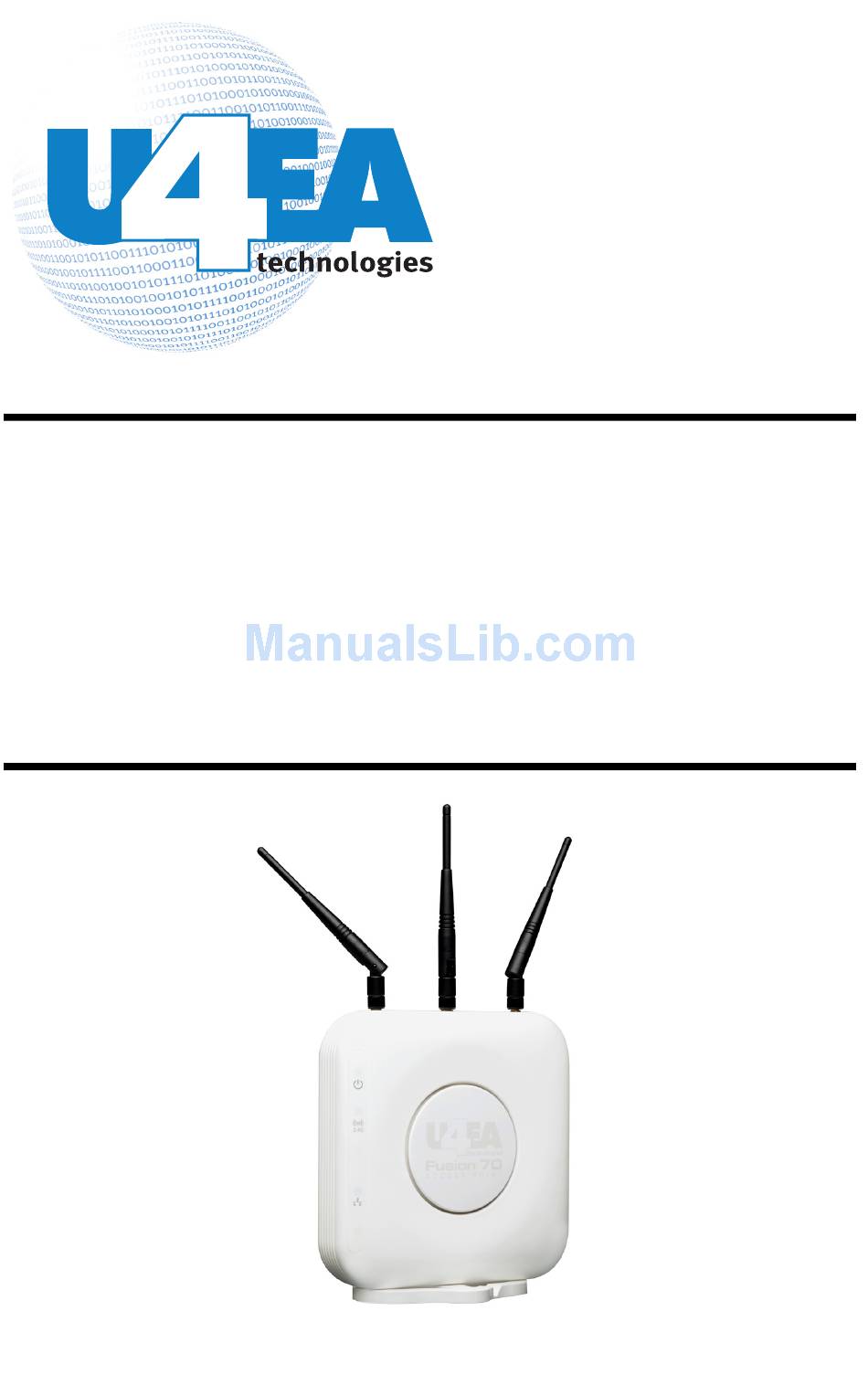

Fusion 70 Access
Point

Installation Guide

Part Number: 001605, Rev. A

Advertisement

loading

  Summary of Contents for U4EA Fusion 70

  • Page 1: Installation Guide

    Fusion 70 Access Point Installation Guide Part Number: 001605, Rev. A...
  • Page 2 001605, Rev. A...
  • Page 3: Safety Precautions

    Introduction Introduction The Fusion 70 Access Point is a reliable, high-speed wireless device that offers secure communication access for both voice and data IEEE 802.11n transmissions for any SMB (Small- to Medium-sized Business). With a frequency of 2.4 GHz (802.11 b/g/n), this innovative and cost- effective AP provides clients a fast and reliable network connection.
  • Page 4: Product Description

    Introduction Product Description Features Table 2 Item Feature Description These three indicators display power and/or link LEDs activity. Console Port This port provides a serial interface for the AP. This button provides a mechanism to allow you to Reset Button restore the AP back to its factory default settings.
  • Page 5: Power And Environmental

    32 to 104ºF (0-40C) Operating Relative Humidity 5% to 95% (non-condensing) LEDs The Fusion 70 Access Point has the following three LEDs on to provide a visual indication of the operation status of the AP. LEDs Table 4 Description •...
  • Page 6: Reset Button

    10 seconds while the AP has power applied. Antenna The Fusion 70 Access Point comes standard with three internal antennas. However, the AP also includes three external antenna connectors that allow you to connect external antennas (optional) to them to increase the range of each radio.
  • Page 7: General Specifications

    Specifications Specifications General Specifications Table 6 Specification Description Dimensions (L) 7.8" (19.7 cm) X (W) 7.8" (19.7cm) X (H) 1.8" (4.5cm) • IEEE 802.3ab • IEEE 802.3af Standards support • IEEE 802.11b • IEEE 802.11g • IEEE 802.11n • 802.11g: 54, 48, 36, 24, 18, 12, 9 and 6 Mbps •...
  • Page 8: Installation

    Installation Prerequisites The following are the prerequisites that you need to adhere to before attempting to install the Fusion 70 Access Point: For ease of cable connections, ensure that the access point is near a  hub or computer, as well as a reliable power source.
  • Page 9: Desktop Mounting

    Installation Connect the power cable to the power connection located on the bottom of the AP. The Power LED turns green as soon as power is applied. Mount the AP using the mounting slots located at the bottom of the Note: You can also use the slots on the side of the AP if you cannot mount the AP using the slots on the bottom of the AP.
  • Page 10: Finding Product Documentation

    To view PDF files, use Adobe Acrobat® Reader® 5.0, or newer. Obtain Acrobat Reader free from the Adobe website: http://www.adobe.com/products. You can find additional documentation at the U4EA support site: www.u4eatech.com/support. Downloading the Latest Documentation Updated versions of product documentation can be downloaded from the support Web site.
  • Page 11: Regulatory Information

    U4EA’s warranty and all applicable regulatory certifications and approvals. Only antennas specified for your region by U4EA can be used with this product. The use of external amplifiers or non-U4EA antennas may invalidate regulatory certifications and approvals.
  • Page 12: Manufacturer's Fcc Declaration Of Conformity

    2T3R A015MPAX-361 Antenna test Manufacturer’s FCC Declaration of Conformity Model Number: Fusion 70 U4EA Technologies, Inc Fremont, CA January 7, 2009 Equipment Type: WLAN Access Point Complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
  • Page 13: Industry Canada - Rf Compliance

    INDUSTRY CANADA — RF COMPLIANCE INDUSTRY CANADA — RF COMPLIANCE This device complies with RSS 210 of Industry Canada. Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of this device.
  • Page 14: Eu Declaration Of Conformity

    EU Declaration of Conformity EU Declaration of Conformity We, the undersigned, on behalf of U4EA Technologies, Inc., hereby declare that the products listed below conform to the relevant provisions of the legislation, as well as pertinent clauses of the standards and other normative documents mentioned herein.
  • Page 15: Eu - Restrictions For Use In The 2.4Ghz Band

    Par la presente U4EA declare que l'appareil RLAN device est conforme aux exigences Francais [French] essentielles et aux autres dispositions pertinentes de la directive 1999/5/CE. Con la presente U4EA dichiara che questo RLAN device e conforme ai requisiti essenziali ed Italiano [Italian] alle altre disposizioni pertinenti stabilite dalla direttiva 1999/5/CE.
  • Page 16 454 Kato Terrace Fremont, CA 94539 www.u4eatech.com...
