Summary of Contents for Kentec Electronics Taktis Vision
Page 1

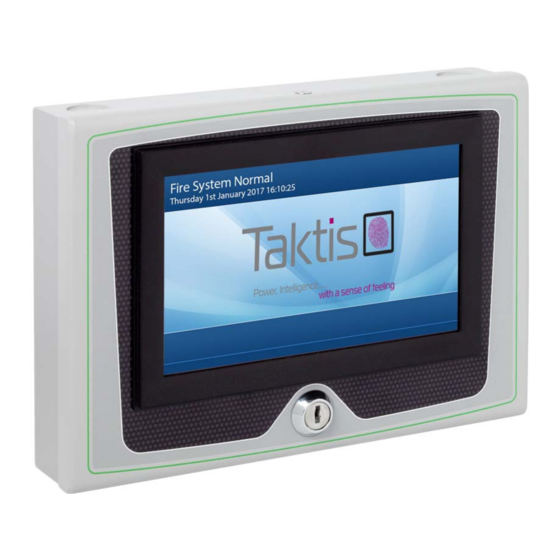

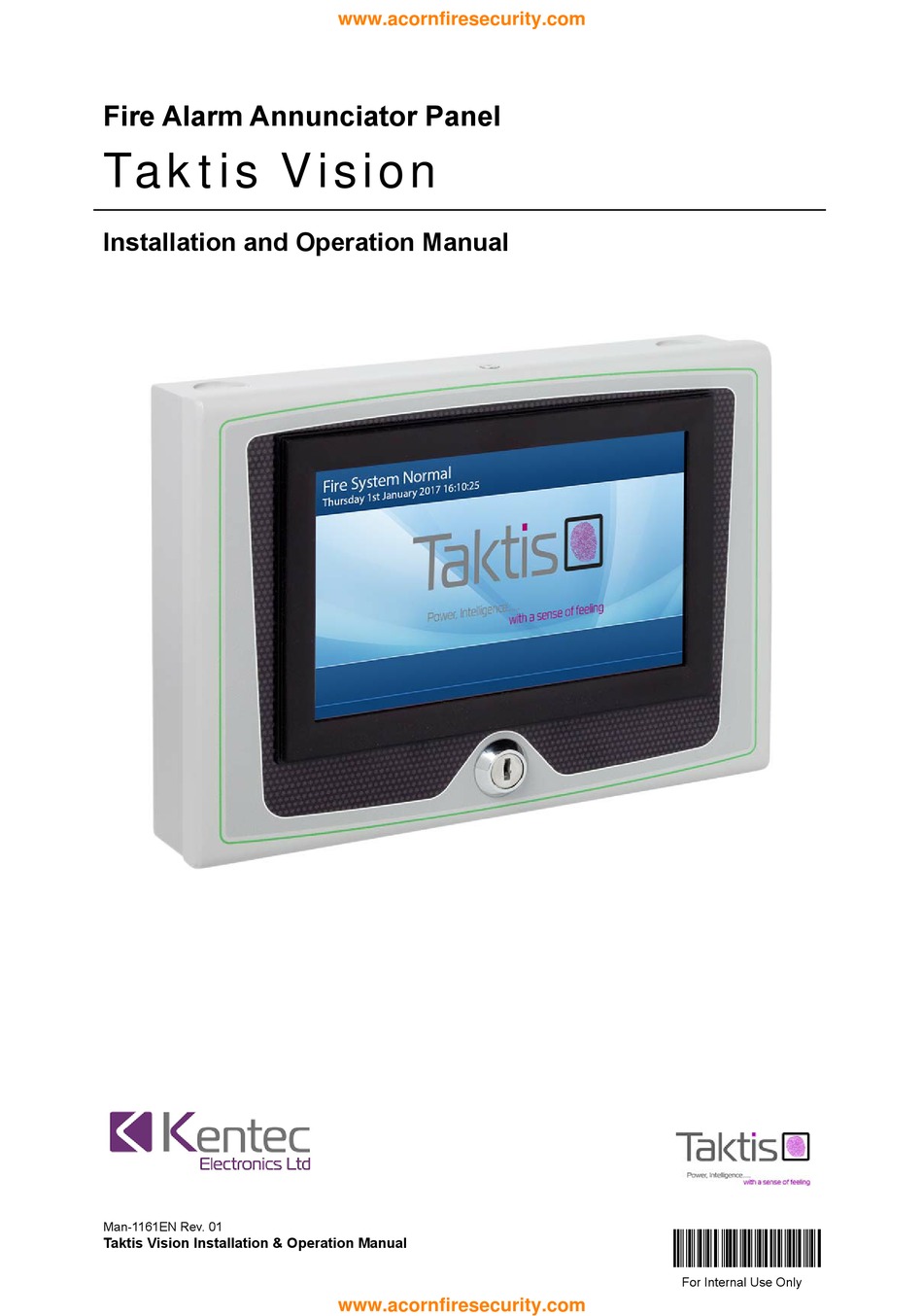

Fire Alarm Annunciator Panel Taktis Vision Installation and Operation Manual Man-1161EN Rev. 01 Man-1161EN Taktis Vision Installation & Operation Manual For Internal Use Only www.acornfiresecurity.com...
Page 2
www.acornfiresecurity.com Safety Suppliers of articles for use at work are required under section 6 of the Health and Safety at Work act 1974 to ensure as reasonably as is practical that the article will be safe and without risk to health when properly used. An article is not regarded as properly used if it is used ‘without regard to any relevant information or advice’...
Contents i Section 1 Introduction 1 Taktis Vision Annunciator Features ......................1 Related Documentation..........................1 Section 2 Overview 2 Fascia Layout ..............................2 Internal Features ............................3 Section 3 Installation 4 Before You Begin ............................4 General Installation Checklist........................4 Mounting the Surface Enclosure ........................
Operation Manual http://www.kentec.co.uk/manuals/man-1169GEN.pdf Using your Smart-phone, tablet or device install a third party QR Code Reader and scan the code to view the doc- uments. Installation Manual Operation Manual Man-1161EN Rev. 01 Taktis Vision Installation & Operation Manual www.acornfiresecurity.com...
SD card slot Write Enable switch No function No function No function No function Network terminals (Net in, Net out) Processor reset button Not used USB to PC communications port Man-1161EN Rev. 01 Taktis Vision Installation & Operation Manual www.acornfiresecurity.com...
1/ Open the enclosure by removing the screw located at the top-centre. The enclosure lid hinges downwards. Re- move hinge pins by pulling inwards. Disconnect earth wire and put enclosure lid safely to one side. Figure 3-1 Opening the Enclosure Man-1161EN Rev.01 Taktis Vision Installation & Operation Manual www.acornfiresecurity.com...
Page 8
Fix the enclosure back box using suitable fixings, through all fixing points. Figure 3-2 Surface Enclosure Back Box Dimensions 230.6 190.6 Ø5.0 Ø5.0 ALL DIMENSIONS IN MM NOT TO SCALE Man-1161EN Rev. 01 Taktis Vision Installation & Operation Manual www.acornfiresecurity.com...
Note: 175mm X 240mm are the advised wall cut-out dimensions. The diagram below shows side view of the enclosure within the trim ring. Figure 3-4 Trim Ring with Enclosure in Place Man-1161EN Rev.01 Taktis Vision Installation & Operation Manual www.acornfiresecurity.com...
Installation 3 Installing the Trim Ring The diagram below illustrates trim ring fitting options. Figure 3-5 Trim Ring Fixing Centres Figure 3-6 Trim Ring Fold Tabs Man-1161EN Rev. 01 Taktis Vision Installation & Operation Manual www.acornfiresecurity.com...
Use four, M4 x 8mm machine screws in conjunction with M4 plain washers to fix enclosure back box to the trim ring. Figure 3-7 Fixing the Enclosure Back Box to the Trim Ring Man-1161EN Rev.01 Taktis Vision Installation & Operation Manual www.acornfiresecurity.com...
Figure 3-9 Flush Enclosure Back Box Dimensions 50.0 240.0 234.0 190.6 Ø4.5 Ø4.5 ALL DIMENSIONS IN MM NOT TO SCALE Note: 175mm X 240mm are the advised wall cut-out dimensions. Man-1161EN Rev. 01 Taktis Vision Installation & Operation Manual www.acornfiresecurity.com...
“fire alarm - do not switch off”. The mains supply must include an earth conductor connected to the fixed installation earthing system of the building. Man-1161EN Rev.01 Taktis Vision Installation & Operation Manual www.acornfiresecurity.com...
The current consumption of the Annunciator with the PF input activated is 232mA (buzzer silenced, touch panel back-light on). The effect on the battery capacity of the power supply which is powering the Annunciator should be considered when connecting Annunciators to a system. Man-1161EN Rev. 01 Taktis Vision Installation & Operation Manual www.acornfiresecurity.com...
This fault scenario could clearly be extended to more network points and this would add 1200 metres of cable length in each case. A sensible fault tolerance limit has therefore to be suggested to enable the performance of the system to be predict- Man-1161EN Rev.01 Taktis Vision Installation & Operation Manual www.acornfiresecurity.com...
Shield cable is connected at one end only. When using this method it is also important to ensure that the gland body is electrically bonded to the panel enclo- sure. Man-1161EN Rev. 01 Taktis Vision Installation & Operation Manual www.acornfiresecurity.com...
Access Level 3 is required to set the Annunciator address. The default code for Access Level 3 is ‘333333’. Press ‘User Controls’. Press ‘Engineer Options’. Press ‘Configuration’. Press ‘Learn Panel’. Exit out of menu. 3-10 Switch the ‘Write Enable’ switch to position 1. Man-1161EN Rev.01 Taktis Vision Installation & Operation Manual www.acornfiresecurity.com...
Using the number buttons key in your login code and press ‘Submit’ button to accept. Access Level 3 is required to set the Annunciator address. The default code for Access Level 3 is ‘333333’. Press ‘Engineer Options’. Press ‘Configuration’. Press ‘Export Configuration’. Man-1161EN Rev. 01 Taktis Vision Installation & Operation Manual www.acornfiresecurity.com...
3 x 20 mm and 2 x 28 mm knockouts in back Finish Epoxy powder coated Colour Lid & Box, BS 00 A 05 fine texture Weight 2 Kg maximum IP Rating IP30 Man-1161EN Rev.01 Taktis Vision Installation & Operation Manual www.acornfiresecurity.com...
