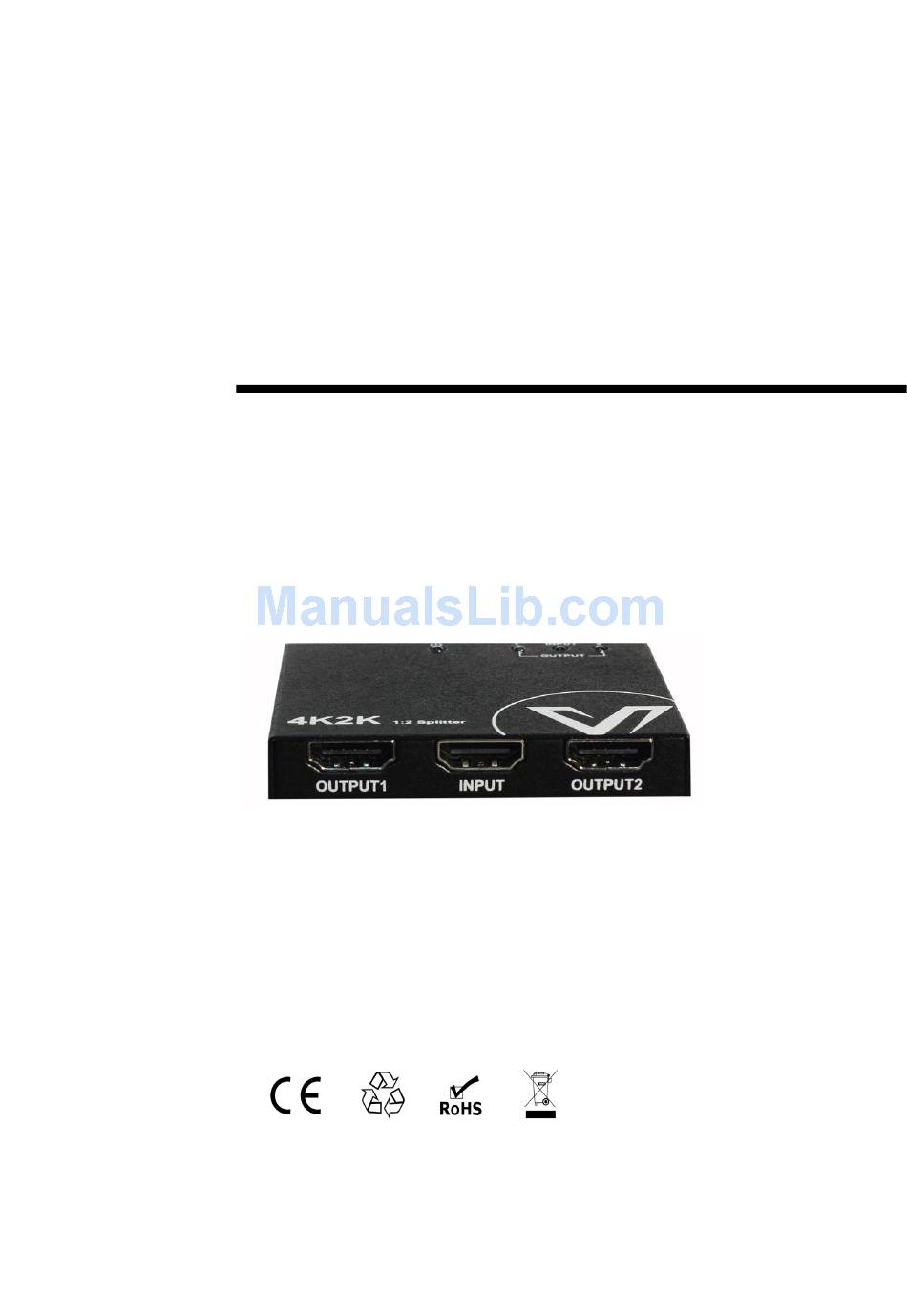

- Page 1 User Manual SP0102-H00 1:2 Splitter for HDMI with Ultra HD 4K Support Version: V1.0.0...
- Page 2 Overview SP0102-H00 is a 1:2 splitter for HDMI with Ultra HD 4K support. This splitter reliably distributes one HDMI source signal to two HDMI outputs. It supports HDMI 1.4a specification features including data rates up to 10.2 Gbps, 12-bit Deep Color, 3D, Lip Sync, and HD lossless Audio/Video formats.
-
Page 3: Package Contents
Smart EDID management Standard 4 layers PCB design Supports HD resolutions up to 4K@30Hz. Superior ESD protection Package Contents 1 x 1:2 Splitter SP0102-H00 1 x USB-to-Micro USB Cable 2 x Mounting Ears... - Page 4 Connection 1. Connect a source to the splitter. 2. Connect two displays to the splitter. 3. Connect the USB-to-Micro USB Cable to the splitter, and connect TV or PC or charger of cellphone to USB port. Power on all devices. HDMI HDMI HDMI...
-
Page 5: Specifications
Specifications Technical Input 1 x HDMI Input Output 2 x HDMI Output Input DDC Signal 0.5~1.2 V p-p Input DDC Signal Input/Output Signal HDMI 1.4a, 3D, Type DVI 1.0 4K/1080p/1080i/ Input/Output 720p/576p/576i/ Resolution Support 480p/480i Maximum Data Rate 10.2 Gpbs Maximum Pixel 340 MHz Clock... - Page 6 non-condensing -4°F to 140°F Storage (-20°C to 70°C) Temperature 10% to 90%, non-condensing Product Dimension 72.50mm x 64.30 (W x H x D) mm x 12.10 mm Product Weight (Without 0.10kg Accessories) Human-body model: ±4 kV (Contact ESD Protection discharge) ±8kV (Air discharge) Certification...
- Page 7 Panel Top Panel Power LED Input LED Output LED...
-
Page 8: Front Panel
Front Panel Ouput1 Input Output2 Rear Panel Power Connector... -
Page 9: Troubleshooting
Troubleshooting 1. Why the display device connected to the splitter shows no picture? Check that all the cables are qualified and connected properly. Make sure that the display device supports HDCP. Check that the length of HDMI cable is less than 15 meters. - Page 10 AV Access Technology Co., Ltd America, Africa Sales & Market Ms. Suze Leung suze@avaccess.com Europe, Asia, Middle East Sales & Market Ms. Jessica Lee jessica@avaccess.com Tel: 0086 755 21620553 Fax: 0086 755 26883498...
