Installation
Place marks on the wall that correspond to the distance
2.
between the two mounting holes located at the back of
the AP. The holes are approximately 2.5" apart.
Use a drill (approximately 3/16 drill bit) to make a hole
3.
into the wall where you made the marks.
Insert the wall anchors (if necessary).
4.

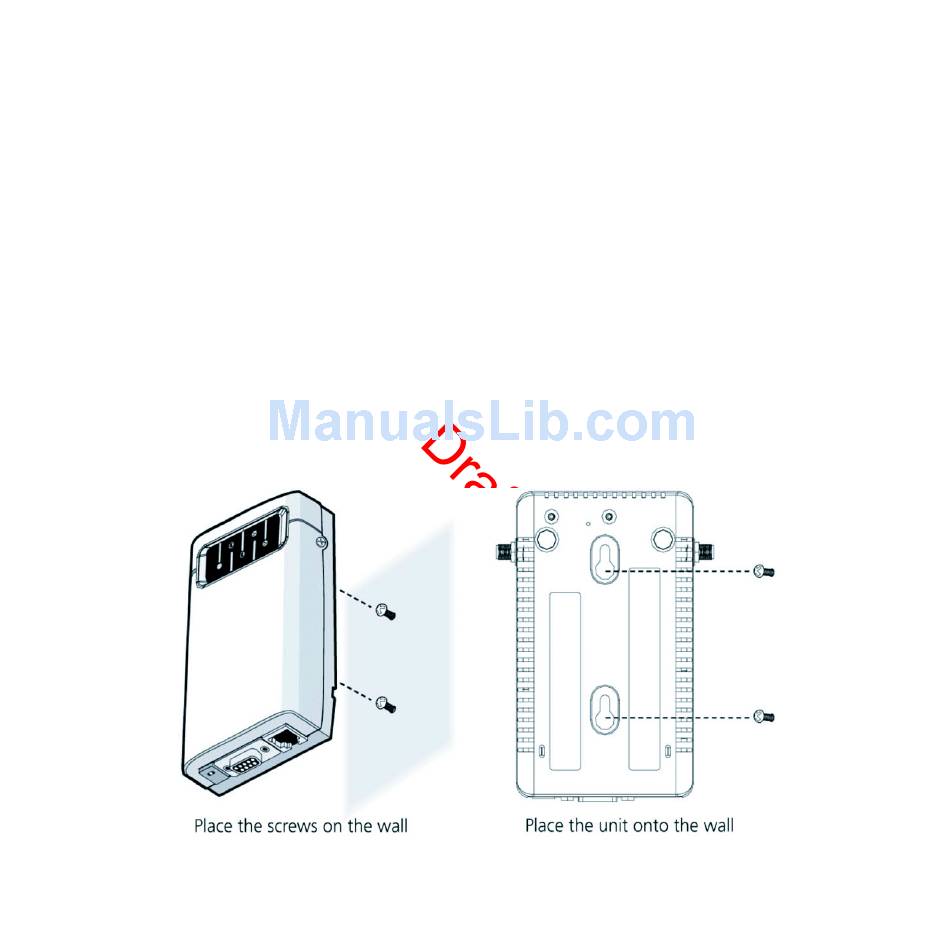

Attach the mounting screws to the wall where you made
5.
the holes.
Mount the unit onto the wall by fitting the mounting
6.
holes to the screws.
4
BETA
P/N: 001287, Rev. 1
