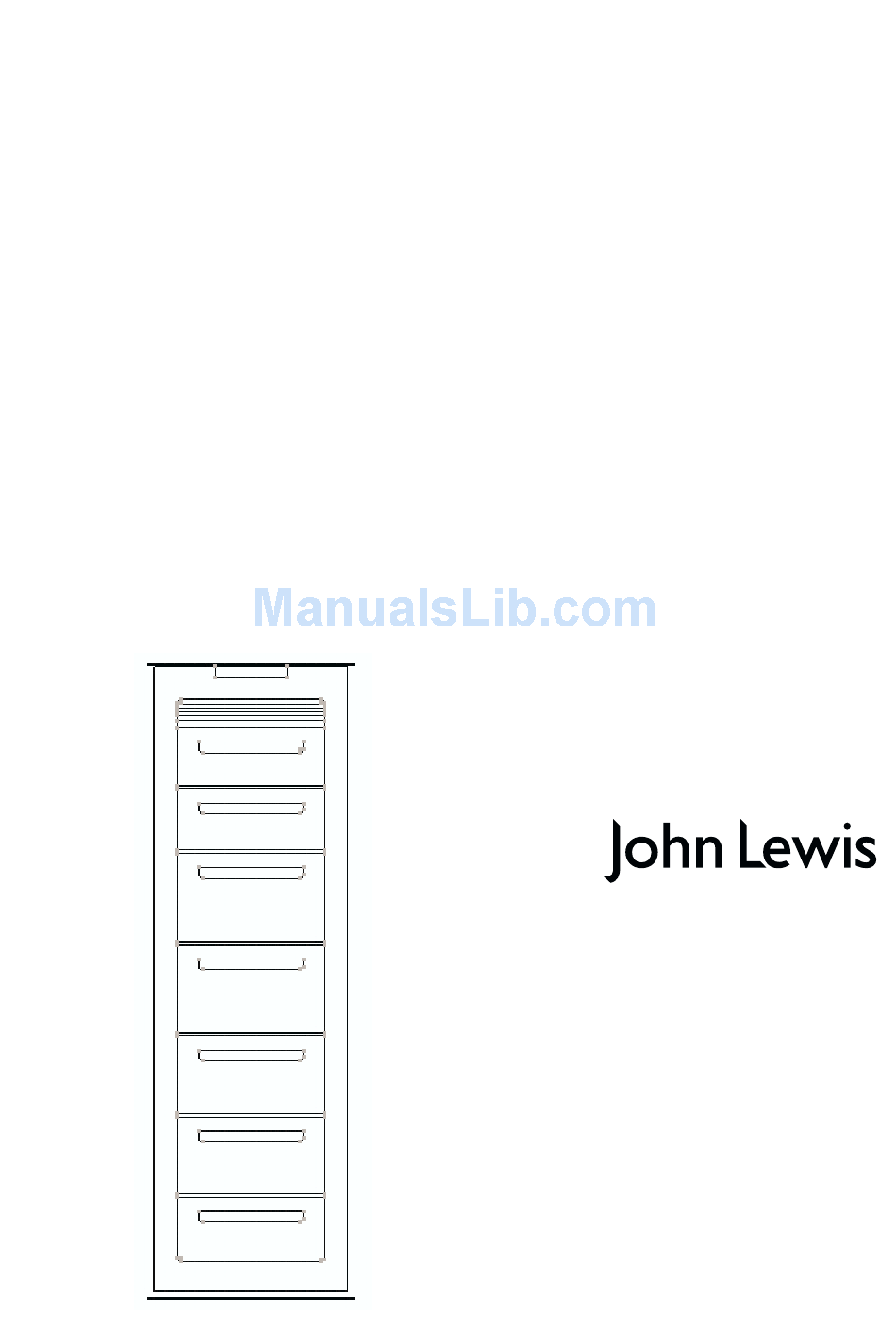

- Page 1 JLBIFIC02 Built-in freezer Instruction manual...
-
Page 2: Important Safety Information
These warnings have been provided in the interest of safety.You MUST read them carefully before use of installation by a qualified person. If you are unsure of the meanings of these warnings contact the John Lewis branch from which you purchased the appliance. • The appliance must not be located close to Installation cookers, radiators or boilers. - Page 3 Environmental Information • After installation, please dispose of the packaging with due regard to safety and the environment. • When disposing of your appliance use an authorised disposal site. Remove the plug and ensure that all locks and catches are removed to prevent young children being trapped inside.
-
Page 4: Table Of Contents
Contents For the User For the Installer Important Safety Information Installation Description of the appliance Technical Specification Control panel Electrical Connection Positioning When the Freezer is first installed Activation of functions Building In Switching off Using the freezer Before using Temperature control Freezing fresh food Guide to use the Instruction... -
Page 5: Description Of The Appliance
Description of the Appliance Mode On / 1 Control panel 2 Freezing fresh food compartment 3 Frozen food storage compartments... -
Page 6: Technical Specification
Installation Any electrical work required to install this It is dangerous to alter the specifications or appliance should be carried out by a qualified attempt to modify this product in any way. electrician or competent person. Care must be taken to ensure that the appliance does not stand on the electrical supply cable. -
Page 7: Positioning
Important Warning It must be possible to disconnect the appliance from the IF YOU ARE DISCARDING AN OLD APPLIANCE mains power supply; the plug must therefore be easily THAT HAS A LOCK OR CATCH ON THE DOOR, accessible after installation. YOU MUST ENSURE THAT IT IS MADE UNUSABLE TO PREVENT YOUNG CHILDREN BEING TRAPPED INSIDE. -
Page 8: Building In
Building In Before carrying out any work, remove the plug from the power socket. Please ensure that when the appliance is installed it is easily accessible for the engineer in the event of a breakdown. The appliance is supplied with the door opening to the right. - Page 9 Drill the unit using a Ø 2.5 mm drill (10 mm max. 13mm penetration); Ø 2,5 Fix the square fitting to the appliance. D740 Make sure that a distance of 44 mm is maintained in the lower part between the kitchen furniture and the border of the appliance.
- Page 10 From the plastic cover (E), which is used to cover the hinge with the pivot pin, you must take away the part as indicated in the drawing. This operation is made easer since there is, in the internal part of the cover hinge lid a groove that facilates the removal of this coomponent.
- Page 11 Open the appliance door and the furniture door at 90°. Insert the small square (Hb) into guide (Ha). Put together the appliance door and the furniture door and mark the holes as indicated in the figure. Remove the squares and drill holes with ø 2 mm at 8 mm from the outer edge of the door.
-
Page 12: Control Panel
The Control Panel Mode On / Push button Function button Appliance button ON/OFF Thermostat control knob Temperature and function indicator DISPLAY Temperature indicator Door open alarm indicator IIluminated when the fast freeze function is on Positive or negative Temperature indicator When the Freezer is first Activation of functions installed... -
Page 13: Using The Freezer
Using the freezer Before use Remove all securing tapes.Wash inside the appliance Do not use soap or detergent as the smell with lukewarm water and bicarbonate of soda (5 ml may linger. Dry thoroughly. to 0.5 litre of water). Temperature control Frozen food storage The temperature within the freezer is controlled by When first starting-up or after a period out of use,... -
Page 14: Excessive Temperature Alarm
Excessive temperature alarm Thawing An increase in the temperature in the freezer Frozen food, prior to being used, can be thawed in compartment (for example due to an electricity the fridge or at room temperature depending on the outage) is indicated by: time available. -
Page 15: Hints And Tips
Hints and Tips Food Storage In the Event of a Power Failure • To obtain the best results from your appliance, neither hot foods nor liquids which may If there is a power failure during the storage of evaporate, should be placed in the larder frozen foods, keep the door closed. -
Page 16: Maintenance And Cleaning
Maintenance and Cleaning Before any maintenance or cleaning work is carried out, DISCONNECT the appliance from the ELECTRICITY supply. Defrosting Internal cleaning Clean the inside and accessories with warm water Freezer and bicarbonate of soda (5ml to 0.5 litre of water). Rinse and dry thoroughly. -
Page 17: Something Not Working
Something not working If the appliance is not working correctly, please carry out the following checks, before contacting your local Service Force repair agent. IMPORTANT: If you call out an engineer to a fault listed below, or to repair a fault caused by incorrect use or installation, a charge will be made even if the appliance is under guarantee. -
Page 18: Repairs - After Sales Service
Repairs - After Sales Service Spare parts Under no circumstances should you attempt to repair the machine yourself. Repairs carried out by This product should be serviced by an authorised inexperienced persons may cause injury or serious service engineer, and only genuine spare parts should malfunctioning. - Page 20 John Lewis Partnership 171 Victoria Street London SW1E 5NN www.johnlewis.com 06/08 2223 419-02...
