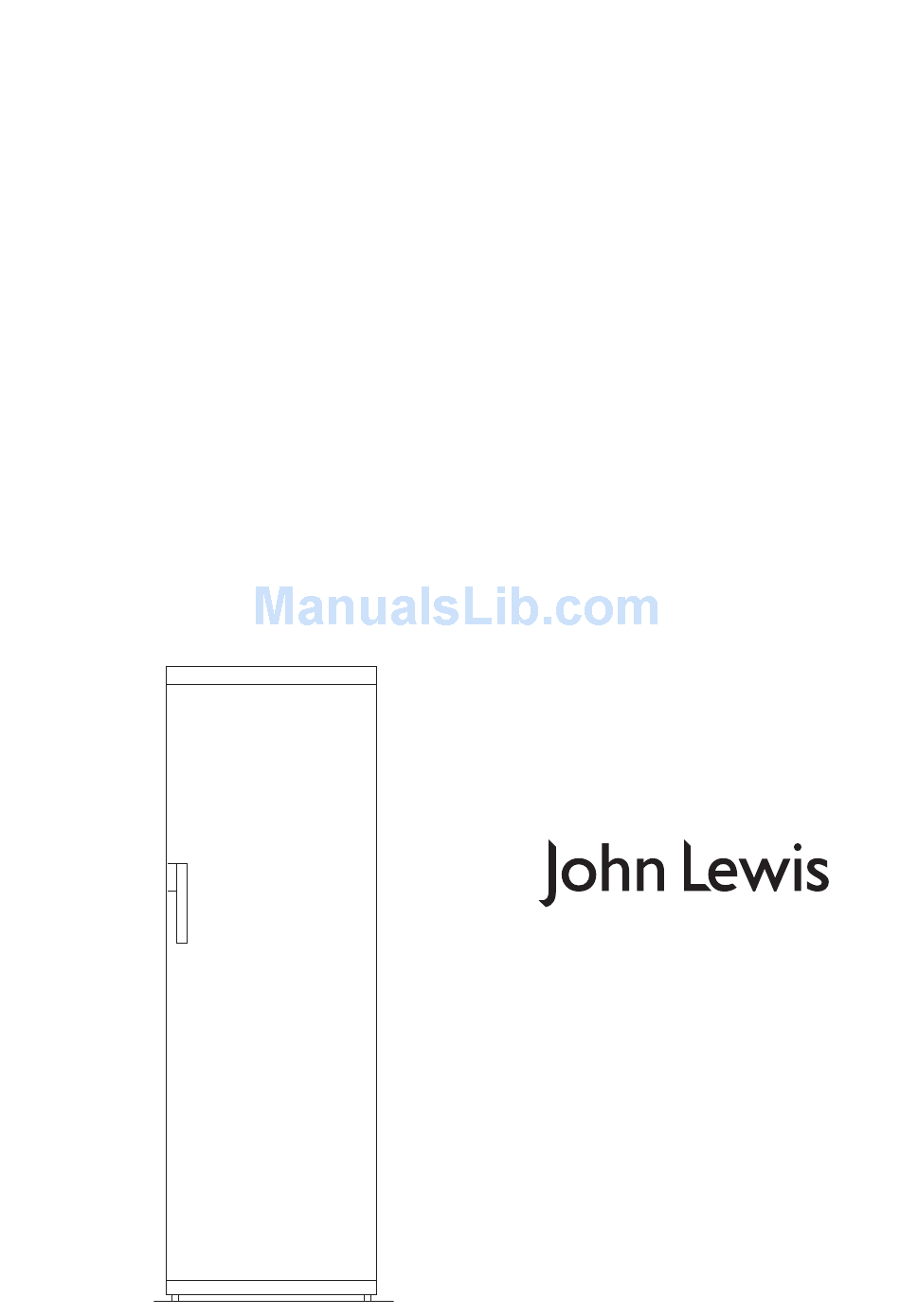

- Page 1 JLFZW1812 Freezer Instruction manual...
-
Page 2: Safety Information
These warnings have been provided in the interest of safety. You MUST read them carefully before installing or using the appliance. If you are unsure of the meanings of these warnings contact the John Lewis branch from which you purchased the appliance. -
Page 3: Daily Use
• This appliance is heavy. Care should be taken when moving it. • Do not remove nor touch items from the freezer compartment if your hands are damp/wet, as this could cause skin abrasions or frost/freezer burns. • Avoid prolonged exposure of the appliance to direct sunlight. -
Page 4: Care And Cleaning
Refer to relevant instructions. • Do not place carbonated or fizzy drinks in the freezer compartment as it creates pressure on the container, which may cause it to explode, resulting in damage to the appliance. -
Page 5: Table Of Contents
Action Freeze Function Drinks Chill Function Child Lock Function Temperature alarm First use Cleaning the interior Daily Use Use of the freezer compartment Storage of frozen food Thawing Cold accumulators Ice-cube production Helpful Hints and Tips Hints for freezing Hints for storage of frozen food... -
Page 6: Control Panel
For optimal food storage select the Eco Mode and the temperature is set to -18°C in the freezer. • Wait ca. 24 h, before loading food into the freezer compartment. • To select a different temperature see "Temperature regulation". D - Function button... -
Page 7: Functions Menu
Drinks Chill Function The Drinks Chill function is to be used as a safety warning when placing bottles in the freezer compartment. It is activated by pressing key (D) (several times if necessary) until the corresponding icon appears You must confirm the choice by pressing key (E) within few seconds. -
Page 8: Child Lock Function
Daily Use Use of the freezer compartment The symbol means that the freezer is suitable for freezing fresh food and for long term storage. The temperature may be regulated between -15°C and -24°C. We • flashing temperature • flashing icon •... -
Page 9: Storage Of Frozen Food
Small pieces may even be cooked still frozen, directly from the freezer: in this case, cooking will take longer. Cold accumulators The freezer contains at least one cold accumulator which increases storage time in the event of a power cut or breakdown. -
Page 10: Helpful Hints And Tips
• be sure that frozen foodstuffs are transferred from the foodstore to the freezer in the shortest possible time; • not open the door frequently or leave it open longer than absolutely necessary. • Once defrosted, food deteriorates rapidly and cannot be refrozen. -
Page 11: Care And Cleaning
After cleaning, reconnect the equipment to the mains supply. Defrosting of the freezer The freezer compartment of this model, on the other hand, is a "no frost" type. This means that there is no buildup of frost when it is in operation, neither on the internal walls nor on the foods. -
Page 12: What To Do If
The appliance is not supported properly. The cushion spacers located between the back of the cabinet and the pipes come loose. The temperature in the freezer is too high. An error has occurred in measuring the temperature. The Temperature regulator may be set incorrectly. -
Page 13: Cleaning The Evaporator
The temperature in the appliance is too low. The temperature in the appliance is too high. The temperature in the freezer is too high. The appliance does not operate. A large quantity of drops ice covers the top compartment inside the appliance. - Page 14 Disconnect the mains plug from the mains socket. Remove all foods from the freezer and put them in a fresh place. Move the appliance far from the wall. Leave the door open. After approximately 20 minutes the drain hose at the rear of the cabinet starts to discharge water into the drip tray.
-
Page 15: Technical Data
Technical data Dimension of the recess Rising Time Voltage Frequency The technical information are situated in the rating plate on the internal left side of the appliance and in the energy label. Installation Read the "Safety Information" carefully for your safety and correct operation of the appliance before installing the appliance. -
Page 16: Levelling
Levelling When placing the appliance ensure that it stands level. This can be achieved by two adjustable feet at the bottom in front. Positioning Warning! If you are discarding an old appliance that has a lock or catch on the door, you must ensure that it is made unusable to prevent young children being trapped inside. -
Page 17: Rear Spacers
As the colours of the wires in the mains lead of this appliance may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows: 1. Connect the wire coloured green and yellow to the terminal marked either with the letter “E“... - Page 18 Remove the door. Unscrew the pin (f) of the bottom hinge and install it on the opposite side. Unscrew the pin of the upper hinge and install it on the opposite side. Install the door in the upper hinge. Install the ventilation grille, clipping it into place.
-
Page 19: Spare Parts
Before calling out an engineer, please ensure you have read the details under the heading ''What to do if''. When you contact your local repair agent you will need to give the following details: 1. Your name, address and post code. 2. - Page 20 John Lewis Partnership 171 Victoria Street London SW1E 5NN www. johnlewis.com 222345464-A-442010...
