John Lewis JLWFF1101 Instruction Manual

John Lewis JLWFF1101 Instruction Manual

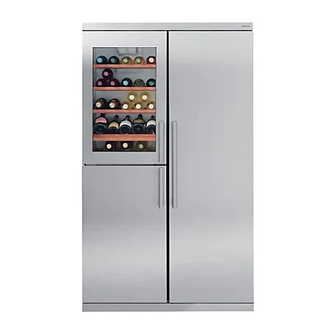

Wine cooler fridge freezer

Advertisement

JLWFF1101
wine cooler fridge freezer
Instruction manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the JLWFF1101 and is the answer not in the manual?

Questions and answers

Summary of Contents for John Lewis JLWFF1101

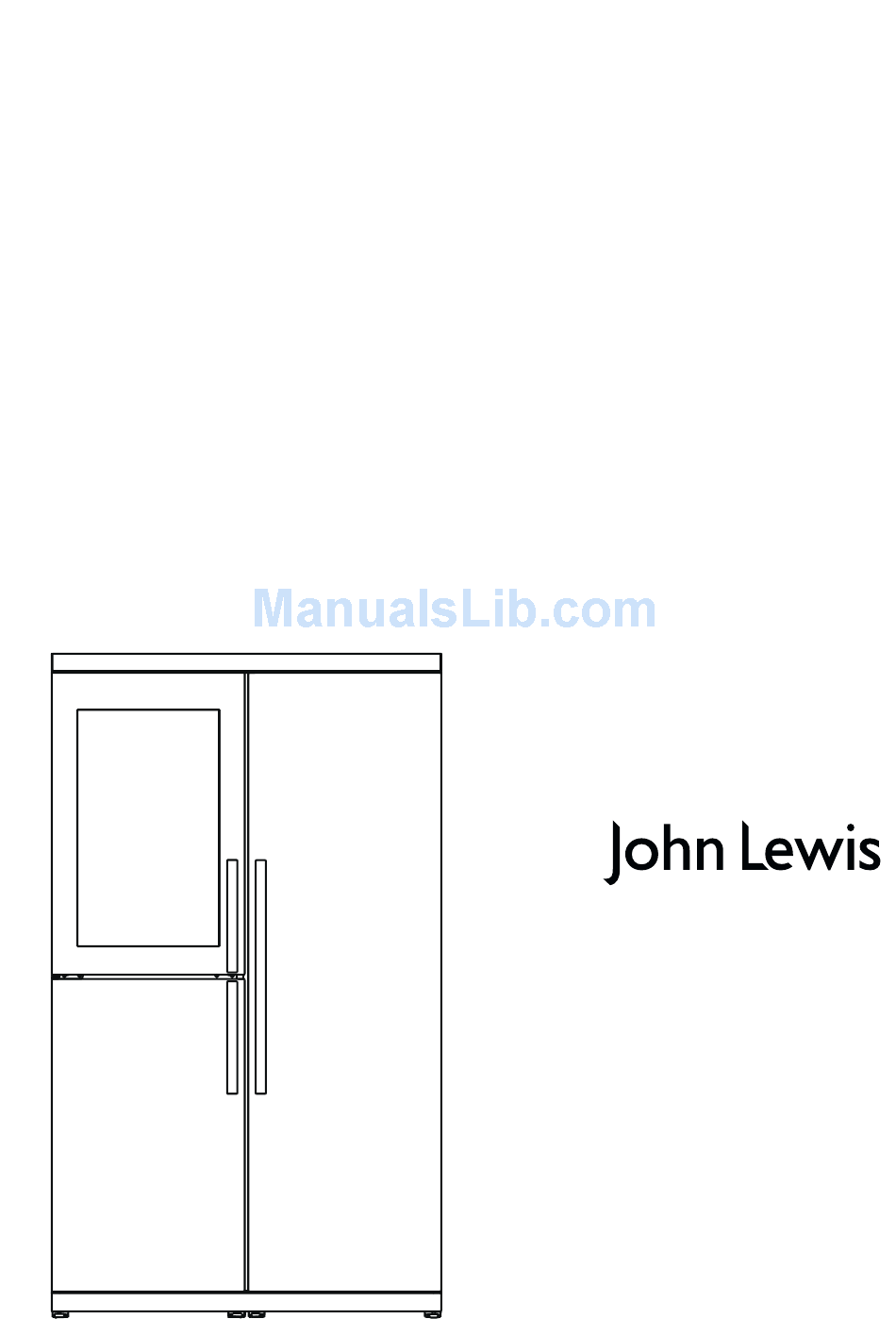

  • Page 1 JLWFF1101 wine cooler fridge freezer Instruction manual...
  • Page 2: Important Safety Information

    These warnings have been provided in the interest of safety.You MUST read them carefully before use of installation by a qualified person. If you are unsure of the meanings of these warnings contact the John Lewis branch from which you purchased the appliance. Installation •...
  • Page 3 Pack all foods into airtight packages before placing them into the freezer compartment. Food, which is to be frozen (when cool), should be placed in the fridge compartment before being transferred to the freezer.
  • Page 4: Table Of Contents

    Temperature display Switching the appliance off Using the wine cooler Wine cooler Movable shelves Normal operating sounds The control panel freezer Temperature setting buttons Temperature display Starting up - setting the temperature Quick freeze Alarm reset button Switching the appliance off...
  • Page 5: Description Of The Appliance

    Description of the appliance Control panel Interior lights Bottle shelves Freezing fresh food compartment Frozen food storage compartments Dairy compartment Moveable storage shelves Bottle shelf Quick cool system Glass shelves Salad/vegetable drawer Rating plate Adjustable feet...
  • Page 6: Installation

    Energy class, according to EU standards Rising time Noise Lc Weight Number of compressors Width Height Depth Refrigerator Wine cooler Freezer Refrigerator Wine cooler Freezer 1090 mm 1855 mm 547 mm 230-240V/50Hz 1.1 A + 1.1 A 332 l 164 l...
  • Page 7: Electrical Connection

    Electrical connection Any electrical work required to install this appliance should be carried out by a qualified electrician or competent person. WARNING: THIS APPLIANCE MUST BE EARTHED. Should the appliance power supply cables need to be replaced, this must be carried out by a Service Force agent (see page 22) The manufacturer declines any liability should this safety easure not be observed.
  • Page 8: The Control Panel Refrigerator

    The control panel refrigerator On / Push button A. Mains indicator light (green) B. Fridge compartment button ON/OFF C. Temperature setting button (+) (for warmer temperatures) D. Temperature display When the fridge is first installed Warning Allow the appliance to stand for 2 hours after installation.
  • Page 9: Using The Refrigerator

    • When the compressor is on, the refrigerant is being pumped round, and you will hear a whirring...
  • Page 10: Movable Shelves

    Movable shelves The walls of the refrigerator have runners so that the shelves can be positioned as desired. Positioning the door shelves To accomodate the storage of larger items, the door shelves can be adjusted in height. To adjust the shelves proceed as follows: Gradually pull the shelf in the direction of the arrows until it comes off, then reposition as required.
  • Page 11: Storage Time Chart (Refrigerator)

    Storage time chart (refrigerator) Time and method of storage of fresh foods in the refrigerator Notation: X usual storage time x possible storage time (concerns to really fresh product only)
  • Page 12: The Control Panel Wine Cooler

    Important: If the wine cooler is switched off, the door must be closed to ensure that the freezer is working properly. When switched off, the electronic control of the appliance functions automatically and periodically circulating the air to prevent unpleasant smells and humidity within the compartment.
  • Page 13: Temperature Display

    (DESIRED temperature). Switching the appliance off The wine cooler can be switched off independently of the freezer compartment. By switching off the freezer compartment you also switch off the wine cooler.To switch off the wine cooler, hold down the On/Off button (B) for the wine cooler for a count of 5 Sec.
  • Page 14: Using The Wine Cooler

    • When the compressor is on, the refrigerant is being pumped round, and you will hear a whirring...
  • Page 15: The Control Panel Freezer

    (approx. 5 sec.) to the display of the ACTUAL temperature. DESIRED temperature means: The temperature that has been selected for inside the freezer. The DESIRED temperature is indicated by flashing numbers. ACTUAL temperature means: The temperature display indicates the current temperature inside the freezer.The ACTUAL...
  • Page 16: Quick Freeze

    The yellow light goes out. Alarm reset button In the event of an abnormal temperature rise inside the freezer (e.g. power cut) warning light (M) will start to flash and a buzzer will sound. After the temperature has returned to normal, the warning light (M) will continue to flash, although the buzzer has stopped.
  • Page 17: Using The Freezer

    “frost/freezer burns”. Important In the event of a power cut the food in the freezer will not be affected if the power cut is short and if the freezer is full. Do not open the door. Should the food begin to thaw, it must be consumed quickly and must not be re-frozen.
  • Page 18: Hints And Tips

    • Remove suspect food from your refrigerator and clean, refer to ‘Maintenance and Cleaning’. • Ensure that food placed in the freezer is dated and labelled and used in date order to ensure that food is consumed at its best.
  • Page 19: Interior Lights

    Maintenance and cleaning Before any maintenance or cleaning work is carried out, DISCONNECT the appliance from the ELECTRICITY supply. Internal cleaning Clean the inside and accessories with warm water and bicarbonate of soda (5ml to 0.5 litre of water). Rinse and dry thoroughly. N E V E R U S E D E T E R G E N T S , ABRASIVE POWDERS,...
  • Page 20: Defrosting

    Maintenance and cleaning Defrosting Freezer Your appliance is frost free, which means there is no need to manually defrost your appliance as this will be carried out automatically. Refrigerator The refrigerator automatically defrosts every time the compressor stops.The water is discharged, via...
  • Page 21: Something Not Working

    Something not working Certain problems are due to a lack of simple maintenance or oversights, which can be solved easily without calling out an engineer. Please carry out the following checks before contacting the extended warranty administrators see Repairs - After Sales Service. IMPORTANT: If you call out an engineer to a fault listed below, or to repair a fault caused by incorrect use or installation, a charge will be made even if the appliance is under guarantee.
  • Page 22: Repairs - After Sales Service

    Mod. :... PNC :... S.N. :... Your Wine Cooler Fridge Freezer is covered by a 3 year parts and labour guarantee (see separate details given at point of sale). Please retain your purchase receipt safely for the ser vice engineer to verify the purchase details.
  • Page 24 John Lewis Partnership 171 Victoria Street London SW1E 5NN www.johnlewis.com 05/07 2223 429-22...

This manual is also suitable for:

Jlwff1101cJlwff1101r
