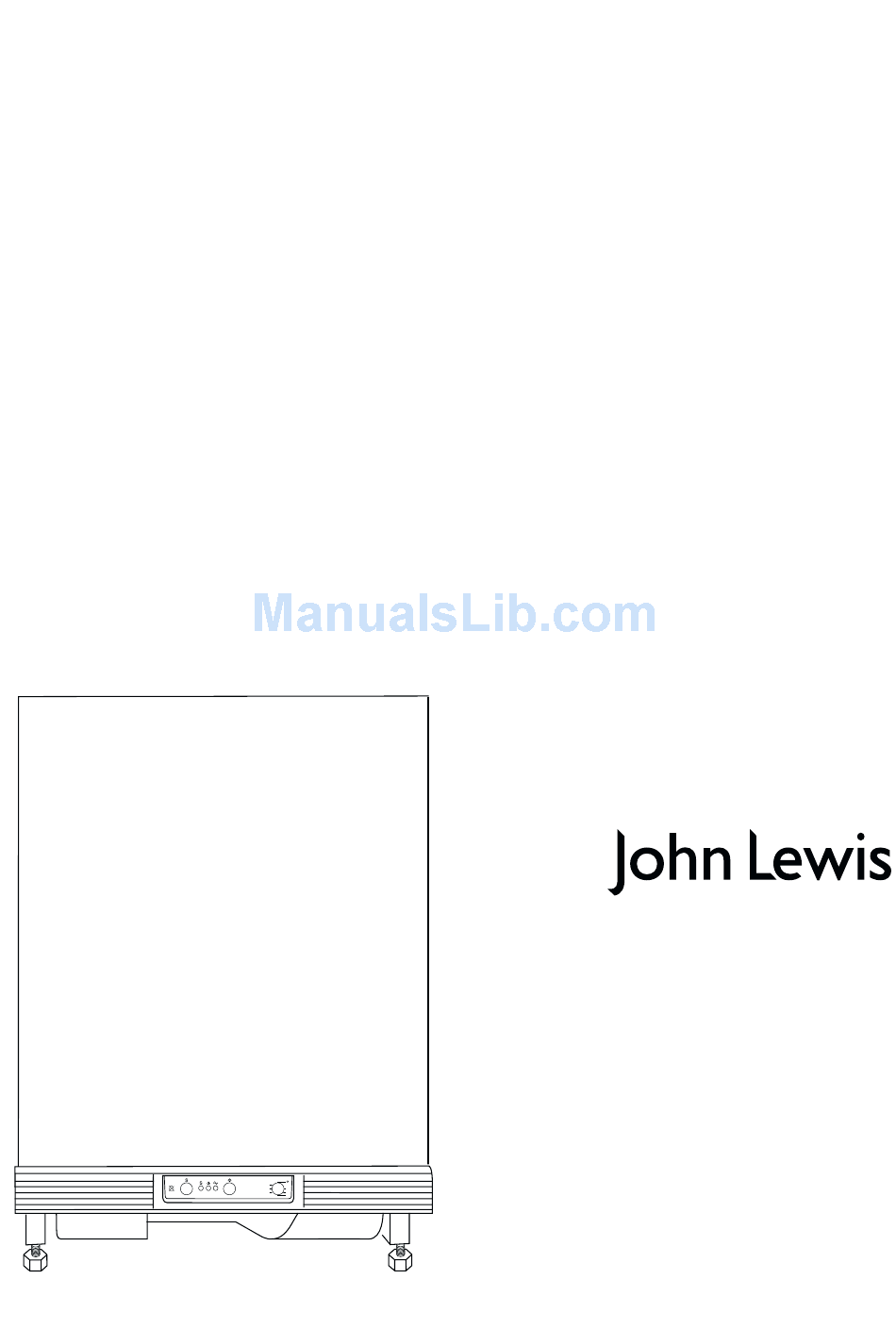

- Page 1 JLBIUCF 01 built-in freezer Instruction manual...
-
Page 2: Important Safety Information
Child Safety • This freezer is designed to be operated by adults. Do not allow children to tamper with the controls or play with the product. -
Page 3: Environmental Information
Environmental Information • When disposing of your appliance, use an authorised disposal site. • Remove the plug and ensure that any locks or catches are removed, to prevent young children being trapped inside. • The symbol on the product or on its packaging indicates that this product may not be treated as household waste. -
Page 4: Table Of Contents
Contents For the User Important Safety Information Description of the appliance Control panel Start your appliance Temperature control Before using Freezing fresh food Frozen food storage Thawing Making ice cubes Normal operating sounds Hints and Tips Maintenance and Cleaning Internal cleaning When the appliance is not in use Periodic cleaning Defrosting... -
Page 5: Description Of The Appliance
Description of the Appliance 1 Frozen food storage compartments 2 Freezing fresh food compartment 3 Control panel... -
Page 6: Installation
Width Depth Dimensions of the appliance cavity Height Width Depth Freezer Gross capacity Freezer Net capacity Electrical connection Any electrical work required to install this appliance should be carried out by a qualified electrician or competent person. WARNING:THIS APPLIANCE MUST BE EARTHED. - Page 7 Warning IF YOU ARE DISCARDING AN OLD APPLIANCE THAT HAS A LOCK OR CATCH ON THE DOOR, YOU MUST ENSURE THAT IT IS MADE UNUSABLE TO PREVENT YOUNG CHILDREN BEING TRAPPED INSIDE. Depending upon the position which you choose for your appliance, you may wish to reverse the way in which the door opens.To do this, refer to instructions on “Door reversal directions”.
-
Page 8: Door Reversal
Door Reversal To reverse the opening direction of the door, proceed as shown in the figures: Warning After completion of the door reversing operation, check that the door gasket adheres to the cabinet. If the ambient temperature is cold (i.e. in Winter), the gasket may not fit perfectly to the cabinet. -
Page 9: Grid Preparation
Building In Before carrying out any work, remove the plug from the power socket. Grid preparation Left door opening: Remove the left side (A) of the grid cutting it from the rear (see figure). DO002/2 Right door opening: Remove the right side (B) of the grid cutting it from the rear (see figure). - Page 10 2. Push the appliance into place.The plug socket necessary for connection of the appliance to the electricity supply should be positioned, so that the plug is not placed in the recess. 3. To adjust the height proceed as follows: - Loosen or tighten the two front feet. - The rear feet are adjusted by turning the screw in the front kick plate to the left or right.
- Page 11 ° Upper part of kitchen furniture panel...
-
Page 12: Fitting The Plinth
7. Refit the covering strip (A). Fitting the plinth Important For the efficient operation of the appliance, it is important that the original ventilation grid is used. • For an opening height dimension A=820 mm and a plinth height dimension a=100 mm, the plinth may be fitted without adjustments.The same applies to an opening height dimension B=870 mm and a plinth height dimension b=150 mm. -
Page 13: The Control Panel
Position 6 = maximum coldness Turn the thermostat control knob beyond the «O» position. When you first start the freezer, we suggest that you turn the thermostat control to a medium setting. For easier turning of this control, use a small coin.The internal temperature of the freezer is... -
Page 14: Before Using
During the freezing process, ensure that the freezer door remains closed. Frozen food storage When you first start the freezer or if the freezer has been out of use for some time, we advise you to run your appliance for at least two hours in the «fast freeze»... -
Page 15: Thawing
The appliance is provided with one or more trays for ice-cubes trays. Fill the tray(s) 3/4 full to give the ice space to expand and place them in the freezer compartment. To release the ice cubes simply give the tray a slight twist. -
Page 16: Hints And Tips
• Remove suspect food from your refrigerator and clean, refer to ‘Maintenance and Cleaning’. • Ensure that food placed in the freezer is dated and labelled and used in date order to ensure that food is consumed at its best. -
Page 17: Maintenance And Cleaning
1. Remove the plinth (1), then the ventilation grid (2); 2. Carefully pull the air deflector out (3). Defrosting The freezer compartment will become progressively covered with frost.This should be removed with the special plastic scraper provided, whenever the thickness of the frost exceeds 1/4". -
Page 18: Something Not Working
Before contacting your local Service Force Centre, check the following points: SYMPTOM No power to the appliance The temperature in the freezer section is too high The freezer door will not open The compressor runs continously... -
Page 19: Repairs - After Sales Service
Repairs - After Sales Service If your appliance is not performing satisfactorily; consult the fault finding guide within this instruction book (Something not working). In the event of a fault occurring which you cannot resolve yourself from advice given within this instruction manual your first step is to contact our extended warranty administrators on 0870 0107887 who will give you details for your local Service Force Repair Agent. - Page 20 John Lewis Partnership 171 Victoria Street London SW1E 5NN www.johnlewis.com 03/06 2222 717-81...
