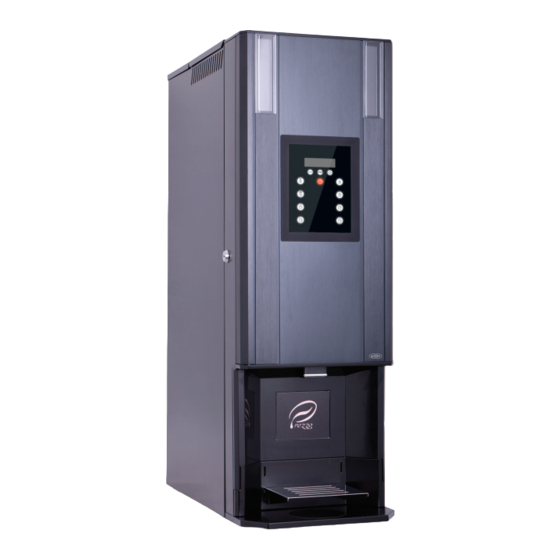

Summary of Contents for Coffee Queen PREZZO
- Page 1 PREZZO USER MANUAL UM_EN Part No.: 1764012_03...
-
Page 2: Table Of Contents
CONTENT PREZZO CONTENT ..................................2 SYMBOL DESCRIPTION ............................4 Hazard intensity levels ................................. 4 GENERAL ..................................5 Introduction ................................... 5 Warnings ....................................5 Precautions ..................................... 5 Intended use ................................... 5 TECHNICAL SPECIFICATIONS .........................6 Facts & weight ..................................6 OVERVIEW OF COMPONENTS ........................7 Front ......................................7 Interior .................................... - Page 3 CONTENT PREZZO Beverage setup, Strength ..............................21 Beverage setup, Volume ..............................22 Beverage setup, Drink Settings ............................23 Beverage setup, Recipe Bank ............................24 Beverage setup, Enable Beverage ............................ 25 Drink setup..................................26 DIMENSION SKETCH ............................27...
-
Page 4: Symbol Description
SYMBOL DESCRIPTION PREZZO Hazard intensity levels There are three different levels of hazard intensity, identified by signal words DANGER, WARNING and IMPORTANT. The level of hazard is determined by the following definitions. Observe the statements to ensure safety, performance, prevent injury and machine damage. -
Page 5: General
GENERAL PREZZO Introduction Thank you for choosing a PREZZO vending machine. We hope you enjoy it ! Read the user guide before using the machine. Always keep this guide close at hand for future This guide contains important instructions for reference. -
Page 6: Technical Specifications
TECHNICAL SPECIFICATIONS PREZZO Facts & weight FACTS PREZZO Built-in grinder Drink options Ingredient canister None Bean hoppers Brewing mechanism None Cleaning function by smart card Electronic temperature control Adjustable coffee strength Illumination of cup during brewing Base cabinet: large grounds container... -
Page 7: Overview Of Components
OVERVIEW OF COMPONENTS PREZZO Front Bean Hopper Display Strength Adjustment Stop Energy Saving Mode Smart Card Drink Menu Reader Door Lock Outlet Hot Drinks Decanter Tray... -
Page 8: Interior
OVERVIEW OF COMPONENTS PREZZO Interior Bean Hopper Bean Stop Grinder Grinder Outlet Grinder Adjustment Wheel Mixing bowl Drink Outlet Waste Box Ingredient canisters DETAIL INGREDIENTS WIDTH DEPTH HEIGHT CAPACITY DECANTERS Hopper Beans ---- ---- ---- 1.25kg ~20-65 Hopper Beans ----... -
Page 9: Membrane Switch Navigation
OVERVIEW OF COMPONENTS PREZZO Membrane switch navigation Button functions Press the BACK button if you want to leave the submenu and go back in the menu. Press the ENTER button to select a menu function, confirm a set value or a setting. -
Page 10: User Card
OVERVIEW OF COMPONENTS PREZZO User card PREZZO USER CARD User card Is used for cleaning of the machine. User card is supplied by your dealer. Front Back Insert the user card with the chip upwards as in the figure above. The display will... -
Page 11: Installation And Start-Up
Set temperature is 90ºC. Once the water heating is complete “Low temp” text will disappear from the display. (The display text will start to rotate between these two screens SELECT PRODUCT PREZZO COFFEE... -
Page 12: Fill Bean Hoppers
INSTALLATION AND START-UP PREZZO Fill bean hoppers Open the machine door. Raise the machine lid (A). Remove the bean hoppers Push in the bean stops from the machine. on the bean hoppers to prevent bean spillage (B). Refill the hoppers with... -
Page 13: Operation
OPERATION PREZZO Brewing a decanter of coffee Factory Settings ......... Small Decanter =250ml ~19g beans ......... Medium Decanter =500ml ~30g beans ......... Large Decanter =750ml ~45g beans ......... Place a decanter under the outlet for hot drinks. Grand Decanter Select desired size by pressing any of these different decanter buttons =1000ml Please wait... -
Page 14: Cleaning Program
CLEANING PROGRAM PREZZO Automatic cleaning Cleaning panel Automatic rinsing of the mixing bowl Open the door. Press ENTER on the cleaning panel inside the door. (See Fig. A) Cleaning Hot key appears on the display (cleaning panel is now active), the display shows: Cleaning hot key Put a container that holds at least 0.5 litres under the outlet for hot drinks. -
Page 15: Cleaning And Care
CLEANING AND CARE PREZZO Weekly cleaning Disassemble mixing system Lift up the mixer bowl so it detaches from the Pull the mixer bowl straight out, then clean outlet. these parts. Reassemble mixing system Push-fit the mixing bowl by pushing it as far in Press down the mixer bowl as far as possible as possible. -
Page 16: Exterior Cleaning
CLEANING AND CARE PREZZO Exterior cleaning Exterior cleaning when necessary To clean the exterior of the machine, use a soft cloth and liquid cleaning agent that is non-abrasive. If using a machine equipped with touch display do not spray cleaning liquid directly on the display. Use only LCD screen cleaner designed for touch display cleaning. -
Page 17: Message Shown On Display
MESSAGE SHOWN ON DISPLAY PREZZO Message On Display Indication Energy Saving Mode The machine is in energy saving mode. Not Available Drink can not be selected as decanter. Heating Water Low temperature in the water tank, the machine is heating up Please Wait... -
Page 18: Programming
PROGRAMMING PREZZO Activate programming with user card Insert user card in the card reader (See Fig. A) The display shows: Service Menu Clean Machine Press button to scroll Service Menu Counters between the different menus Service Menu Beverage Setup Clean machine Open the door. -
Page 19: Counters
PROGRAMMING PREZZO Counters See the counter of each drink or total counters for all drinks. Service Menu It’s also possible to reset the drink counters. Counters Service Menu Counters Press Press Press Counters Beverage Counters Drink 1 Beverages Per Beverage... - Page 20 PROGRAMMING PREZZO Counters See the number of times cleaning has been performed or Service Menu reset the water filter counter. Counters Press Clean Counter Counters Brewer xxx Clean Counter Press to go forward in the menu Clean Counter Press Total xxx...
-
Page 21: Beverage Setup, Strength
PROGRAMMING PREZZO Beverage setup, Strength Change strength of the different drinks. If you are using a Service Menu recipe with both grinders, Strenght will only change the Beverage Setup grinding time for the left grinder. Press STRENGTH Press Factory default value... -
Page 22: Beverage Setup, Volume
PROGRAMMING PREZZO Beverage setup, Volume Service Menu Change volume of the different drinks. Beverage Setup Press VOLUME Press Factory default value Increase Beverage Setup Drink 1 Drink 1 or reduce Volume Volume xx ml Volume xx ml value in ml To go forward in menu. -
Page 23: Beverage Setup, Drink Settings
PROGRAMMING PREZZO Beverage setup, Drink Settings Change grinding time for right grinder if you are using a Service Menu recipe with both grinders. Beverage Setup Press Press DRINK SETTINGS Factory default value Increase or Beverage Setup Drink 1 Drink 1... -
Page 24: Beverage Setup, Recipe Bank
PROGRAMMING PREZZO Beverage setup, Recipe Bank Change recipe on different buttons. You can find all Service Menu recipes and drink codes on page 24. Beverage Setup Press Press Choose which drink key (key Beverage Setup Key#ZZ R#XXX #ZZ) that should be related to Recipe Bank <Drink 1 name>... -
Page 25: Beverage Setup, Enable Beverage
PROGRAMMING PREZZO Beverage setup, Enable Beverage Service Menu Enable or disable different drinks and buttons. Beverage Setup Press Press ENABLE BEVERAGE Beverage Setup Drink 1 Drink 1 Enable Beverage Enable Bev ON Enable Bev On-Off To go forward in menu. -
Page 26: Drink Setup
PROGRAMMING PREZZO Drink setup Button RB Code DRINKS Grinder VOLUME BEANS Normal Normal % in machine #R009 Small jug left Left 150ml 800ml 250ml 18.5g #R011 Medium jug left Left 150ml 1000ml 500ml #R013 Large jug left Left 150ml 1500ml... -
Page 27: Dimension Sketch
DIMENSION SKETCH PREZZO PREZZO Model PREZZO 865mm 290mm 532mm 160mm 200mm 240mm... - Page 28 For the warranty to be valid the conditions for maintenance must have been followed according to our instructions, proper precaution has been made and warranty claim been issued without delay. The affected equipment may not be used during awaiting service if there is any risk that the damage or defect would worsen.
