Promax RANGERNeo 2 ISDB-T Quick Reference Manual page 16

RANGER Neo

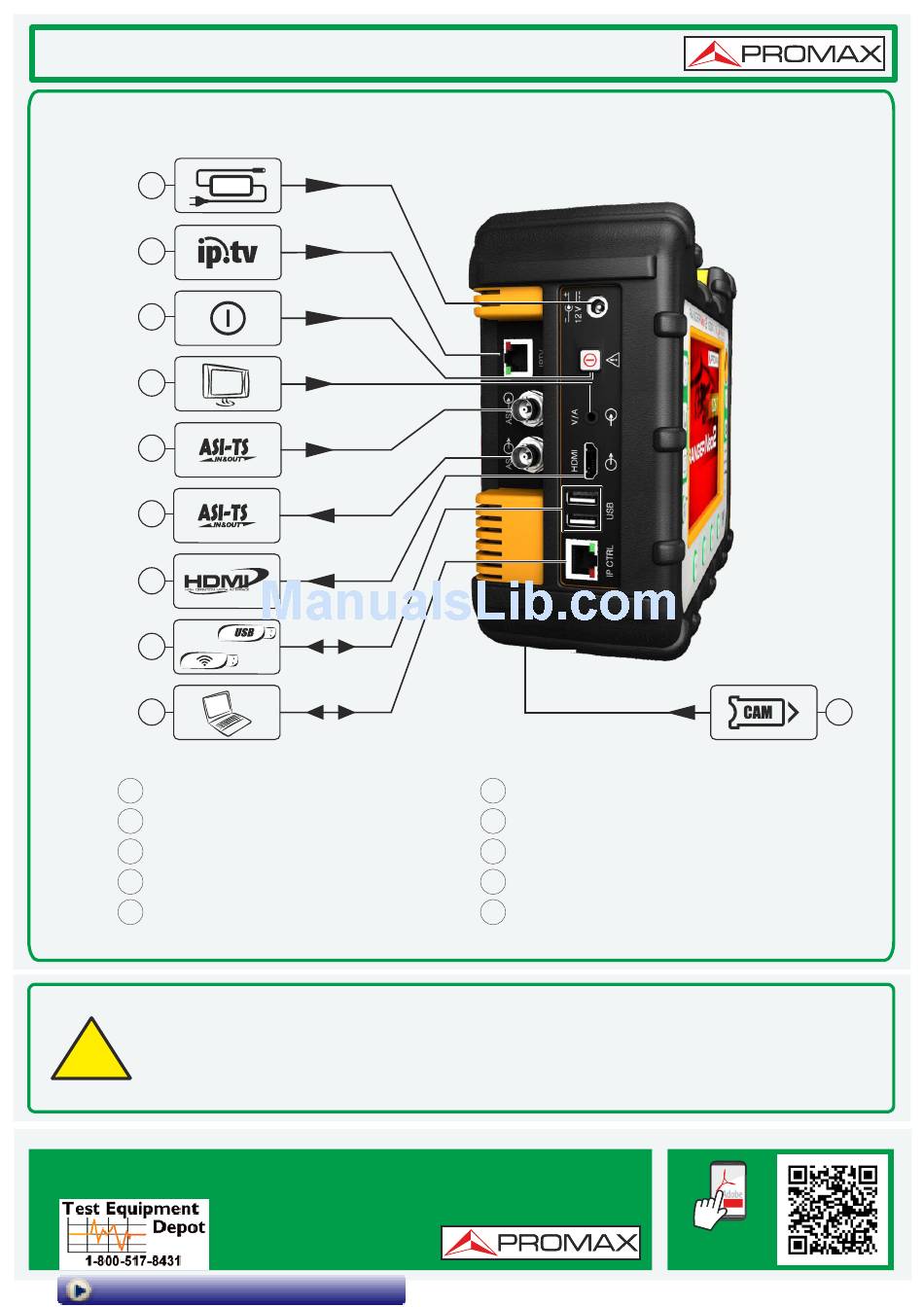

SIDE VIEW
18
19
20
21
22
23
24
25
26
18 Power input connector
19 ETHERNET connector
20 ON/OFF button
21 Video/Audio input
22 ASI-TS input
* not included
RESET
!
If the device crashes, press the ON/OFF button for 10 seconds. If the device
does not respond then press the F4 key for 6 seconds and then release to
reset (see user's manual for more information).
v23.3
RANGER
Visit us at www.TestEquipmentDepot.com
2
ISDB-T/T
Neo 2 ISDB-T/T
99 Washington Street
Melrose, MA 02176
Phone 781-665-1400 Toll
Free 1-800-517-8431
B
QUICK REFERENCE GUIDE
23
ASI-TS output
24
HDMI output
25
USB connectors
26
ETHERNET connector for PC (NetUpdate)
27
Input connector for CAM module *
B
27
20-03-2017 (0 DG0237)
