AC Pro GMV-ND07C/A-T(U) Owner's Manual

Multi variable air conditioners console type indoor unit
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
 Thank you for choosing Air Conditioners, please read this owner's manual carefully before
operation and retain it for future reference.
Multi Variable Air Conditioners
Type Indoor Unit
Owner's Manual
Air Conditioners
Models:
GMV-ND07C/A-T(U)
GMV-ND09C/A-T(U)
GMV-ND12C/A-T(U)
GMV-ND18C/A-T(U)
Console

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GMV-ND07C/A-T(U) and is the answer not in the manual?

Questions and answers

Related Manuals for AC Pro GMV-ND07C/A-T(U)

Summary of Contents for AC Pro GMV-ND07C/A-T(U)

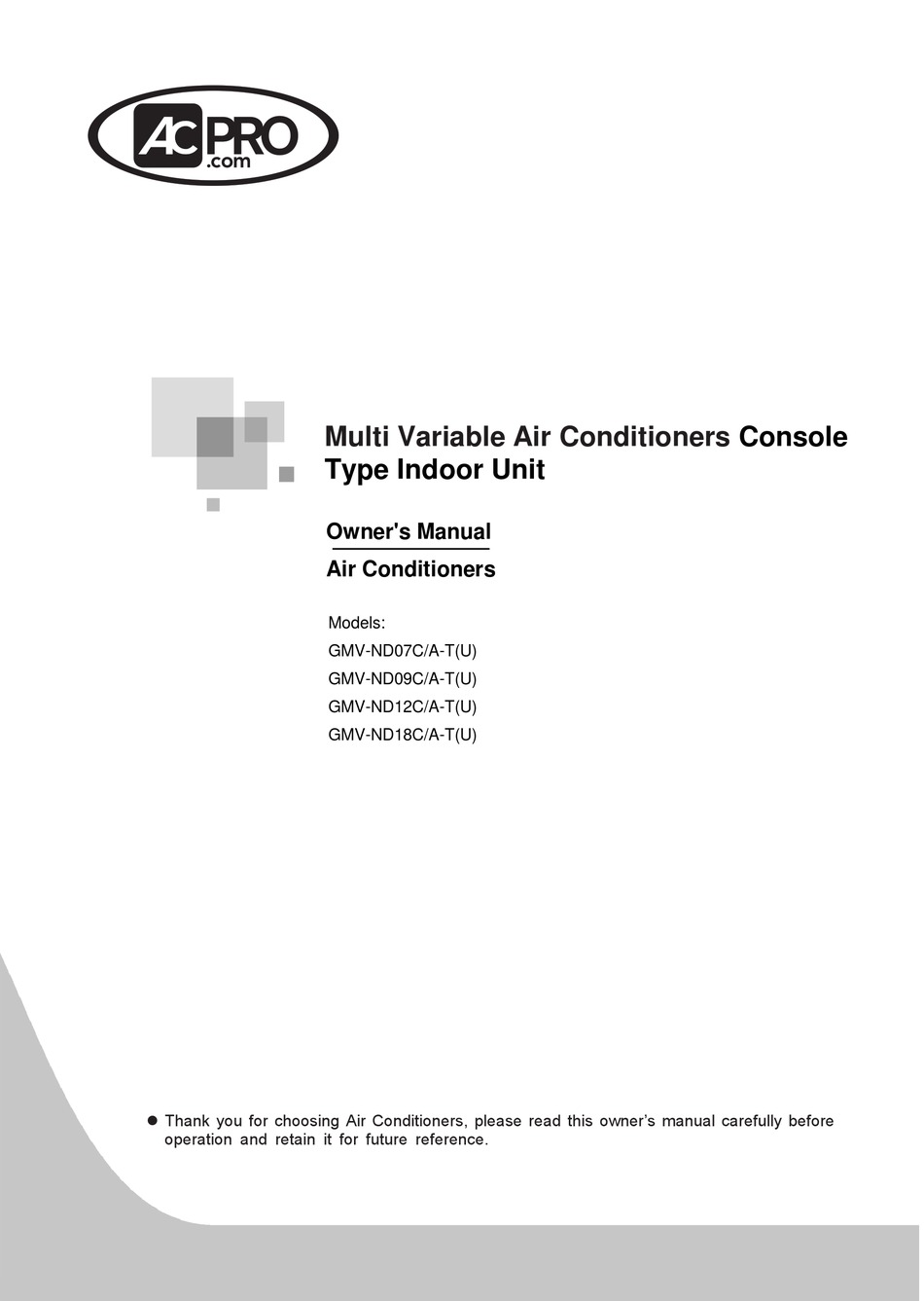

  • Page 1 Multi Variable Air Conditioners Console Type Indoor Unit Owner's Manual Air Conditioners Models: GMV-ND07C/A-T(U) GMV-ND09C/A-T(U) GMV-ND12C/A-T(U) GMV-ND18C/A-T(U)  Thank you for choosing Air Conditioners, please read this owner’s manual carefully before operation and retain it for future reference.

  • Page 2: User Notice

    Preface For correct installation and operation, please read all instructions carefully. Before reading the instructions, please be aware of the following items: This is the safety alert symbol. It is used to alert you to potential personal injury hazards. Obey all safety messages that follow this symbol to avoid possible injury or death.

  • Page 3: Table Of Contents

    Content 1 Safety Precautions · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · 1 2 Installation of Indoor Unit ·...

  • Page 4: Safety Precautions

    Multi Variable Air Conditioners Console Type Indoor Unit 1 Safety Precautions Follow this instruction to complete the installation work. Please carefully read this manual before unit startup and service. Wire size of power cord should be large enough.The damaged power cord and connection wire should be replaced by exclusive cable.

  • Page 5: Installation Of Indoor Unit

    Multi Variable Air Conditioners Console Type Indoor Unit 2 Installation of Indoor Unit  Selection of Installation location. (1). Such a place where cool air can be distributed throughout the room. (2). Such a place where condensation water is easily drained out. (3).
  • Page 6 Multi Variable Air Conditioners Console Type Indoor Unit Location for securing the installation pane Schematic drawing of hooks.

  • Page 7: Refrigerant Piping

    Multi Variable Air Conditioners Console Type Indoor Unit 2.2 Refrigerant Piping (1). Drill a hole (65mm (2-5/9in) in diameter ) in the spot indicated by О the symbol in the illustration ad below. (2). The location of the hole is different depending on which side of the pipe is taken out. (3).

  • Page 8: Drain Piping

    Multi Variable Air Conditioners Console Type Indoor Unit 2.3 Drain Piping (1). Use commercial regid polyvinyl chloride pipe general VP 20 pipe, outer diameter 26mm(1in), inner diameter 20mm(3/4in) for the drain pipe. (2). The drain hose (outer diameter 18mm(7/10in) at connecting end, 220mm(8-2/3in) long)is supplied with the indoor unit.
  • Page 9 Multi Variable Air Conditioners Console Type Indoor Unit For Moldings: Remove the pillars. (Remove the slit portions on the bottom frame using nippers.) For Side Piping: Remove the pillars. (1). Remove the 7screws. (2). Remove the upper casing (2 tabs). (3).
  • Page 10 Multi Variable Air Conditioners Console Type Indoor Unit 2.4.2 Installation Secure using 6 screws for floor installations. (Do not forget to secure to the rear wall.) For wall installations, secure the mounting plate using 5 screws and the indoor unit using 4 screws.
  • Page 11 Multi Variable Air Conditioners Console Type Indoor Unit (4). Flare the pipe. (5). Check that the flaring is properly made. 1 DO not use mineral oil on flared part. 2 Prevent mineral oil from getting into the system as this would reduce the lifetime of the units. 3 Never use piping which had been used for previous installations.
  • Page 12 Multi Variable Air Conditioners Console Type Indoor Unit  Selection of copper and heat insulation materials: When using commercial copper pipes and fittings, observe the following: (1). Insulation material: Polyethylene foam Heat transfer rate:0.041 to 0.052W/mK(0.035 to 0.045kca/(mh℃) Refrigerant gas pipe’s surface temperature reaches 110℃（230℉） max. Choose heat insulation materials that will withstand this temperature.
  • Page 13 Multi Variable Air Conditioners Console Type Indoor Unit 1 Insulate the joint of the pipes securely.Incomplete insulation may lead to water leakage. 2 Push the pipe inside so it does not place undue force on the front grille. Connecting the drain hose Insert the supplied C drain hose into the socket of the drain pan.
  • Page 14 Multi Variable Air Conditioners Console Type Indoor Unit The power of every indoor unit should be unity power supply. 2 Do not use tapped wires, stranded wires, extensioncords, or starburst connections, as they may cause overheating,electrical shock, or fire. Do not use locally purchased electrical parts inside the product. (Do not branch the power for the drain pump, etc, from the terminal block.) Doing so may cause electric shock or fire.) (1).

  • Page 15: Constitutes And Names Of Every Part Of Indoor Unit

    Multi Variable Air Conditioners Console Type Indoor Unit Install the connection pipes Connect the connect pipe with the two relative leading pipe, tie the nut on tie in of the connect pipe tightly. 1 Be careful in bending the connection pipes, or you will damage the pipes. 2 If the tightening torque is too great in tightening the flare nut, leakage will happen.

  • Page 16: Working Temperature Range

    Multi Variable Air Conditioners Console Type Indoor Unit The louvers are inside of the air outlet. (6). Air inlet (7). Air filter (8). Flap (horizontal blade) (9). Cool mode lamp (10). Heat mode lamp (11). Dry mode lamp (12). Run lamp (13).

  • Page 17: Remote Controller Yap1F

    Multi Variable Air Conditioners Console Type Indoor Unit 5 Remote Controller YAP1F 5.1 Button name and function introduction Button name Function ON/OFF Turn on or turn off the unit TURBO Set turbo function MODE Set operation mode Set up&down swing status I FEEL Set I FEEL function Switch temperature displaying type on the unit’s display...

  • Page 18: Preparation Before Operation

    Multi Variable Air Conditioners Console Type Indoor Unit 5.2 Preparation before operation When using the remote controller for the first time or after replacing the batteries, please set the time of the system according to current time in the following steps: (1).
  • Page 19 Multi Variable Air Conditioners Console Type Indoor Unit circularly as below: Note: operate continuously left&right swing in 2 seconds, swing states will change according to above-mentioned order, or switch closed state and state; （5）Setting turbo function Under cool or heat mode, press TURBO button to set turbo function. When is displayed, turbo function is on.
  • Page 20 Multi Variable Air Conditioners Console Type Indoor Unit Press button until is disappeared, then air function is turned off. When the indoor unit is connected with fresh air valve, air function setting can control the connection of fresh air valve, which can control the fresh air volume and improve the air quality inside the room.

  • Page 21: Introduction Of Special Functions

    Multi Variable Air Conditioners Console Type Indoor Unit 5.4 Introduction of special functions (1). Setting child lock Press button simultaneously to lock the buttons on remote controller and displayed. Press button simultaneously again to unlock the buttons on remote controller and is not displayed.

  • Page 22: Maintenance Method

    Multi Variable Air Conditioners Console Type Indoor Unit Fig.1 Fig.2 1 The remote controller should be placed 1m(3-1/4ft) away from the TV set or stereo sound sets. 2 The operation of remote controller should be performed within its receiving range. 3 If you need to control the main unit, please point the remote controller at the signal receiving window of the main unit to improve the receiving sensibility of main unit.
  • Page 23 Multi Variable Air Conditioners Console Type Indoor Unit (5). Attach the front panel. · Insert the front panel into the grooves of the unit (3 places). · Attach the string to the right, inner-side of the front grille. · Close the panel slowly. CAUTION Don’t touch the metal parts of the indoor unit.

  • Page 24: Filters

    Multi Variable Air Conditioners Console Type Indoor Unit 6.3 Filters (1). Open the front panel. (2). Remove the air filter. · Press the claws on the right and left of the air filter down slightly, then pull upward. (3). Take off the Titanium Apatite Photocatalytic Air-Purifying Filter. ·...

  • Page 25: Titanium Apatite Photocatalytic

    Multi Variable Air Conditioners Console Type Indoor Unit 6.4 Titanium Apatite Photocatalytic Air-Purifying Filter The Titanium Apatite Photocatalytic Air-Purifying Filter can be renewed by washing it with water once every 6 months. We recommend replacing it once every 3 years. (1).

  • Page 26: Function Description Of Functional Dial Switch S7

    Multi Variable Air Conditioners Console Type Indoor Unit (4). Take out batteries from the remote controller. WARNING When a multi outdoor unit is connected, make sure the heating operation is not used at the other room before you use the fan operation. 7 Function Description of Functional Dial Switch S7 (1).

  • Page 27: Service Center

    Multi Variable Air Conditioners Console Type Indoor Unit Malfunction Phenomena Malfunction Analyzing The air conditioner can’t start up The over load protect switch of the unit makes it runs after 3 mins delay just after turned off Odor gave out when the unit just This is because when air conditioning, odors or cigarette smoke from the room turned on that was sucked in is discharged again.
  • Page 28 Add: 11700 Industry Ave., Fontana, CA 92337, USA Tel: 1-951-360-0630 E -mail: www.acpro.com...

This manual is also suitable for:

Gmv-nd09c/a-t(u)Gmv-nd12c/a-t(u)Gmv-nd18c/a-t(u)
