Macintosh Serial Cable Setup

Mac

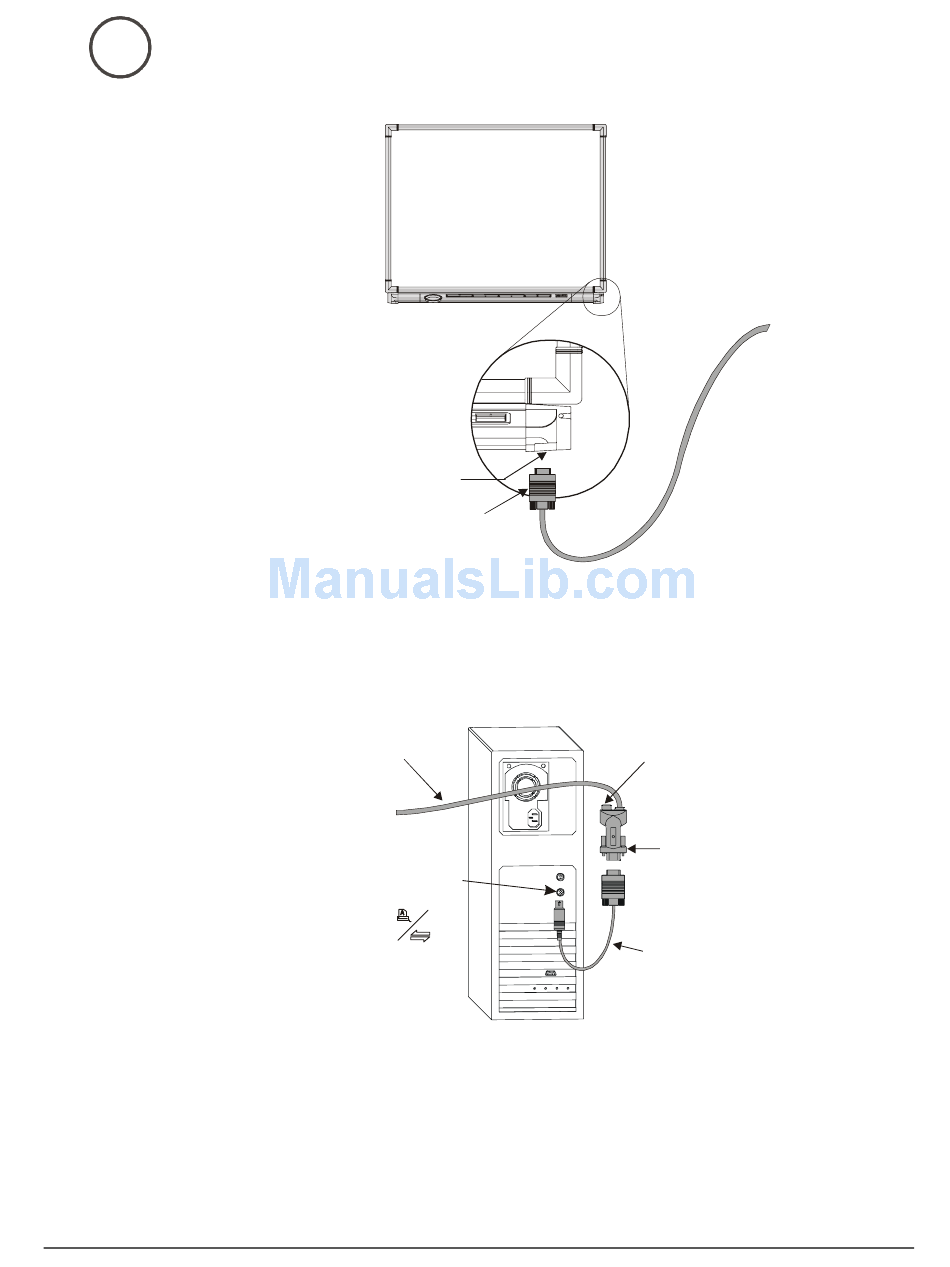

1 Connect the short DB9 end of the supplied serial cable to the 9-pin serial port
underneath the interactive whiteboard.
2 Attach the supplied Macintosh serial adapter to the long DB9 end of the supplied serial
cable and insert the barrel-shaped end of the adapter into the modem or printer port
on your Macintosh computer.
viii
9-pin Serial Port
(Underneath Board)
Short DB9 Connector
Supplied Serial Cable
Modem or Printer Port
Preface
Power Plug
Socket
Long DB9
Connecter
Macintosh
Serial Adapter
