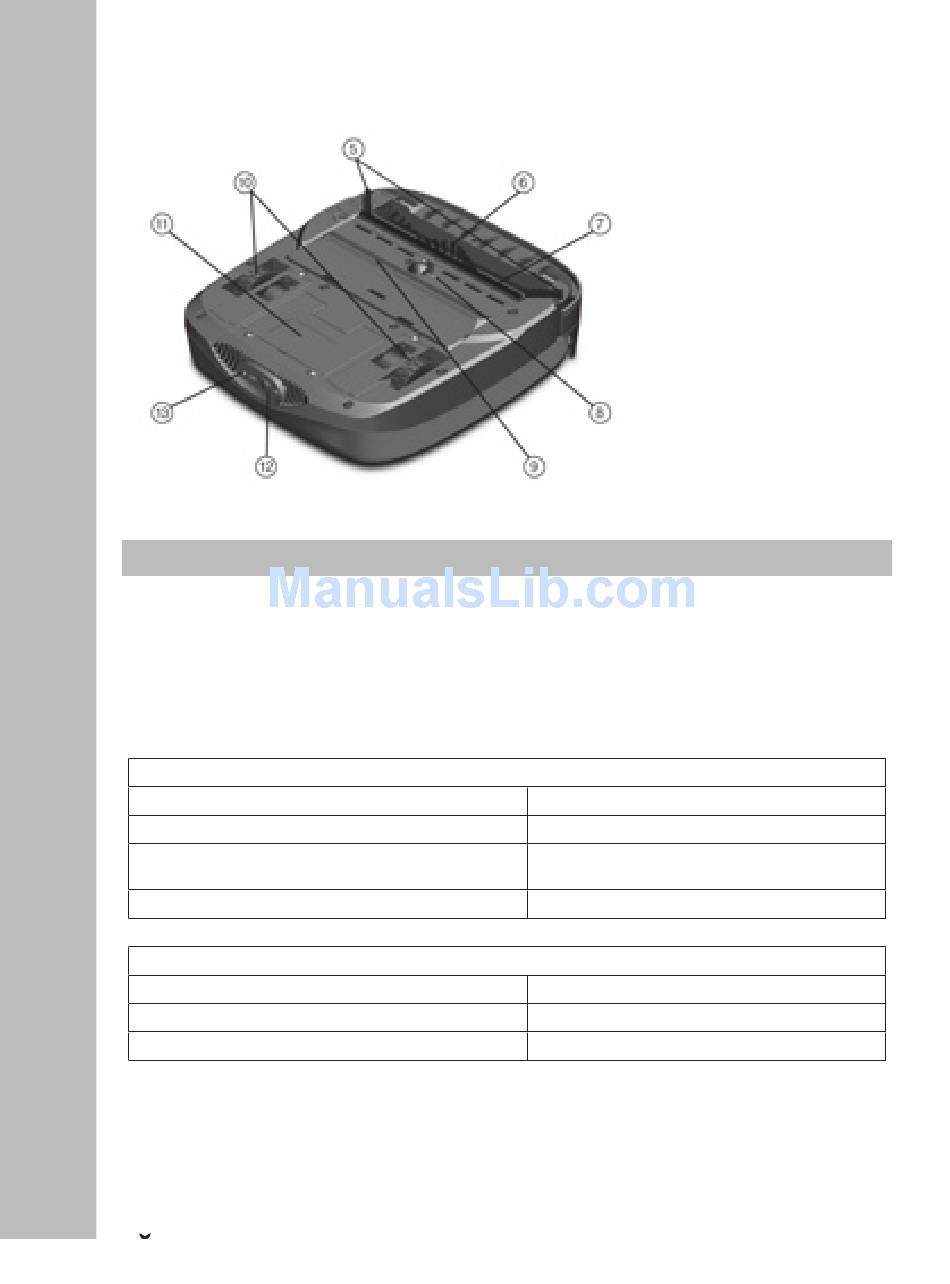

BOTTOM VIEW
CHARGING BATTERY:
• Plug the adapter plug into the port in the back of the Robot. Check the main power switch is in OFF position.
Plug the other end of the charger in to the wall outlet. The LED indicator lights will turn Red when the Robot is charging.
• Charge the battery for 4 hours before initial use.
• When the Robot is fully charged, the LED indicator lights turn green.
LED INDICATOR LIGHTS – ACTIONS:
During Operation
2 LED slow blinking in green
2 LED slow blinking in red
2 LED fast blinking in red
2 alternating red LED lights
During Charging
2 LED in red
2 LED in green
2 LED lights alternating red and green
BEFORE OPERATING ROBOT:
• Remove extension power cords, clothing, loose papers and small objects from the floor that could entan-
gle with the cleaning brushes.
• This Robot is not suitable for use on thick pile carpet. Before using the Robot near an area with a rug, tuck
rug fringe under the rug base. Plus, lift items such as curtains and tablecloths off the floor.
8
C73_2016_07 Robot VR 101_manual_intl_06062 Version: 2 703389
October 10, 2016 / TSU 152197

Product Use Directions

5. Corner Brush
6. Brush Bar
7. Centre Brush
8. Centre Wheel
9. Vacuum Port
10. Drive Wheels
11. Battery Compartment
12. Power Switch
13. Charging Port
Robot ready to be used
Battery low
Robot trapped or Robot picked-up or
over-loaded or battery temperature high
Brush bar jammed
Robot is charging
Charging complete
Robot needs repair
