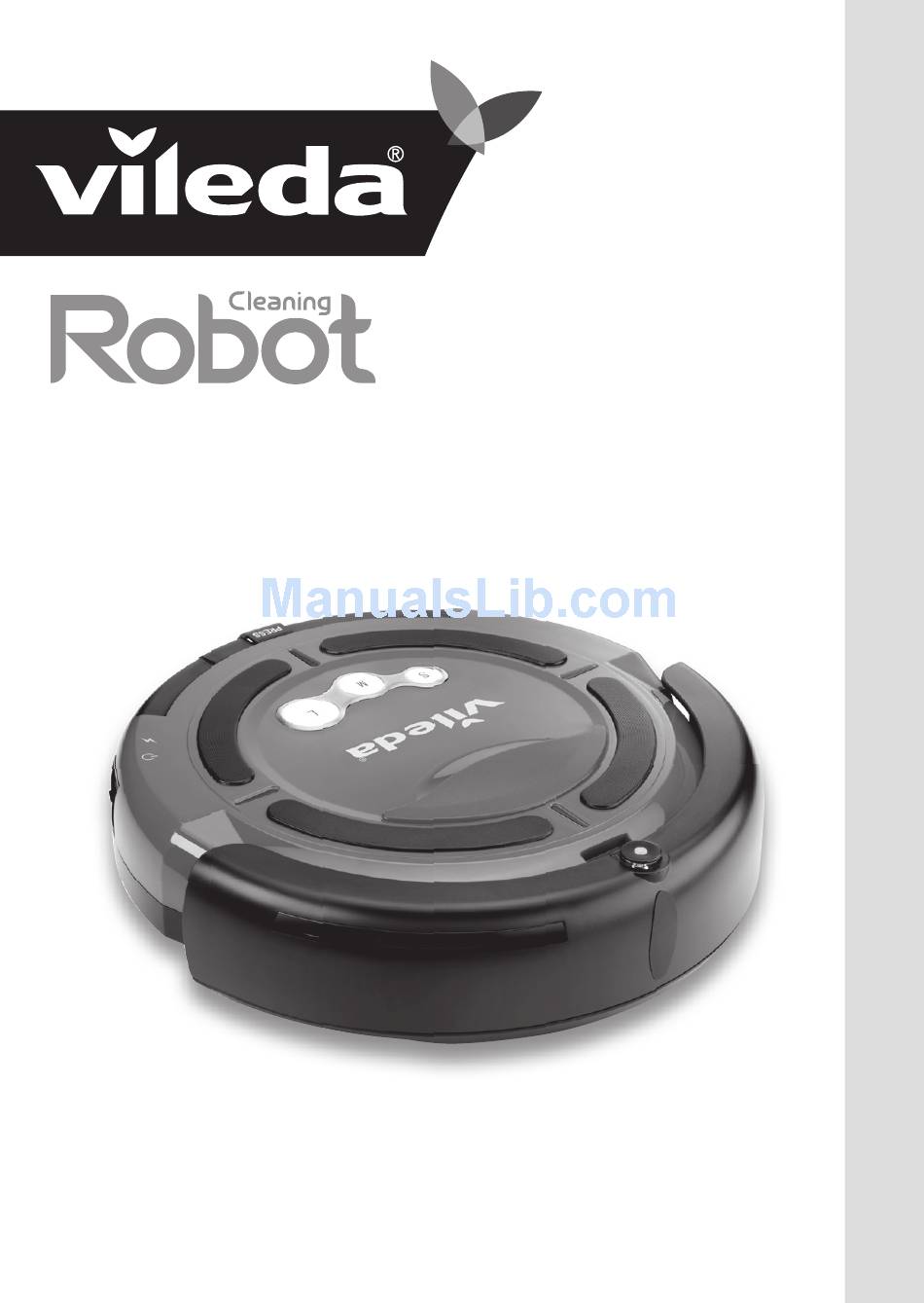

- Page 1 M-488A Cleaning Robot Owner’s Manual...
- Page 2 After many years of studying consumer needs, we have designed this cleaning robot to make your life easier and more enjoyable. At one press of a button, the Vileda Cleaning Robot moves by itself around your home, picking up particles, dust and hair from your floors, even under furniture and other hard to reach places such as corners and edges.
-
Page 3: Table Of Contents
COnTEnTs General Warnings Pg 4 Part Location Pg 7 Anatomy Pg 8 Battery Charging & Recharging Pg 9 Using the Product Pg 10 Cleaning Modes Pg 10 Cleaning system Pg 11 Removing and Emptying the Dust Bin Pg 12 Cleaning Dust Bin & Filter Pg 12 Cleaning Main Brushes Pg 13... -
Page 4: General Warnings
GEnERAL WARnInGs IMPORTANT: READ ALL INSTRUCTIONS BEFORE USE. RETAIN INSTRUCTIONS FOR FUTURE REFERENCE. WARNING: USE ThE UNIT ONLy AS DESCRIBED IN ThIS MANUAL. FAILURE TO FOL− LOw ALL INSTRUCTIONS LISTED BELOw MAy RESULT IN ELECTRIC ShOCk, FIRE AND/OR SERIOUS INjURy. whEN USINg ANy ELECTRICAL AppLIANCE, BASIC SAFETy pRECAU−... - Page 5 and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. • store in a dry place. • store out of reach of children. • Use only with the attachments recommended by the manufacturer. • Do not use without the filter in place.
- Page 6 BATTERy UsE AnD CARE • Using a charger from a different product may cause a risk of fire. • Leaks from battery cells can occur under extreme conditions. If the liq- uid gets on the skin, wash it immediately with soap and water. If the liquid gets into the eyes, flush them immediately with clean water for a minimum of 10 minutes and seek medical attention.
-
Page 7: Part Location
PART LOCATIOn A. 1 Main Unit B. 1 Battery Charger (* Picture may differ from provided box content) C. 1 Rechargeable Battery Pack (installed) D. 1 Filter Mesh (extra) E. 1 side Brush (extra) F. 1 Maintenance Brush... -
Page 8: Anatomy
AnATOMy 1. Infrared sensor 2. Handle 3. Battery Charging Indicator 4. Command Buttons 5. Removable Dust Bin 6. Rechargeable Battery 7. Cliff sensors 8. side Brush 9. Power switch 10. Main Rotating Brush 11. Filter 12. Vacuum Inlet Cover 13. Battery Charger socket... -
Page 9: Battery Charging & Recharging
BATTERy CHARGInG & RECHARGInG WARNING: if the battery is damaged in any way do not attempt to re- charge it. Contact vileda in the Uk on 0845 769 7356. Charge the battery for 8 hours before first use. hours 1 Connect the supplied battery charger into the battery charging socket located beside the power switch. -
Page 10: Using The Product
1 Ensure the battery is charged. 2 Place Vileda Cleaning Robot in the middle of the room. 3 To turn Vileda Cleaning Robot On press the main Power switch. 4 To sTART Vileda Cleaning Robot, press one of the Command Buttons to choose the desired cleaning mode (see section “Cleaning Modes”). -
Page 11: Cleaning System
2 Two rotating brushes pick up dirt, hair and particles into the dustbin. 3 Vacuum power picks up the remaining fine dirt. Vileda Cleaning Robot works on all hard floors such as wood, parquet, tiles, linoleum and short-pile carpets. Do not use vileda Cleaning Robot with long-piled carpets. -
Page 12: Removing And Emptying The Dust Bin
REMOVInG AnD EMPTyInG THE DUsT BIn 1 Turn off the power switch. 2 Press down the dust bin release button and pull out the dust bin as indi- cated in illustrations. 3 Empty the dust bin in the rubbish bin. 4 Reinsert dust bin and push until you hear a clicking sound. -
Page 13: Cleaning Main Brushes
Do not submerge it or spray it with wa- ter. Clean with a dry cloth only. WARNING: to buy new filters, please contact vileda in the Uk on 0845 769 7356. CLEAnInG MAIn BRUsHEs 1 Turn off the power switch and turn the robot upside down on a flat sur- face. -
Page 14: Cleaning Vacuum Inlet Cover
1 Use a cross-head screwdriver to remove side brush cover. 2 Insert new side brush and put back the cover. 3 Tighten the screws. For further help, technical advice, or to order spare or replacement parts please contact Vileda in the UK on 0845 769 7356. -
Page 15: Troubleshooting
Battery does not recharge. • Charger is not • Check charger is plugged correctly. plugged correctly to the outlet and to the robot. For further help, technical advice, or to order spare or replacement parts contact Vileda in the UK on 0845 769 7356. -
Page 16: Environmental And Product Recycling
EnVIROnMEnTAL AnD PRODUCT RECyCLInG The Vileda Cleaning Robot fulfils the EU directive 2002/96/CE, covering electrical and electronic appliances and the management of its disposal. The packaging material is entirely recyclable, and marked with the recy- cling symbol. Follow local regulations for scrapping. Keep the packaging materials (plastic bags, polystyrene parts, etc.) out of the reach of children,... -
Page 17: Battery Removal
BATTERy REMOVAL At the end of the product’s or battery’s life the battery should be removed for disposal and recycling. Follow these instructions to remove and reinstall the battery: 1 Turn off the power switch and turn the ro- bot upside down. 2 Push both flaps inwards and pull up until battery pack comes out. -
Page 18: Guarantee Information
The present guarantee is only valid for the Vileda Cleaning Robot. The Vileda Cleaning Robot guarantee complies with the directive 1999/44/ Vileda guarantees that the Cleaning Robot will be free of defects due to defective materials or manufacture. If defects arise during the period of guarantee, Vileda will guarantee the replacement of the defective part or provide a new unit. - Page 19 3 If it is used with any parts not produced or not recommended by Vileda. 4 If it is used for purposes other than those specified by Vileda. If used outdoors or for commercial purposes. If after following the manual, you are sure that the product is defective, call Vileda on 0845 769 7356.
- Page 20 Vileda Customer support Freudenberg Household Products Vileda House 2 Chichester street Rochdale, Lancashire OL16 2AX www.vileda.co.uk FHP Export GmbH 69448 Weinheim 04048-72-26-204...
