B-Tech Mountlogic BT10 Installation Manual page 9

FLOOR BASE
O 18mm
(0.7")
O 23mm
(0.9")
THESE INSTRUCTIONS ARE INTENDED AS A GUIDE ONLY AND B-TECH ACCEPTS NO
LIABILITY FOR THE ACCURACY OF THE INFORMATION CONTAINED IN THIS DOCUMENT.

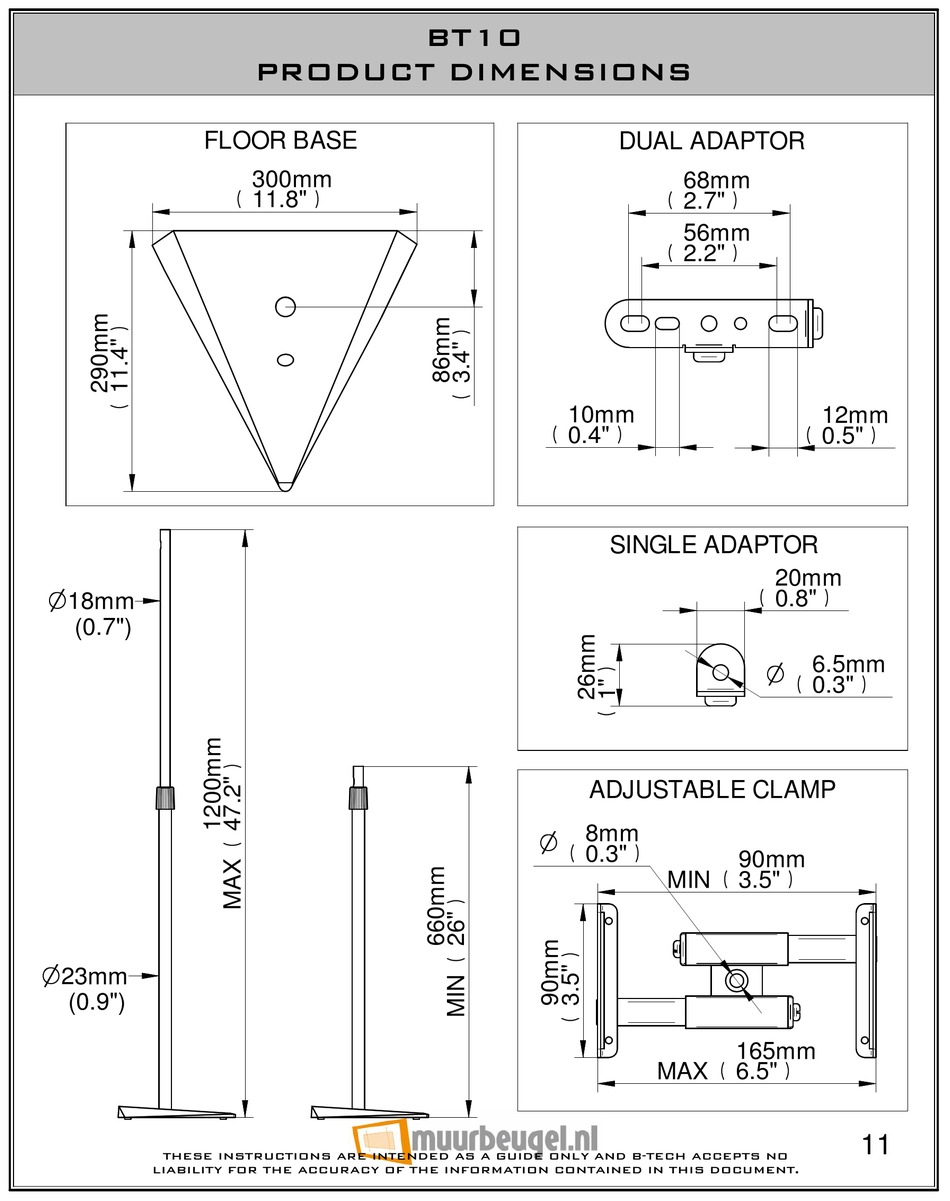

BT10
PRODUCT DIMENSIONS
300mm
11.8"
DUAL ADAPTOR
68mm
2.7"
56mm
2.2"
10mm
0.4"
SINGLE ADAPTOR
ADJUSTABLE CLAMP
8mm
O
0.3"
MIN
MAX
12mm
0.5"
20mm
0.8"
6.5mm
O
0.3"
90mm
3.5"
165mm
6.5"
11
