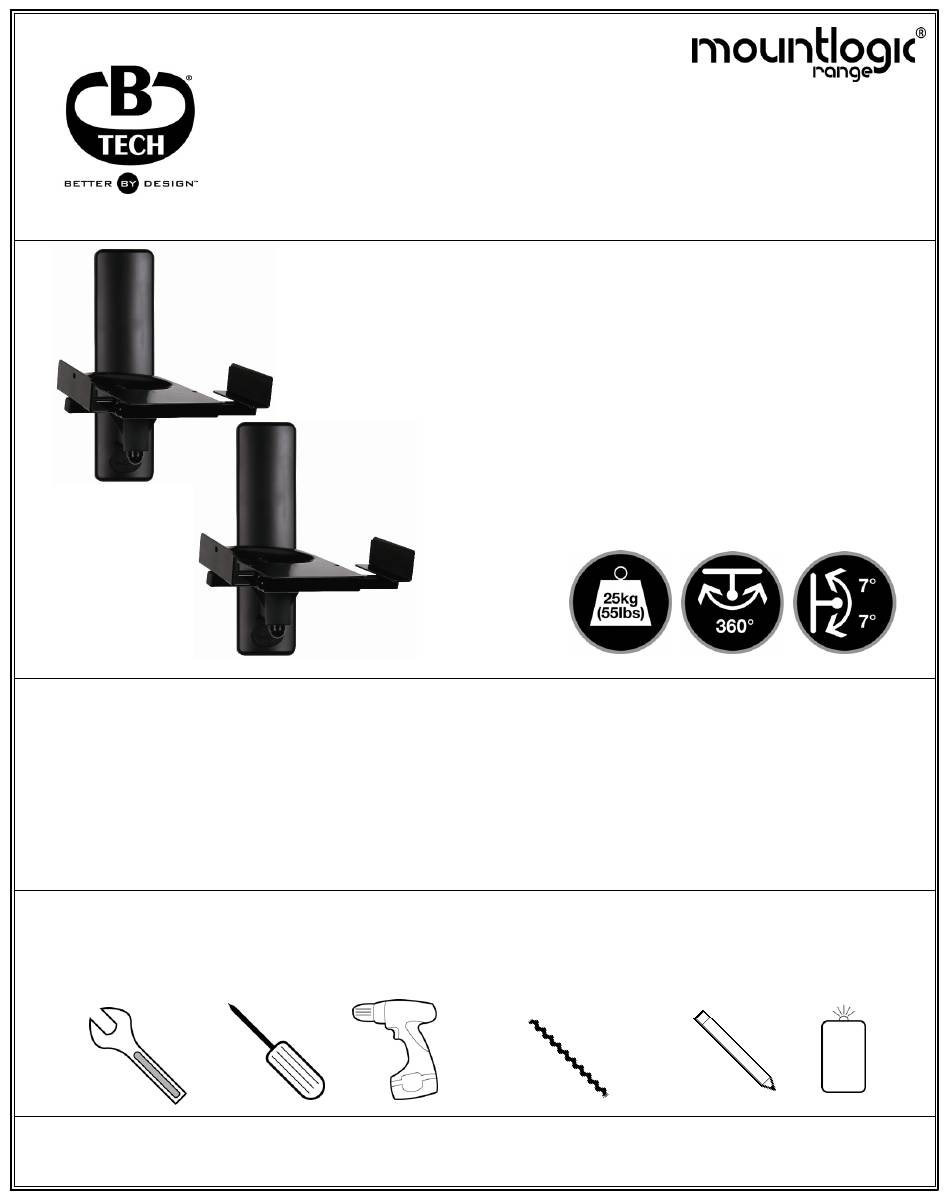

INSTALLATION TOOLS REQUIRED
13mm (1/2") spanner
or socket
B-TECH AUDIO VIDEO MOUNTS
BT77
ULTRAGRIP PRO™
LOUDSPEAKER WALL MOUNTS
INSTALLATION GUIDE & PARTS LIST
This Pack Contains 2 Mounts
PLEASE KEEP THIS FOR FUTURE REFERENCE
CONTENTS
Drill
Crosshead
screwdriver
www.btechavmounts.com
FEATURES
● Designed for speakers weighing up to 25kg (55lbs)
● Adjustable clamp size: 135mm (5.3") - 280mm (11")
● Features +/-7° tilt and 360° swivel
● Suitable for concrete, brick or wooden stud walls
● No visible wall fixings screws
● Simple installation with all mounting hardware included
● This pack contains 2 mounts
8mm (5/16") masonry bit
or 3mm (1/8") wood bit
Pencil
Stud finder
(optional)
Advertisement
Related Manuals for B-Tech mountlogic ULTRAGRIP PRO BT77
Summary of Contents for B-Tech mountlogic ULTRAGRIP PRO BT77
-
Page 1: Table Of Contents
Installation Safety Notes........................2 Parts List.............................4 Installation Instructions........................6 Product Dimensions..........................11 B-Tech Contact Details........................12 INSTALLATION TOOLS REQUIRED Pencil 13mm (1/2") spanner Stud finder Drill Crosshead 8mm (5/16") masonry bit or socket (optional) or 3mm (1/8") wood bit screwdriver B-TECH AUDIO VIDEO MOUNTS www.btechavmounts.com... -
Page 2: Installation Safety Notes
Do not attempt to install this product until all instructions and warnings have been read and properly understood. Please keep these instructions for future reference. B-Tech International Limited, its distributors and dealers are not liable or responsible for damage or injury caused by improper installation, improper use or failure to observe these safety instructions. In such cases, all guarantees will expire. - Page 3 Niniejszy produkt musi być zamontowany na odpowiedniej powierzchni, a podczas użytkowania nie wolno przekraczać podanego maksymalnego obciążenia. A B-Tech International Ltd. recomenda que a instalação deste produto seja efectuada por um instalador de AV profissional ou outra pessoa devidamente habilitada. A B-Tech International Ltd. e os seus distribuidores e concessionários não são responsáveis por danos ou lesões causados por uma instalação incorrecta.
-
Page 4: Parts List
BT77 PARTS LIST This pack contains 2 Platform Assembly speaker mounts Suitable for loads up to 25kg (55lbs) - Page 5 PART NAME WALL BRACKET WALL BRACKET COVER TILTING END CAP SPEAKER PLATFORM ADJUSTMENT CLAMP “ULTRAGRIP PRO” FOAM PAD PLASTIC END PLUG M6 x 100mm SCREW M8 x 65mm SCREW M8 STEEL WASHER M8 NYLOC NUT NUT COVER (FOR PART 11) M4 x 12mm WOOD SCREW FIXING KIT M4.8 x 32mm WOOD SCREW...
-
Page 6: Installation Instructions
INSTALLATION INSTRUCTIONS Attach the wall bracket to a concrete or stud wall. i. Concrete / brick wall. 8mm (5/16") masonry bit ii. Wood / stud wall. 3mm (1/8") wood bit... - Page 7 Slide cover over wall bracket. Attach "Ultragrip Pro" foam pads to adjustment clamps.
- Page 8 Attach platform to wall bracket.
- Page 9 Place speaker on the platform, adjust clamps to hold speaker in place. SPEAKER OPTIONAL Secure speaker using parts 13.
- Page 10 To adjust the tilt, loosen part 11, move speaker to desired angle, then retighten. 360° ° +/- 7 ° +/- 7 360°...
-
Page 11: Product Dimensions
1.2" 18mm 6.5mm 80mm 0.7" 0.3" 3.1" 8.5mm 0.3" 104mm 4.1" 110mm 24mm 4.3" 0.9" 60mm 2.4" THESE INSTRUCTIONS ARE INTENDED AS A GUIDE ONLY AND B-TECH ACCEPTS NO LIABILITY FOR THE ACCURACY OF THE INFORMATION CONTAINED IN THIS DOCUMENT. -
