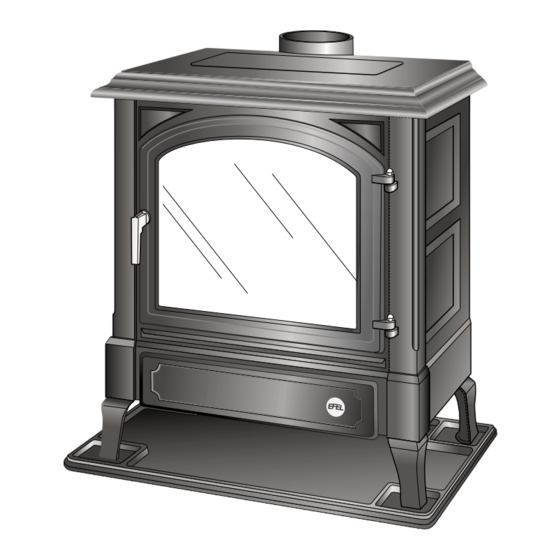

Installation Instructions for
Harmony 5
Wood and Coal Stove
1
Part No.
Serial Number
Instructions Part number IN10111 Edition C
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Euroheat Harmony 5
Summary of Contents for Euroheat Harmony 5
- Page 1 Part No. Fax 01885 491105 Anytime. Sales 01885 491111 Euroheat Distributors (H.B.S.) Ltd., Serial Number Unit 2, Court Farm Business Park, Bishops Frome, Worcestershire, WR6 5AY. 01885 490474 © Euroheat Distributors (H.B.S) Ltd. 2000 Instructions Part number IN10111 Edition C...
- Page 2 CP403 and BS5449, relating to the installation of solid fuel appliances. 2) The stove must be placed at least 40cm away from any combustible materials. If necessary, any adjoining walls should be protected from the effects of heat. © Euroheat Distributors (H.B.S) Ltd. 2000 Instructions Part number IN10111 Edition C...
- Page 3 Flue Outlet Options Optional Front Facing Thermostat Indicator © Euroheat Distributors (H.B.S) Ltd. 2000 Instructions Part number IN10111 Edition C...
-
Page 4: Chimney Draught
Bends, turbulence, foreign bodies, dirt, nests, cold walls, etc.- see the cases shown in the appended diagrams. A stable chimney draught within the required parameters is always required. © Euroheat Distributors (H.B.S) Ltd. 2000 Instructions Part number IN10111 Edition C... - Page 5 The chimney must be swept or anti-down draught devices must not have a smaller before lining or connection. connecting section than the chimney. Poor Good © Euroheat Distributors (H.B.S) Ltd. 2000 Instructions Part number IN10111 Edition C...
- Page 6 In many cases the solution is to install a flexible liner. © Euroheat Distributors (H.B.S) Ltd. 2000 Instructions Part number IN10111 Edition C...
- Page 7 Good Poor Void Soot, debris can block flue Cleaning access options Rear flue connection internal or external Top flue connections internal only © Euroheat Distributors (H.B.S) Ltd. 2000 Instructions Part number IN10111 Edition C...
- Page 8 J. Large empty spaces should be avoided. Flue K. Access to the chimney system for inspection or connections must be carefully planned to prevent cleaning should be provided problems with voids. Poor Good © Euroheat Distributors (H.B.S) Ltd. 2000 Instructions Part number IN10111 Edition C...
- Page 9 The stabilizer should be fitted no closer than 700mm to the flue outlet of the appliance. The flue stabilizer should be fitted in the same room as the stove installation. © Euroheat Distributors (H.B.S) Ltd. 2000 Instructions Part number IN10111 Edition C...
-
Page 10: Air Supply
An air entry opening or openings with a total free area of at least 550mm 2 per kW/hr of rated output above 5kWhr. Where a flue draught stabiliser is used the total free area should be increased by 300mm for each kW/hr of rated output. © Euroheat Distributors (H.B.S) Ltd. 2000 Instructions Part number IN10111 Edition C... -
Page 11: Minimum Installation Clearances
12" 300mm 16" 400mm 12" 300mm F = Decorative Hearth Plate 12" 300mm Supplied as standard with Harmony 5 The measurements are for advice only. In all 16" 400mm 2" 50mm installations surrounding inflammable materials must not exceed 80oC. The stove must always stand perfectly level and have sufficient space allowed for 16"... - Page 12 Remedy: a) Ensure there is enough free air to the stove. b) The flue is of a suitable size and is not obstructed. c) Consult installation instructions. © Euroheat Distributors (H.B.S) Ltd. 2000 Instructions Part number IN10111 Edition C...
- Page 13 0.04 Euroheat can supply flue measurement gauges 0.02 order number MS026. Note this is not a water gauge used to measure gas pressure. firing rate firing rate © Euroheat Distributors (H.B.S) Ltd. 2000 Instructions Part number IN10111 Edition C...
-
Page 14: Warranty
The customer is to be advised about the operation and lighting procedures, use of the tools and general maintenance of the stove. 4. Warranty The warranty registration form should be completed and the user advised to return it fully completed to Euroheat for registration. 5. Instructions All instructions are to be left with the user.
