Euroheat Distributors
(H.B.S.) Ltd.,
Unit 2, Court Farm
Business Park,
Bishops Frome,
Worcestershire,
WR6 5AY.
© EUROHEAT DISTRIBUTORS (H.B.S) LTD. April 2007
Euroheat Distributors (H.B.S.) Ltd.,
Unit 2, Court Farm Business Park,
Bishops Frome,
Worcestershire,
WR6 5AY.

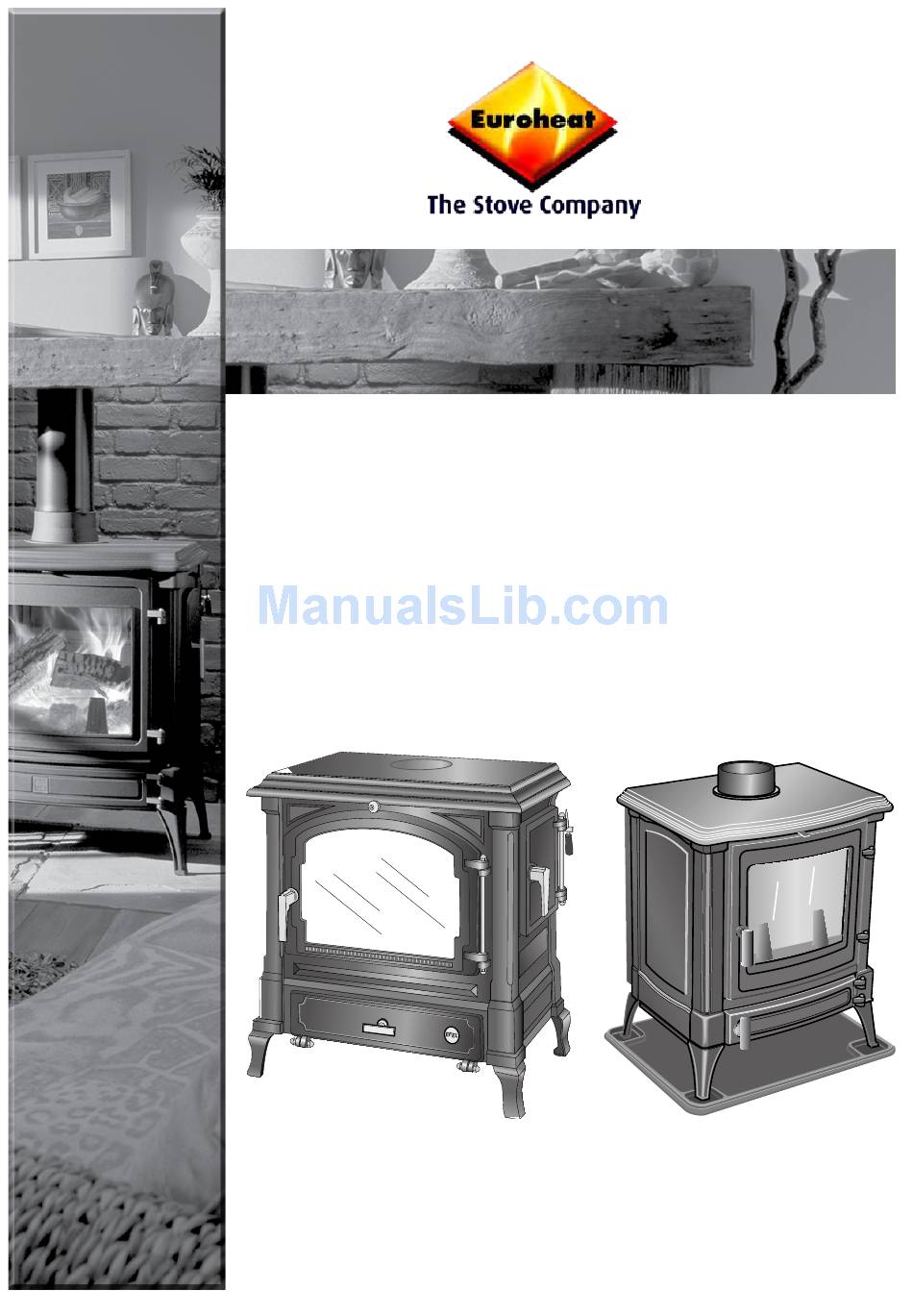

Servicing Instructions for
Harmony 1 & 3
Stanford 80 & 140
Multifuel & Wood Stoves
1
E & OE
Instructions Part number IN1188 Edition A
Advertisement

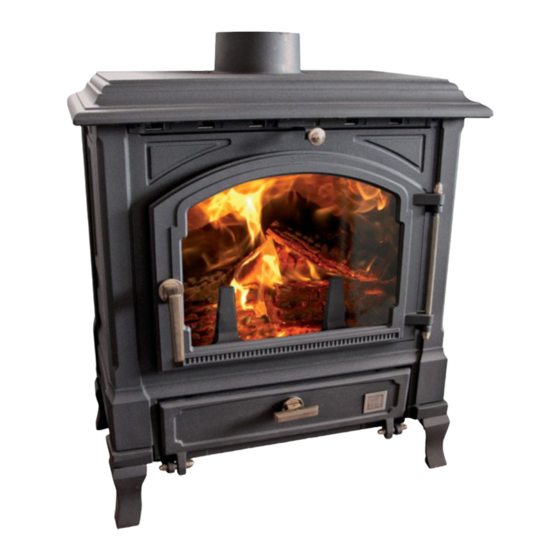

Related Manuals for Euroheat Harmony 1
Summary of Contents for Euroheat Harmony 1
- Page 1 Harmony 1 & 3 Stanford 80 & 140 Multifuel & Wood Stoves Euroheat Distributors (H.B.S.) Ltd., Unit 2, Court Farm Business Park, Bishops Frome, Worcestershire, WR6 5AY. © EUROHEAT DISTRIBUTORS (H.B.S) LTD. April 2007 E & OE Instructions Part number IN1188 Edition A...
- Page 2 Other documents obtainable on request from Euroheat IN1086 Technical Guide. The Multifuel Stove. IN1087 Technical Guide. The Flue. These guides are available by post by from Euroheat or our web site www.euroheat.co.uk Spares may be purchased from: Your local Euroheat supplier The Euroheat web site: www.euroheat.co.uk...
-
Page 3: Maintenance Schedule
C) Check the operation of the riddle mechanism and direct draught slide assembly. D) Light a small fire and ensure all the smoke is being vented up the chimney. © EUROHEAT DISTRIBUTORS (H.B.S) LTD. April 2007 E & OE Instructions Part number IN1188 Edition A... -
Page 4: Cleaning The Stove
Order numbers for spray paint Surface to be sprayed Part Number Size of can Cast iron body 40785 200ml Rear heat shield 60429 400ml © EUROHEAT DISTRIBUTORS (H.B.S) LTD. April 2007 E & OE Instructions Part number IN1188 Edition A... - Page 5 Lighting a small piece of paper within the stove will determine the flue’s ability to remove any products of combustion. National Chimney Sweeps Association Telephone: 01785 811732 The Solid Fuel Association Telephone: 0845 6014406 © EUROHEAT DISTRIBUTORS (H.B.S) LTD. April 2007 E & OE Instructions Part number IN1188 Edition A...
- Page 6 12429 Brass washer upper door 15760 15760 Brass hinge tube side door 28286 29353 Upper hinge pin 12426 12426 Lower hinge pin 12425 12425 © EUROHEAT DISTRIBUTORS (H.B.S) LTD. April 2007 E & OE Instructions Part number IN1188 Edition A...
- Page 7 Using a dot punch on the side of the hinge pin in two places may help stop the hinge pins from riding up. © EUROHEAT DISTRIBUTORS (H.B.S) LTD. April 2007 E & OE...
- Page 8 Glass and Glass Seal Set Replacement When replacing the glass on any of the stove models supplied by Euroheat the glass seal should also be replaced. Failure to do so could cause damage to the glass or allow air into the stove in an uncontrolled manor which may be detrimental to the performance of the stove.
- Page 9 Order numbers for Door Rope Seal Kits Stove Part No. Harmony 1 RO134 Harmony 3 RO137 Stanford 80 RO134 Stanford 140 RO137 © EUROHEAT DISTRIBUTORS (H.B.S) LTD. April 2007 E & OE Instructions Part number IN1188 Edition A...
-
Page 10: Door Handle Adjustment
The flat latch blades can be bent using an adjustable spanner. Bent towards the handle to tighten and away from the handle to loosen. To loosen To loosen To tighten To tighten © EUROHEAT DISTRIBUTORS (H.B.S) LTD. April 2007 E & OE Instructions Part number IN1188 Edition A... -
Page 11: Door Handle Replacement
WD40 and leave to soak. The shaft can then be gently knocked through the frame of the door, taking care as the door frame is cast iron and can crack. Examples of Handle Kits Harmony 3 Firebox Door Handle Harmony 1 & 3 Lower Door Handle Brass handle Locking washer assembly... - Page 12 Order numbers for Rear Protection Plates Model Rear protection plate Harmony 1 20219 Retaining bracket Harmony 3 19112 2 required per stove Stanford 80 20219 Stanford 140 19112 © EUROHEAT DISTRIBUTORS (H.B.S) LTD. April 2007 E & OE Instructions Part number IN1188 Edition A...
- Page 13 19136 Grate and Grate Frame Removal and Replacement There have been a number of grate systems used in the Harmony and Stanford range of multifuel stoves. Harmony 1 and Stanford 80 Grate Sytems Log Guard Mark 1 Grate System Grate...
- Page 14 38272 Logguard 19113 Grate removal procedure: Harmony 1 Mk1 and Mk3 grate system Stanford 80 with Mk3 grate system Harmony 3 Mk1 and Mk2 grate system Step 1. Removing Riddeling Links. Remove or loosen the rear heat shield, held in place by four screws.
- Page 15 Grate removal procedure Harmony 1 and Stanford 80 with Mk 2 grate system Step 1. Remove the two top baffles. Page 12. Step 2. Remove the two rear protection plates. Page 12. Step 3. Remove the two side protection plattes. Page 12.
- Page 16 Removing Mk 2 Grate from Harmony 1 with a 3kW boiler Air wash baffle Follow the procedure as discussed earlier removing the top baffles. The rear protection plates have been replaced by the boiler so to remove the side protection plates the air wash baffle above the door must be removed. Undo the two nuts (10mm) and withdraw the baffle through the front door.
- Page 17 Housing retaining screws FF5005 x 2 FF5005 x 2 Direct draught actuating rod 20167 19140 Split pins MS2110 MS2110 Direct draught handle 2321 2321 © EUROHEAT DISTRIBUTORS (H.B.S) LTD. April 2007 E & OE Instructions Part number IN1188 Edition A...
- Page 18 0-1 mm at normal room temperature. Note: the thermostat disc is designed to close at an angle. © EUROHEAT DISTRIBUTORS (H.B.S) LTD. April 2007 E & OE Instructions Part number IN1188 Edition A...
- Page 19 Unit 2, Court Farm Business Park, Bishops Frome, Worcestershire, WR6 5AY United Kingdom Telephone Technical Support 01885 491117 Facsimile 01885 491101 Reception 01885 490100 Email tech@euroheat.co.uk Latest Technical Information www.euroheat.co.uk © EUROHEAT DISTRIBUTORS (H.B.S) LTD. April 2007 E & OE Instructions Part number IN1188 Edition A...
- Page 20 For the latest editions of all Euroheat documentation visit our web site www.euroheat.co.uk. We would request that you inform Euroheat of information which you feel is not provided in this document which would assist other users in the future.
