Servicing Instructions

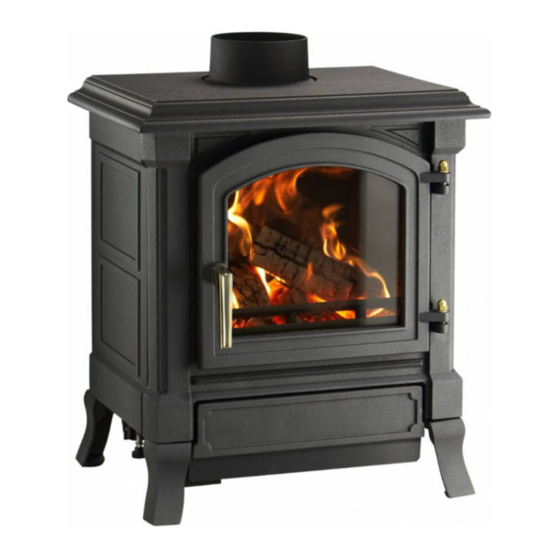

Harmony 13,23,33,43
Stanford 13,23,33,43
Stanford SP23,SP33
Multifuel & Wood Stoves
1
E & OE
Instructions Part number IN1195 Edition A
Advertisement
Table of Contents
Related Manuals for Euroheat Harmony 13
Summary of Contents for Euroheat Harmony 13
- Page 1 Harmony 13,23,33,43 Stanford 13,23,33,43 Stanford SP23,SP33 Multifuel & Wood Stoves Euroheat Distributors (H.B.S.) Ltd., Unit 2, Court Farm Business Park, Bishops Frome, Worcestershire, WR6 5AY. © EUROHEAT DISTRIBUTORS (H.B.S) LTD. March 2008 E & OE Instructions Part number IN1195 Edition A...
- Page 2 Other documents obtainable on request from Euroheat IN1086 Technical Guide. The Multifuel Stove. IN1087 Technical Guide. The Flue. These guides are available by post by from Euroheat or our web site www.euroheat.co.uk Spares may be purchased from: Your Local Euroheat Supplier The Euroheat Web Site: www.euroheat.co.uk...
- Page 3 If there is any sign of the flue or stove not working as it did previously or smoke is being emmitted into the room then contact your NACS chimney sweep. © EUROHEAT DISTRIBUTORS (H.B.S) LTD. March 2008 E & OE...
- Page 4 Order Numbers for Spray Paint Surface to be Sprayed Part Number Size of Can Cast iron body 40785 200ml Rear heat shield 60429 400ml © EUROHEAT DISTRIBUTORS (H.B.S) LTD. March 2008 E & OE Instructions Part number IN1195 Edition A...
- Page 5 Lighting a small piece of paper within the stove will determine the flue’s ability to remove any products of combustion. National Chimney Sweeps Association Telephone: 01785 811732 The Solid Fuel Association Telephone: 0845 6014406 © EUROHEAT DISTRIBUTORS (H.B.S) LTD. March 2008 E & OE Instructions Part number IN1195 Edition A...
- Page 6 Model Hinge Pin Washer Domed Nut 19915 17496 12430 18906 17496 12430 18906 17496 12430 18906 17496 12430 31848 31848 31848 SP23/33 31848 © EUROHEAT DISTRIBUTORS (H.B.S) LTD. March 2008 E & OE Instructions Part number IN1195 Edition A...
- Page 7 Glass and Glass Seal Set Replacement When replacing the glass on any of the stove models supplied by Euroheat the glass seal should also be replaced. Failure to do so could cause damage to the glass or allow air into the stove in an uncontrolled manner which may be detrimental to the performance of the stove.
- Page 8 Note the position of the joint at the top of the door. Latch adjustment screw which can be adjusted to maintain an air tight seal as the rope seal beds in. © EUROHEAT DISTRIBUTORS (H.B.S) LTD. March 2008 E & OE Instructions Part number IN1195 Edition A...
- Page 9 Close the door and adjust the handle latch accordingly. Rope seal groove Rope joint top centre of door Ceramic rope seal © EUROHEAT DISTRIBUTORS (H.B.S) LTD. March 2008 E & OE Instructions Part number IN1195 Edition A...
- Page 10 © EUROHEAT DISTRIBUTORS (H.B.S) LTD. March 2008 E & OE Instructions Part number IN1195 Edition A...
- Page 11 Bolt Harmony 23 MS91073 M6 x 16mm Harmony 33 MS91074 Handle Shaft Harmony 43 MS91074 5mm thick Spacer Sprung Washer OD 16mm ID 10mm © EUROHEAT DISTRIBUTORS (H.B.S) LTD. March 2008 E & OE Instructions Part number IN1195 Edition A...
- Page 12 Firebox Components Harmony 13 and Stanford 13 Firebox Componets Upper Rear Protection Plate Vermiculite Top Baffle Right Protection Plate Rear Protection Plate Left Protection Plate Grate Right Grate Side Cheek Log Gaurd Left Grate Side Cheek Grate Frame Harmony 23/33/43, Stanford 23/33 and SP23/33 Firebox Componets...
- Page 13 43519 MS9213 MS9203 Harmony 13 & Stanford 13 Firebox Parts Removal Removal of the Top Baffle H13 & S13 The vermiculite top baffle will need removing at regular intervals, dependant upon the stoves use, to remove any soot and debris which may have accumulated on top of it.
- Page 14 When refitting the cast iron bottom protection plates ensure that the lugs are upwards. Cast Iron Grate Side Cheek with the Lugs Uppermost © EUROHEAT DISTRIBUTORS (H.B.S) LTD. March 2008 E & OE Instructions Part number IN1195 Edition A...
- Page 15 It can then be angled within the fire box to withdraw it through the door. To refit the replacement reverse the procedure. © EUROHEAT DISTRIBUTORS (H.B.S) LTD. March 2008 E & OE Instructions Part number IN1195 Edition A...
- Page 16 It can then be angled within the fire box to withdraw it through the door. To refit the replacement reverse the procedure. © EUROHEAT DISTRIBUTORS (H.B.S) LTD. March 2008 E & OE Instructions Part number IN1195 Edition A...
- Page 17 Top Flue Winged Baffle Plate Removal Harmony 13/23/33, Stanford 13/23/33 & SP23/33 The top flue winged baffle plate will need removing at regular intervals, dependant upon the stoves use, to remove any soot and debris which may have accumulated on top of it. If this is not done the flue way will become choked and the stove will not operate efficiently.
- Page 18 Harmony 13 & Stanford 13 Mk2 Top Flue Baffle Removal of the Flue Winged Baffle Plate The top flue winged baffle plate will need removing at regular intervals, dependant upon the stoves use, to remove any soot and debris which may have accumulated on top of it. If this is not done the flue way will become choked and the stove will not operate efficiently.
- Page 19 These can then be ordered through your nearest retail outlet or online. 97 98 www.euroheat.co.uk © EUROHEAT DISTRIBUTORS (H.B.S) LTD. March 2008 E & OE Instructions Part number IN1195 Edition A...
- Page 20 For the latest editions of all Euroheat documentation visit our web site www.euroheat.co.uk. We would request that you inform Euroheat of information which you feel is not provided in this document which would assist other users in the future.
