Summary of Contents for annke I41CL

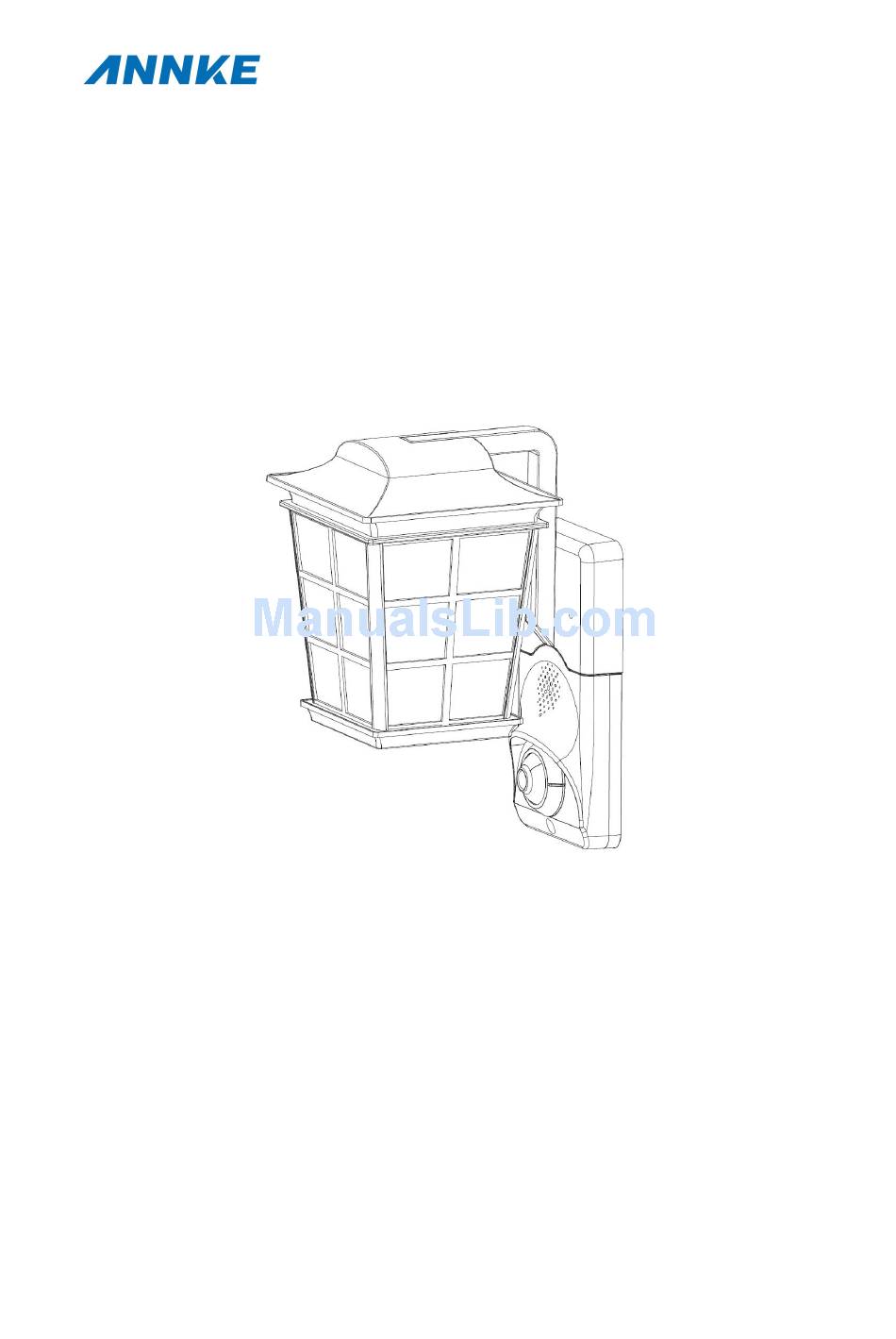

  • Page 1 Intelligent network camera User Manual...
  • Page 2 Safety Regulation FCC Requirement NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
  • Page 3: Safety Instruction

    EU Request Statement The product and attached accessory should meet the safety regulations of CE and have “CE” sign. In addition, it should comply with the listed applicable Uniform European Standard in EMC Directive 2014/30/eu, which is 2014/35/eu, RoHS Directive 2011/65/eu. 2012/19/eu (WEEE Directive): In European Union, the product with this symbol cannot be handled as unclassified municipal waste.
  • Page 4: Accessories Instructions

    Accessories Instructions Description Quantity Smart Safety Light Bulb Cross Plate Hook Adjustable Holder Cup Head Screw Decorative fixture nut Wiring Cap...
  • Page 5: Installation Instruction

    Installation Instruction 2.Install cross plate to junction box. 1.Cut off the power 3.Adjust cross plate to make it horizontal, 4.Use adjustable holder, adjust the length fasten the cap head screws. of cap head screws on cross plate.
  • Page 6 5. Use hook to pull out the wire in 6.Connect the corresponding wire and bare copper wire the junction box. with wiring cap, make sure to screws. 7.Put the light through cap head screws on cross 8.Install light bulb. plate, adjust its position, fasten the decorative fixture nuts.
  • Page 7: App Installation

    APP Installation Step 1: Download and install 'Annke Light' APP from APP Store or Google Play. Step 2: Click “Annke Light” open. Step 3: Sign up with e-mail address. Step 4: Log in with e-mail address and password. ② ③...
  • Page 8 ⑹ ⑷ ⑸ Use needle push the “SET” button for Configure WIFI, input the password. Scan QR code. one second to reset. ⑻ ⑺ ⑼ When LED light turns green, it means Click “NEXT”, APP will search device After connection, the monitor connection is completed.
  • Page 9 ⑴ ⑵ ⑶ Configure WIFI, input the password. Click “add camera” Click “add by WIFI” Enter device name and click scan QR code. ⑹ ⑷ ⑸ Use needle push the “SET” button Scan QR code. Configure WIFI, input the password. for one second to reset.
  • Page 10 ⑼ ⑻ ⑺ Put QR code in front of the camera When LED light turns green, it After connection, the monitor within 5-10 cm. If the scan was means connection is completed. view is live. completed, you can hear “beep” sound. Network Table Connection: Step 1: Click “add camera”...
  • Page 11 ⑸ ⑹ ⑷ After scanning, APP will After connection, the monitor Scan QR code. search device automatically view is live. until connection, Wireless Connection (add share with friends) Step 1: Click “add camera” Step 2: Enter device name and click scan QR code. Step3: Click “add share with friends”...
  • Page 12: Software Reset

    ⑸ ⑷ ⑹ Scan QR code. After scanning, APP will search After connection, the monitor device automatically until view is live. Software Reset Step1: Log into the APP, click connected device, enter into device preview image, tap to enter setting screen Step2: Tap Reset (The bulb will turn on, and you will hear “Ding Ding Ding”...
  • Page 13: Reset Button

    Periodic cleaning may be required. Use a damp cloth only. Do not use harsh cleaners or aerosol cleaners. Support Need Help? Visit our official website to get more support. Go to www.annke.com and search your device model number. Click product in the search list to download what you need.
