Summary of Contents for annke I61BK

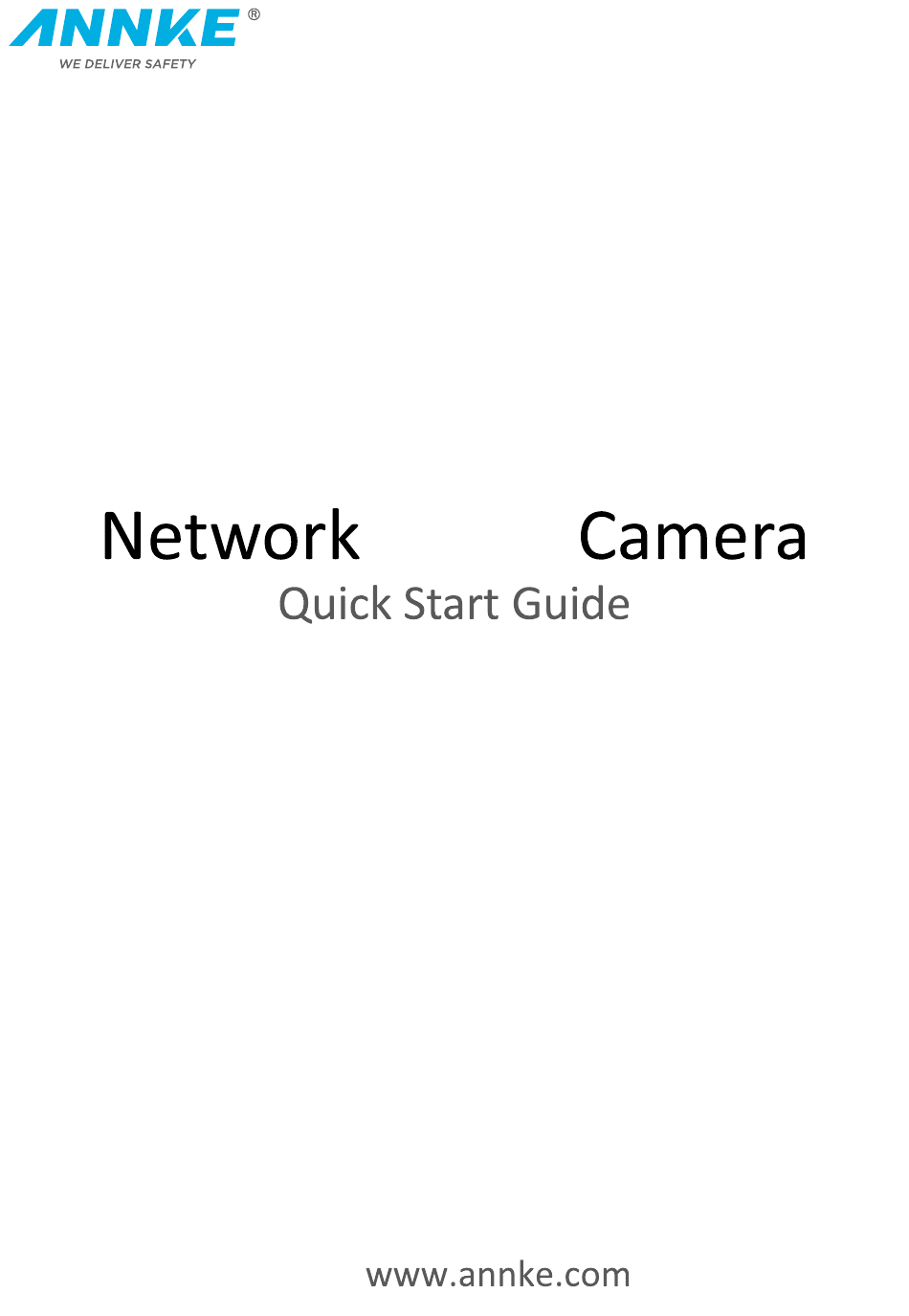

- Page 1 Turret...
- Page 2 N etw ork Turret C am era ·Quick Start Guide A b ou t th i s M an ual The Manual includes instruc ons for using and managing the product. Pictures, charts, images and all other informa on hereina er are for descrip on and explana on only. The informa on contained in the Manual is subject to change, without no ce, due to rmware updates or other reasons.
- Page 3 C am era ·Quick Start Guide N etw ork Turret Please take a en on that changes or modi ca on not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. FC C com p l i an ce: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
- Page 4 C am era ·Quick Start Guide N etw ork Turret EU C on form i ty Statem ent This product and - if applicable - the supplied accessories too are marked with "CE" and comply therefore with the applicable harmonized European standards listed under the EMC Direc ve 2014/30/EU, the RoHS Direc ve 2011/65/EU.
- Page 5 N etw ork Turret C am era ·Quick Start Guide These instruc ons are intended to ensure that user can use the product correctly to avoid danger or property loss. The precau on measure is divided into “Warnings” and “Cau ons” W arn i n g s: Serious injury or death may occur if any of the warnings are neglected.
- Page 6 N etw ork Turret C am era ·Quick Start Guide ● Do not connect several devices to one power adapter as adapter overload may cause over-hea ng or a re hazard. ● Please make sure that the plug is rmly connected to the power socket.
- Page 7 N etw ork Turret C am era ·Quick Start Guide camera model has an “H” in its su x), dusty or damp loca ons, and do not expose it to high electromagne c radia on. ● To avoid heat accumula on, good ven la on is required for opera ng environment.
-
Page 8: Table Of Contents
N etw ork Turret C am era ·Quick Start Guide Table of C ontents 1 A p p earan ce D escri p ti o n ..............8 ..................2 I n stal l ati on 3 Setti n g th e N etw ork C am era o ver th e LA N ......19 Wiring ................ -
Page 9: P P Earan Ce D Escri P Ti O N
N etw ork Turret C am era ·Quick Start Guide 1 A p p earan ce D escr i p ti on This camera series of turret camera has four appearance types. Typ e I Figure 1-1 Overview of Type I Turret Camera Table 1-1 Descrip on Descrip on... - Page 10 N etw ork TurretC am era ·Quick Start Guide Typ e II Figure 1-2 Type I Turret Camera Table 1-2 Descrip on Descrip on Descrip on Trim Ring Power Cord 10M/100M self-adap ve Enclosure Ethernet interface (PoE) RST (Reset) Bu on Moun ng Base Memory Card Slot Camera...
-
Page 11: N Stal L Ati On
N etw ork TurretC am era ·Quick Start Guide 2 I n stal l ati on B efore you start: ● Make sure the device in the package is in good condi on and all the assembly parts are included. ●... - Page 12 Network Turret Camera·Quick Start Guide And you can take steps of ceiling moun ng as a reference for wall moun ng. Steps: 1. Paste the drill template (supplied) to the desired moun ng posi on on the ceiling. 2. Drill the screw holes and the cable hole in the ceiling according to the drill template.
- Page 13 Network Turret Camera·Quick Start Guide Mark Notch Figure 2-2 Disassemble the Camera 4. Fix the moun ng base to the ceiling with supplied screws. Notes: In the supplied screw package, both self-tapping screws, and expansion bolts are contained. If the ceiling is cement, expansion bolts are required to x the camera.
- Page 14 Network Turret Camera·Quick Start Guide Figure 2-4 Install the Camera Body 7. Connect the power cord and network cable. 8. Power on the camera, and set the network con gura on (for details, refer to 3 Se ng the Network Camera over the LAN and 4 Accessing via Web Browser) to check whether the image is go en from the op um angle.
- Page 15 Network Turret Camera·Quick Start Guide 2). Move the camera body up and down to adjust the lt angle [0° to 75°]. 3). Rotate the camera body to adjust the rota on angle [0° to 360°].
- Page 16 Network Turret Camera·Quick Start Guide 2.1.2 Typ e II Step s: Disassemble the camera. Rotate the trim ring an clockwise to take it o from the camera. Loosen the xing screw. Take the moun ng base o from the camera and the enclosure. Separate the camera and the enclosure.
- Page 17 N etw ork Turret C am era ·Quick Start Guide Screw the memory card slot cover back. Paste the drill template to desired moun ng place. Drill the screw holes (for expansion screws) and the cable hole on the ceiling according to the drill template. N ote: If the camera is installed to a wooden wall, use self-tapping screws instead of expansion screws.
- Page 18 N etw ork TurretC am era ·Quick Start Guide Drill Template Mounting Base Figure 2-9 Fix Moun ng Base Connect the corresponding power/network cable. Refer to the sec on 2.3 for the water-proof accessory installa on if the camera is installed in the outdoor. Install the camera along with the enclosure to the moun ng base.
- Page 19 N etw ork TurretC am era ·Quick Start Guide Pan: 0° to 360° Rotate: Tilt: 0° to 360° 0° to 75° Figure 2-11 Adjust Surveillance Angle A ach the trim ring to the camera and rotate the trim ring clockwise to get it secured. Install Trim Ring Figure 2-12...
-
Page 20: Setti N G Th E N Etw Ork C Am Era Over Th E La N
N etw ork TurretC am era ·Quick Start Guide 3 Setti n g th e N etw ork C am era over th e LA N N ote: You shall acknowledge that the use of the product with Internet access might be under network security risks. For avoidance of any network a acks and informa on leakage, please strengthen your own protec on. -
Page 21: Ac Va Ng The Camera
N etw ork TurretC am era ·Quick Start Guide 3. 2 A cti vati n g th e C am era You are required to ac vate the camera rst by se ng a strong password for it before you can use the camera. Ac va on via Web Browser, Ac va on via SADP, and Ac va on via Client So ware are all supported. -
Page 22: Ac Va On Via Sadp So Ware
N etw ork TurretC am era ·Quick Start Guide Figure 3-3 Ac va on Interface(Web) 3. Create a password and input the password into the password eld. STR O N G PA SSW O R D R EC O M M EN D ED – W e hi g h l y recom m en d y ou create a stron g passw ord of y our ow n choosi n g (usi n g a mi n i m u m of 8 ch aracters, i n cl ud i n g up p er ca s e l etters, l o w er ca s e l etters, nu m b ers, a n d... - Page 23 N etw ork TurretC am era ·Quick Start Guide Get the SADP so ware from the supplied disk or the o cial website, and install the SADP according to the prompts. Follow the steps to activate the camera, please refer to the User Manual of Network Camera for other two ac va on methods.
-
Page 24: Modifying The Ip Address
N etw ork TurretC am era ·Quick Start Guide STR O N G PA SSW O R D REC O M M EN D ED– W e hi g h l y recom m en d y ou create a stron g passw ord of y our ow n choosi n g (usi n g a mi n i m u m of 8 ch aracters, i n cl ud i n g up p er ca s e l etters, l o w er ca s e l etters, nu m b ers, a n d sp eci al ch aracters) i n ord er to i n crease th e securi ty of... - Page 25 N etw ork Turret C am era ·Quick Start Guide Step s: 1. Run the SADP so ware. 2. Select an ac vate device. 3. Change the device IP address to the same subnet with your computer by either modifying the IP address manually or checking the checkbox of Enable DHCP.
- Page 26 N etw ork TurretC am era ·Quick Start Guide 4. Input the admin password and click M od i fy to ac vate your IP address modi ca on. The batch IP address modi ca on is supported by the SADP. Please refer to the User Manual of SADP for details.
-
Page 27: Ccessi N G Via W Eb B Row Ser
N etw ork Turret C am era ·Quick Start Guide 4 A ccessi n g via W eb B row ser System Req u i rem ent: Opera ng System: Microso Windows XP SP1 and above version CPU: 2.0 GHz or higher RAM: 1G or higher Display: 1024×768 resolu on or higher Web Browser: Internet Explorer 8.0 and above version, Apple Safari... - Page 28 N etw ork TurretC am era ·Quick Start Guide 4. Click Log i n . Figure 4-1 Login Interface 5. Install the plug-in before viewing the live video and managing the camera. Please follow the installa on prompts to install the plug-in.
-
Page 29: Quick Operation Guide (German Version)
Turret...
