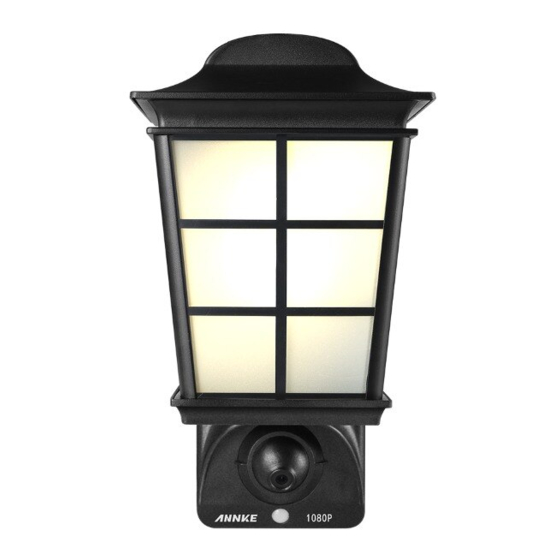

annke I41CL User Manual

Smart security light
Hide thumbs Also See for I41CL:
Table of Contents

Advertisement

Quick Links

Download this manual
Smart Security Light
w w w . a n n k e . c o m

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the I41CL and is the answer not in the manual?

Questions and answers

Related Manuals for annke I41CL

Summary of Contents for annke I41CL

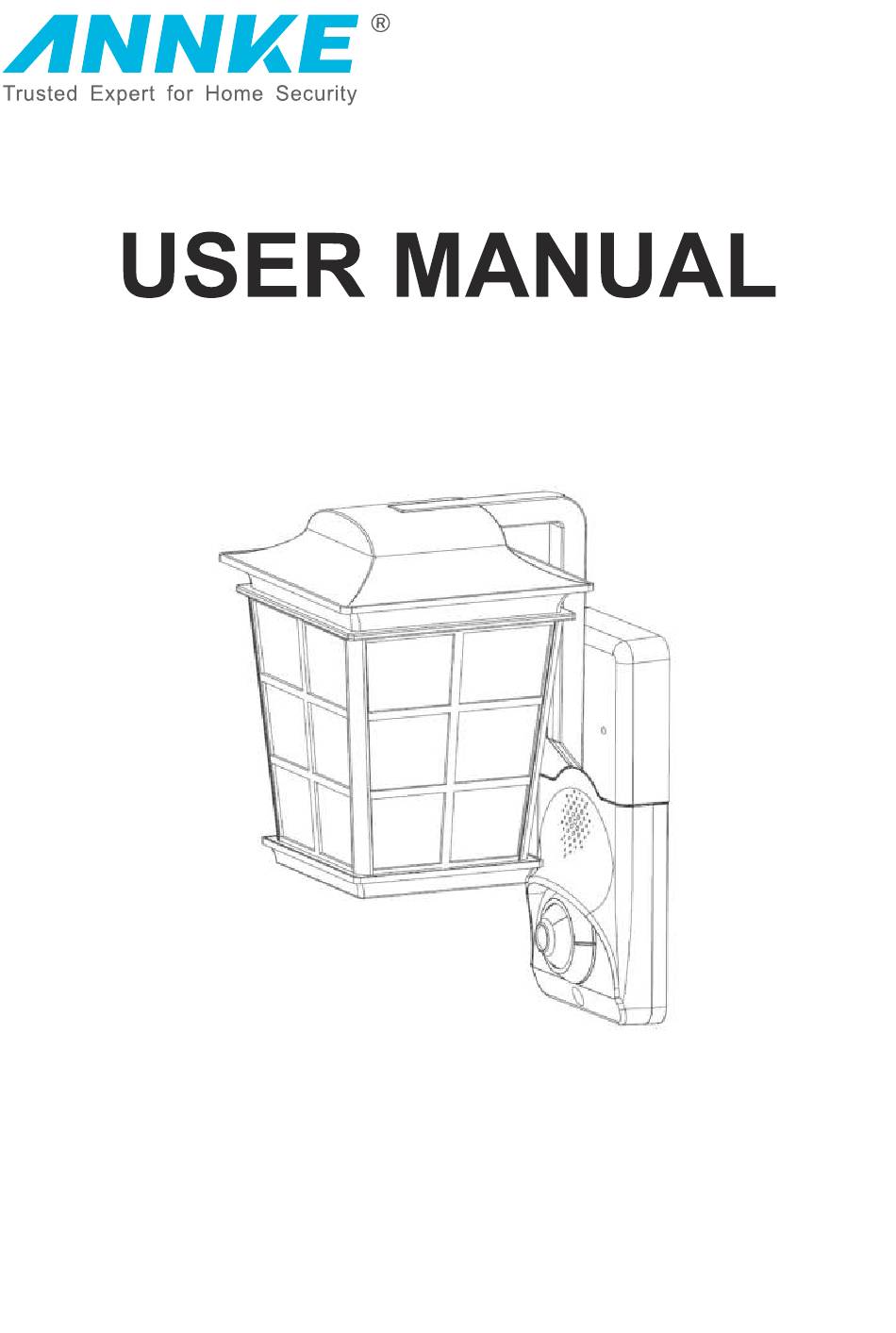

  • Page 1 Smart Security Light w w w . a n n k e . c o m...

  • Page 2: Safety Regulation

    Safety Regulation FCC Requirement This equipment conforms to the fifteenth article of Federal Communication Commission. Operation FCC regulation: according to the fifteenth article of Federal Communications Commission, this equipment passed the tests. It also meets with A class digital equipment standard. When equipment operates under the business circumstance, this regulation is designed to provide reasonable protection and to prevent harmful interference.

  • Page 3: Safety Instruction

    Safety Instruction This statement is to ensure users’ proper operation of products in case of danger or property loss. Please be aware of fire danger and shock hazard. The working voltage of this smart safety light is 120V(for US) / 240V(for EU). While install, please be aware of the electric system of this light.

  • Page 4: Installation Instruction

    Description Quantity Smart Safety Light Bulb Cross Plate Hook Adjustable Holder Cup Head Screw Decorative fixture nut Wiring Cap Installation Instruction ( for U.S. regulations ) 1.Cut off the power 2.Install cross plate to junction box. 3.Adjust cross plate to make it horizontal, 4.Use adjustable holder, adjust the fasten the cap head screws.
  • Page 5 Supply ground wire Fixture ground wire Black (Hot) Supply Wire White (Neutral) Supply Wire Black Fixture Wire White Fixture Wire 5. Use hook, one hook the Smart Safety 6.Connect the corresponding wire and bare Light, one fixed on the Cross Plate copper wire with wiring cap, make sure to screws.
  • Page 6 Accessories Instructions ( for European regulations ) Description Quantity Smart Safety Light Bulb Base Tapping Screw Expansion Tube Decorative fixture nut Terminal Round head screw Hook...
  • Page 7 Installation Instruction ( for European regulations ) Base Installation Thread the round-headed screw through the hole Tighten the nut Step 1 Step 2 Step 3 Product Installation 1.Cut off the power 2.Selected two symmetry points 3 Drilling two holes, bury the in the base U-shaped slot expansion tube arbitrarily , and mark...

  • Page 8: App Installation

    8.Turn the power on. 9.Debugging. APP Installation Step 1: Download and install 'Annke Light' APP from APP Store or Google Play. Step 2: Click “Annke Light” open. Step 3: Sign up with e-mail address. Step 4: Log in with e-mail address and password.

  • Page 9: Wifi Connection

    WiFi Connection: Step 1: Click “add camera” Step 2: Click “add by WIFI” Step 3: Configure WIFI, input the password. Step 4: Use needle push the “SET” button for one second to reset. Step 5: Enter device name and click scan QR code. Step 6: Scan QR code.
  • Page 10 Click “NEXT”, APP will search When LED light turns green, After connection, the device automatically until it means connection is monitor view is live. connection completed. Wireless Connection (QR connection) Step 1: Click “add camera” Step 2: Click “add by WIFI” Step 3: Configure WIFI, input the password.
  • Page 11 Use needle push the “SET” Enter device name and Scan QR code. button for one second to reset. click scan QR code. Put QR code in front of the When LED light turns green, After connection, the camera within 5-10 cm. If the scan was it means connection is monitor view is live.

  • Page 12: Network Cable Connection

    Network Cable Connection: Step 1: Click “add camera” Step 2: Click “add by network cable” Step 3: Enter device name and click scan QR code. Step 4: Scan QR code. Step 5: After scanning, APP will search device automatically until connection, Step 6: After connection, the monitor view is live.
  • Page 13 Wireless Connection (add share with friends) Step 1: Click “add camera” Step 2: Enter device name and click scan QR code. Step 3: Click “add share with friends” Step 4: Scan QR code. Step 5: After connection, the monitor view is live. Click “add camera”...

  • Page 14: Software Reset

    Software Reset Step 1: Log into the APP, click connected device, enter into device preview image, tap enter setting screen Step 2: Tap Reset (The bulb will turn on, and you will hear “Ding Ding Ding” sound, finally the Led will turn to red and flashes) Step 3: Reset successfully.

  • Page 15: Need Help

    Periodic cleaning may be required. Use a damp cloth only. Do not use harsh cleaners or aerosol cleaners. Support Need Help? Visit our official website to get more support. Go to www.annke.com and search your device model number. Click product in the search list to download what you need.
