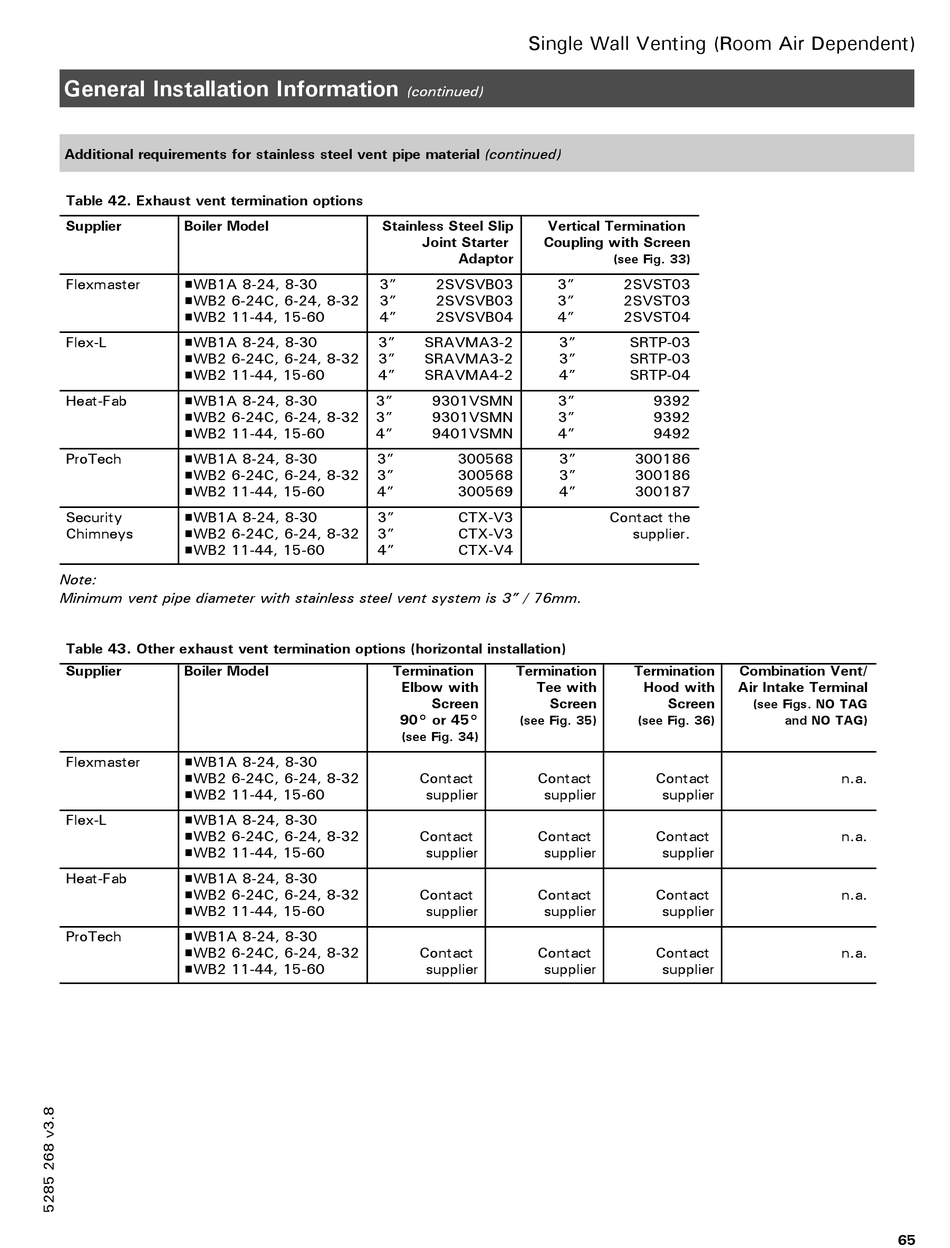

Viessmann Vitodens 100-W WB1A-24 Installation Instructions Manual page 65

General Installation Information
Additional requirements for stainless steel vent pipe material (continued)
Table 42. Exhaust vent termination options
Supplier Boiler Model
Flexmaster HWB1A 8-24, 8-30
HWB2 6-24C, 6-24, 8-32
HWB2 11-44, 15-60
Flex-L HWB1A 8-24, 8-30
HWB2 6-24C, 6-24, 8-32
HWB2 11-44, 15-60
Heat-Fab HWB1A 8-24, 8-30
HWB2 6-24C, 6-24, 8-32
HWB2 11-44, 15-60
ProTech HWB1A 8-24, 8-30
HWB2 6-24C, 6-24, 8-32
HWB2 11-44, 15-60
Security HWB1A 8-24, 8-30
Chimneys HWB2 6-24C, 6-24, 8-32
HWB2 11-44, 15-60
Note:
Minimum vent pipe diameter with stainless steel vent system is 3" / 76mm.
Table 43. Other exhaust vent termination options (horizontal installation)
Supplier Boiler Model
Flexmaster HWB1A 8-24, 8-30
HWB2 6-24C, 6-24, 8-32
HWB2 11-44, 15-60
Flex-L HWB1A 8-24, 8-30
HWB2 6-24C, 6-24, 8-32
HWB2 11-44, 15-60
Heat-Fab HWB1A 8-24, 8-30
HWB2 6-24C, 6-24, 8-32
HWB2 11-44, 15-60
ProTech HWB1A 8-24, 8-30
HWB2 6-24C, 6-24, 8-32
HWB2 11-44, 15-60
Single Wall Venting (Room Air Dependent)
(continued)
Stainless Steel Slip Vertical Termination
Joint Starter Coupling with Screen
Adaptor
3" 2SVSVB03
3" 2SVSVB03
4" 2SVSVB04
3" SRAVMA3-2
3" SRAVMA3-2
4" SRAVMA4-2
3" 9301VSMN
3" 9301VSMN
4" 9401VSMN
3" 300568
3" 300568
4" 300569
3" CTX-V3
3" CTX-V3
4" CTX-V4
Termination Termination
Elbow with Tee with
Screen Screen
90° or 45°
(see Fig. 35)
(see Fig. 34)
Contact Contact
supplier supplier
Contact Contact
supplier supplier
Contact Contact
supplier supplier
Contact Contact
supplier supplier
(see Fig. 33)
3" 2SVST03
3" 2SVST03
4" 2SVST04
3" SRTP-03
3" SRTP-03
4" SRTP-04
3" 9392
3" 9392
4" 9492
3" 300186
3" 300186
4" 300187
Contact the
supplier.
Termination
Hood with
Screen
(see Fig. 36)
Contact
supplier
Contact
supplier
Contact
supplier
Contact
supplier
Combination Vent/
Air Intake Terminal
(see Figs. NO TAG
and NO TAG)
n.a.
n.a.
n.a.
n.a.
