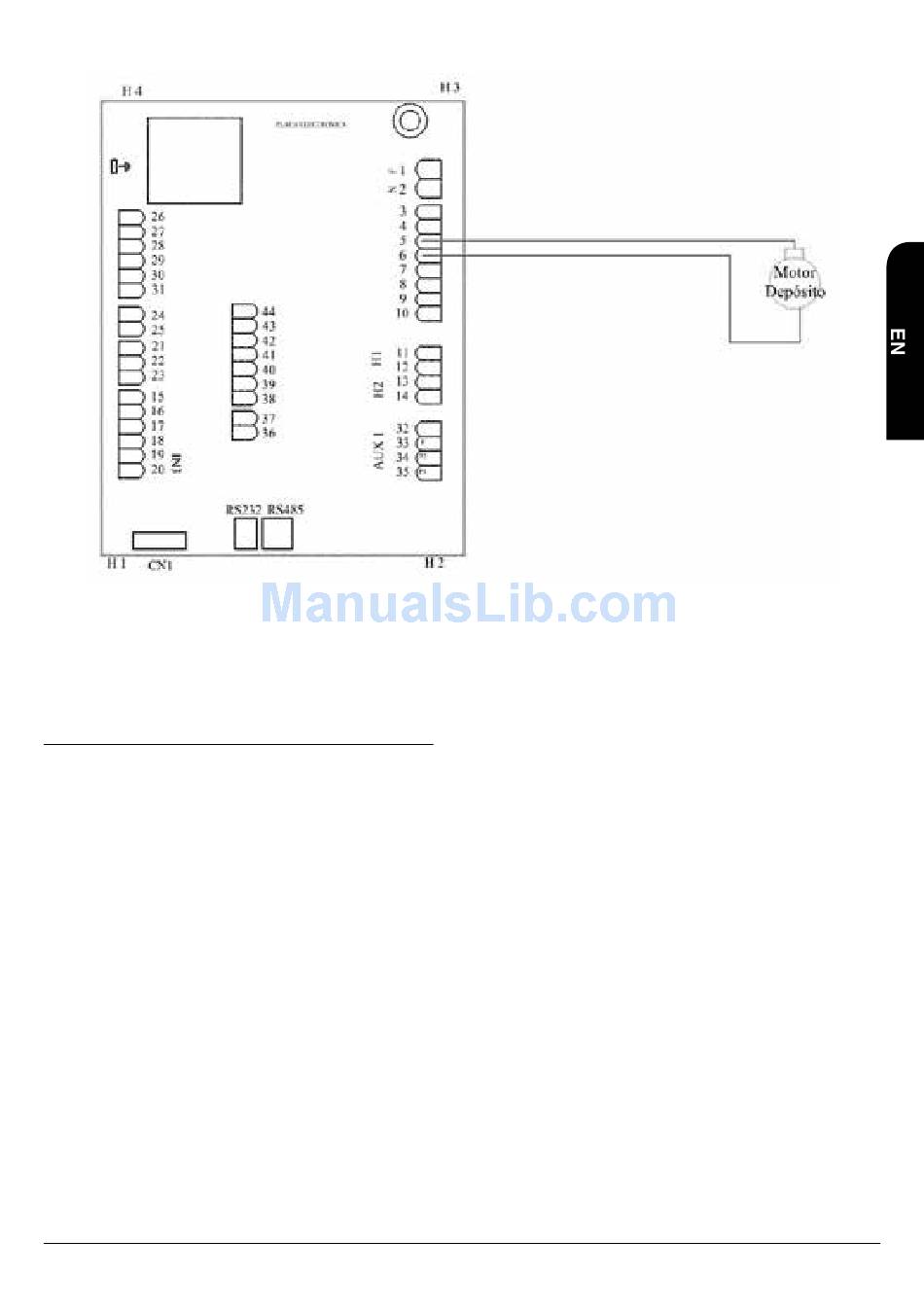

Connection scheme to the electronic board of Hydrotex models.
Once the electrical connection is made in the technical menu, you will have to modify the following parameters.
P36 = 2 (modifications)
T23= 600 (time)
T24 = 2400 (time)
6. SAFETY RULES DURING INSTALLATION
The way of installing the boiler will affect the safety and the proper operation. For this reason, it is essential that the installation is carried out
by qualified installers who are trained to make an installation compliant with local safety and installation regulations.
European, national, regional, provincial and municipal regulations.
Flue installations or smoke evacuation systems T must be controlled before the installation with respect to the following:
• Prohibitions relating to the installation.
• Legal distances.
• Limits established by the local administration rules or generals provisions of the relevant authorities.
• Conventional limits derived from the owner's community rules or contracts.
Overall, the installation must comply with all the regulation applicable according to local, national and European laws.
If your equipment is not properly installed, it may cause serious damage.
Before the installation, carry out the next series of checks:
• Make sure that the floor can sustain the weight of the equipment and make a proper thermal isolation in the case that the floor is made
of flammable material (wood) or a material that can be affected by a thermal shock (plaster , for example).
If the equipment is installed on a floor which is not completely refractory or inflammable such as parquet, carpet, etc, it is necessary
to replace this part or introduce a fire-resistant base so that it protrudes beyond the front of the boiler 30 cm. Example of materials
include steel flooring, glass base or any other type of fire-resistant material.
• Make sure that there is proper ventilation in the place where it is installed (air intake).
• Avoid the installation in places where there are collective ventilation pipes, hoods with or without extractor, B type gas equipments,
heat pumps or equipments that can influence the flue draught The chimney draw may not be good if they are used at the same time.
• Make sure that the smoke duct and the pipes used for the chimney are suitable for the operation of the boiler.
• Make sure that all the equipments have their own smoke duct. Do not use the same duct for several equipments.
• We recommend that you call your fitter in order to check both the chimney as well as the air flow for the combustion.
6.1. SAFETY MEASURES
This boiler must only be used for its intended purpose. We can accept no liability for damage that occurs either directly or indirectly from the
use of this equipment to people, animals or things caused by an incorrect installation, adjustments and maintenance or the inappropriate use
of the equipment.
As explained at the beginning of this manual, the installation of this boiler must be done by qualified staff for this kind of installation. Overall,
the installation must comply with all the regulations according to local, national and European laws. In any case, we describe the following
requirements to take into account when installing the boiler:
